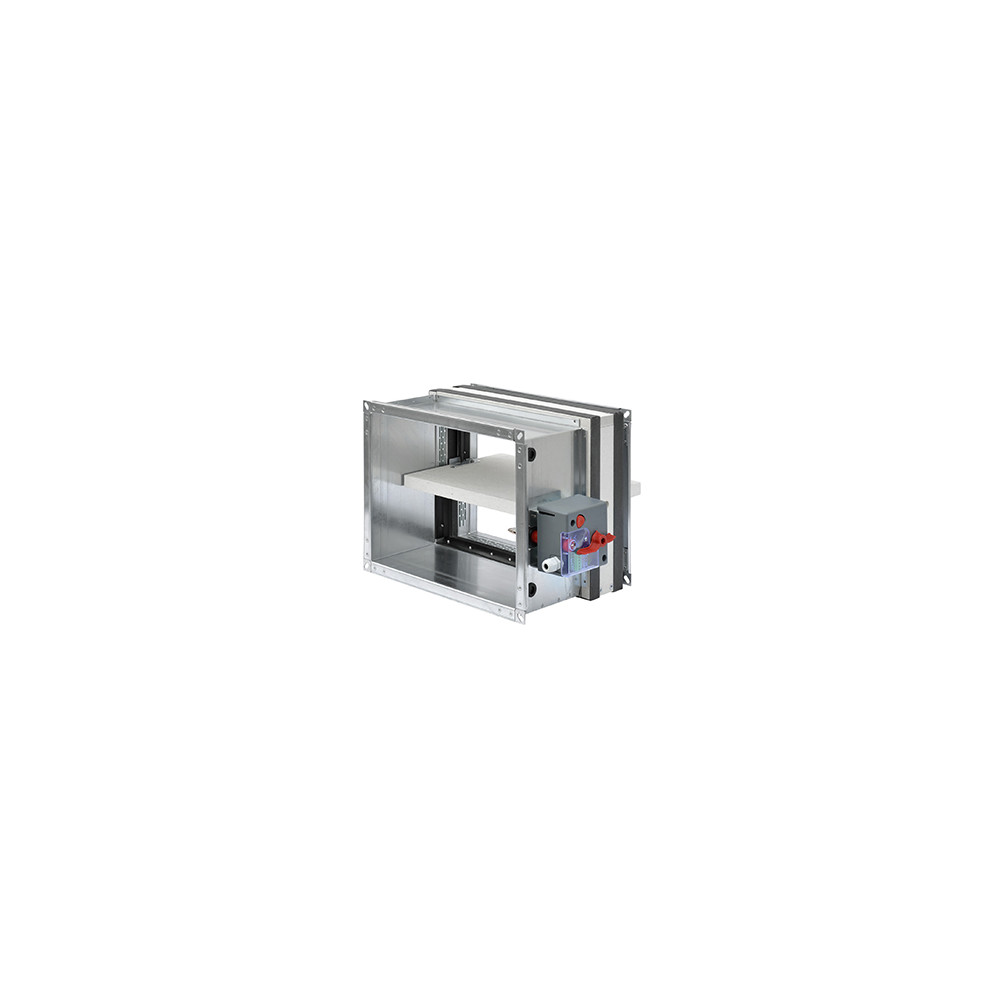

MDF25

CHARACTERISTICS:

Fire dampers marked CE certified UNI EN 15650, UNI EN 13501-3 classified and tested according to UNI EN 1366/2. Installable on ventilation ducts ensure a rapid interruption of the air flow in case of fire. Moved with electromagnet or manual reset thermal fuse.

CONSTRUCTION:

Casing in galvanized steel with intermediate thermal cut. Blade in calcium silicate moved on pivots steel rotation housed on brass bushings. Provided with outer flange for connection to ducts have thermal release device calibrated standard at 72 ° C.

DETAILS:

Operating conditions: Clean air, maximum air speed 10 m/s.

Media filtrante

TEST

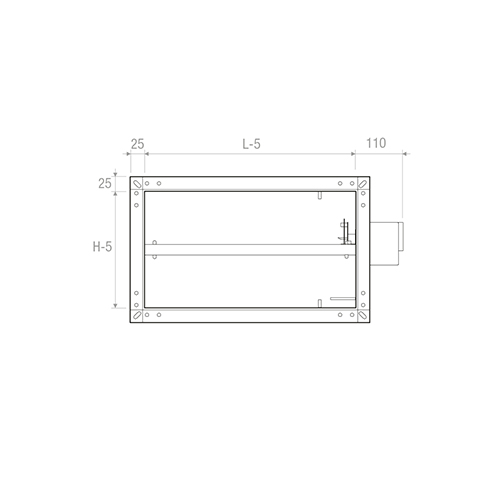

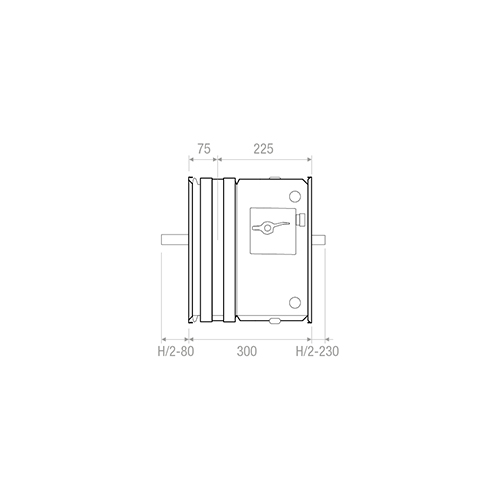

Dimensions

MDF25

PLENUM PDZI1

Plenum isolato esternamente spessore 6 mm

Accessories and configurations

PLENUM PDZI1 / PDZI2

Plenum isolato esternamente spessore 6 mm

PLENUM PDZI1 / PDZI2 222

Plenum isolato esternamente spessore 6 mm 222

PDZI2

Plenum isolato esternamente spessore 6 mm

Instructions

Test istruzione a caso

Descrizione a caso

Specifications text

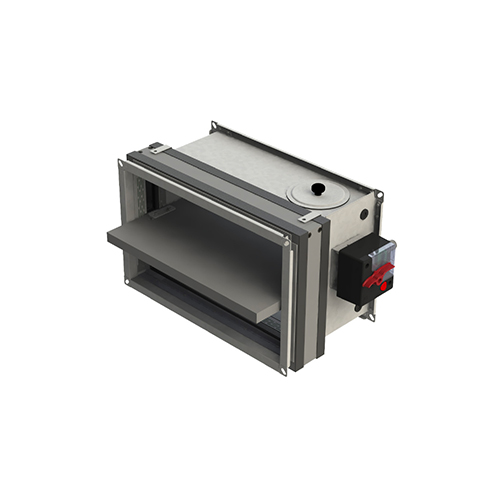

RECTANGULAR FIRE DAMPER CE MARKED AND UNI EN 15650 CERTIFIED

FEATURES:
Damper that can be installed on ventilation ducts, ensuring rapid interruption of the air flow in the event of fire. Operated with electromagnet or thermal fuse with mechanical reset. Classification according to UNI EN 13501-3 and tested according to UNI EN 1366/2.
CONSTRUCTION:
Galvanised steel casing with intermediate thermal cut. Calcium silicate blade moved on steel rotary pins housed on brass bushings. Equipped with an external flange for connection to the ducts and a thermal release device calibrated as standard at 72 °C. (optional 95°)
OPERATING CONDITIONS:
Clean air, maximum speed 10 m/s.

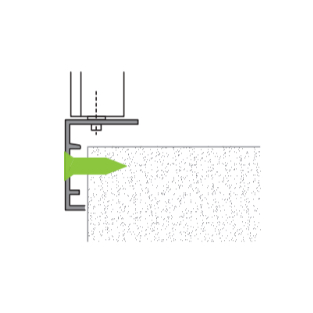

QUICK INSTALLATION
MODEL: MDF25
SIZES: *****
CLASSIFICATION: EI120S for wall installation
