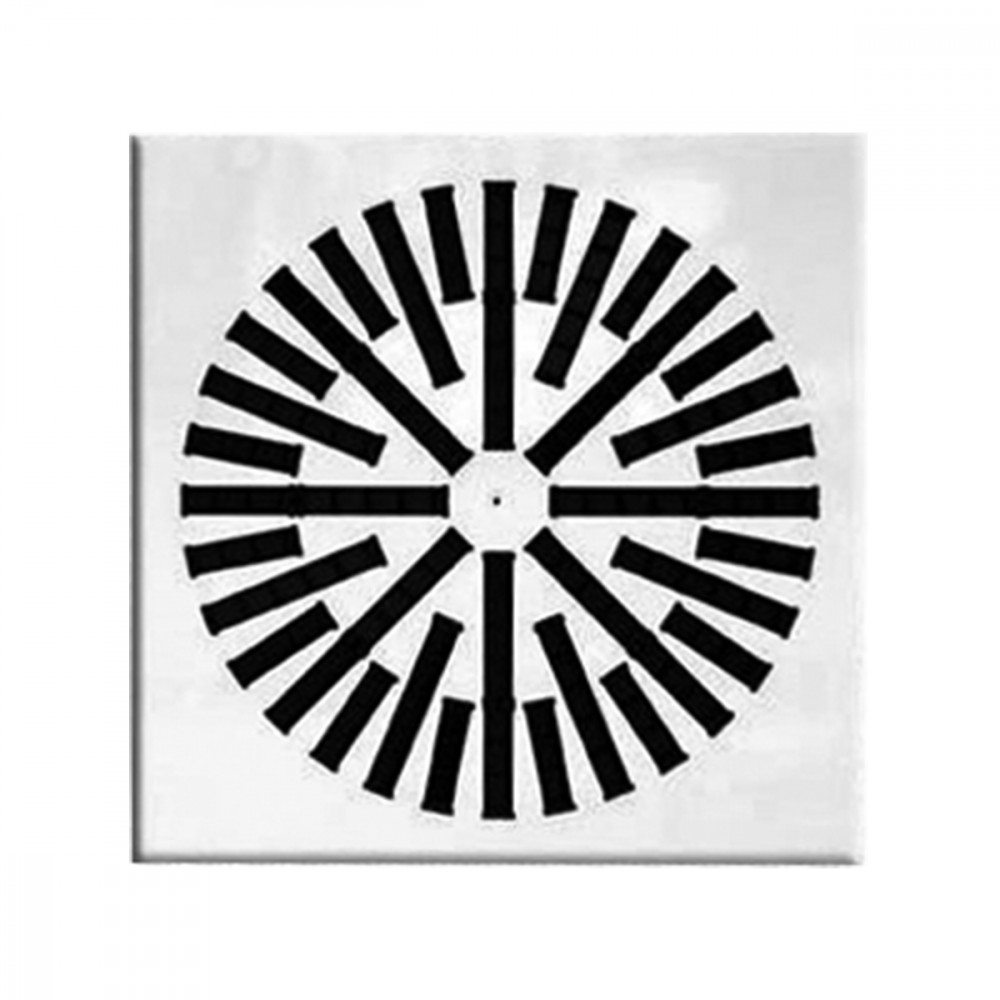

BQE1
CHARACTERISTICS:
Swirl diffusers with adjustable throws CONSTRUCTION:
RAL 9010 white painted steel, deflection blades are made of polypropylene RAL 9005 black. UTILIZATION:
For ceiling installation and for air intake (without deflectors) and delivery.
Installation height: 2,5 – 4,1 m.
FIXING:
Fixing by using lateral screws or central screw on mounting bridge. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet, calibration damper and mounting bridge. Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
P [m3/h] |
LWA [dB(A)] |
X(0,20) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
BQE1QRR 310 |
0,0128 |
130 |
290 |
24 |
41 |
1,3 |
2,9 |
10 |
50 |
|
BQE1QRR 400 |
0,0223 |
230 |
490 |
24 |
41 |
1,8 |
3,8 |
10 |
50 |
|
BQE1QRR 500 |
0,0361 |
360 |
800 |
24 |
41 |
2,2 |
4,8 |
10 |
50 |
|
BQE1QRR 600 |
0,0536 |
540 |
1180 |
24 |
41 |
2,7 |
5,8 |
10 |
50 |
|
BQE1QRR 625 |
0,0536 |
540 |
1180 |
24 |
41 |
2,7 |
5,8 |
10 |
50 |
|
BQE1QRR 825 |
0,1081 |
1080 |
2360 |
24 |
40 |
3,8 |
8,2 |
10 |
50 |
|
BQE1QQ 310 |
0,0185 |
270 |
530 |
30 |
50 |
2,3 |
4,5 |
10 |
50 |
|
BQE1QQ 400 |
0,0315 |
460 |
890 |
30 |
49 |
3 |
5,7 |
10 |
50 |
|
BQE1QQ 500 |
0,0500 |
720 |
1390 |
30 |
49 |
3,7 |
7,1 |
10 |
50 |
|
BQE1QQ 600 |
0,0729 |
1040 |
2010 |
30 |
48 |
4,4 |
8,5 |
10 |
50 |
|
BQE1QQ 625 |
0,0729 |
1040 |
2010 |
30 |
48 |
4,4 |
8,5 |
10 |
50 |
|
BQE1QQ 800 |
0,1425 |
1990 |
3850 |
29 |
48 |
6 |
11,7 |
10 |
50 |
Accessories and configurations
PQZ1
PQZ2
PQZI1
Plenum externally insulated thickness 6 mm
PQZI2
Plenum externally insulated thickness 6 mm
PLENUMPDC
1= Optional damper
3= Fixing bridge
PLENUMPDCI
1= Optional damper
2= Insulation
3= Fixing bridge
PLENUMBQE1RR
Galvanized plenum
Instructions
ASSEMBLY DETAIL
ASSEMBLY DETAIL
1= Fixing bridge
Specifications text
DIFFUSER IN RAL 9010 GALVANISED STEEL WITH HELICAL FLOW WITH ADJUSTABLE DEFLECTORS
CONSTRUCTION:
White painted steel RAL 9010 with deflectors in black polypropylene RAL 9005.
USE:
Ceiling, for air supply and return (without deflectors). Installation height:2.5 - 4.1 m
INSTALLATION:
Fixing with lateral screws or by central screw on the mounting bridge.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid, control damper and mounting bridge.
MODEL: *****
SIZES: *** mm
