DIFFUSERS

BQFP60

CHARACTERISTICS:

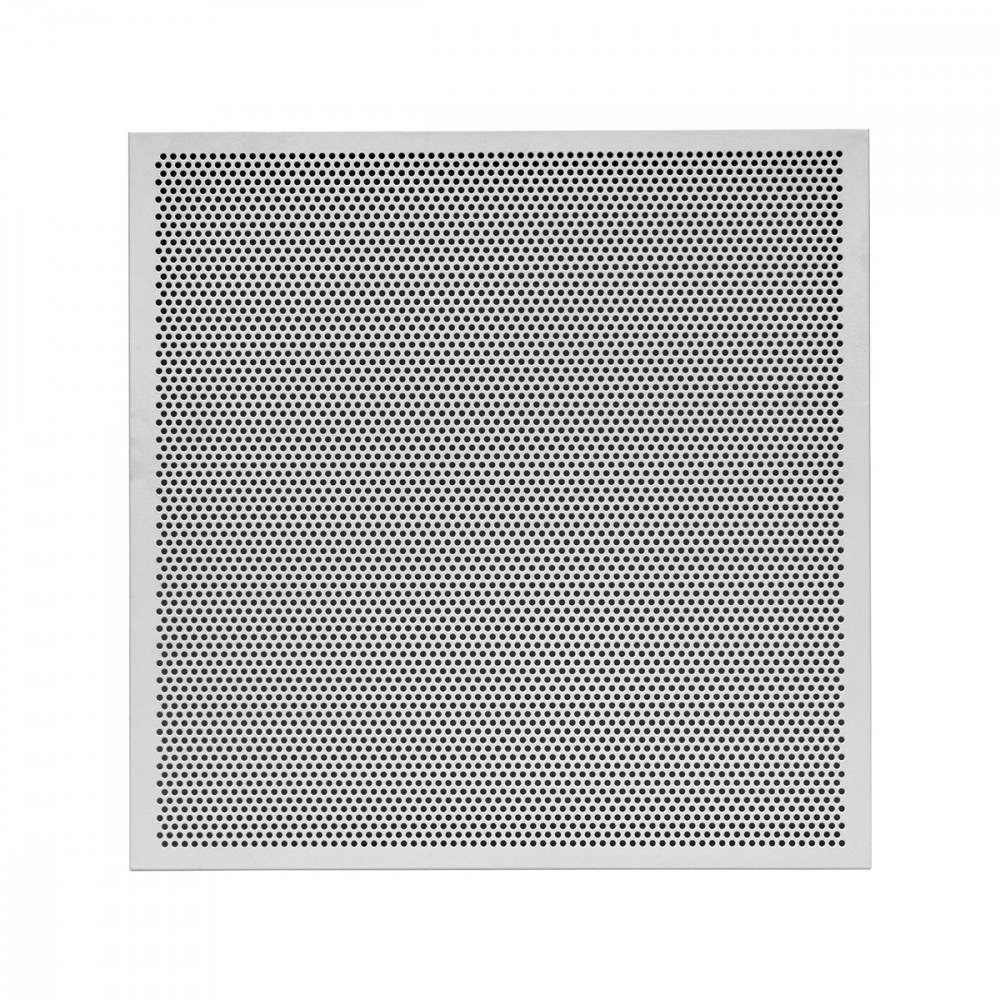

Perfored face square diffusers without frame.
CONSTRUCTION:
Perfored sheet steel painted white RAL 9010.
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 4,0 m.
FIXING:
Fixing by lateral screws on the plenum.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated.
Dimensions
CHOICE AND SIZING

Mod.

Q [m3/h]

LWA [dB(A)]

X(0,20) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

BQFP60MS 160

180

410

-

48

1,1

3,4

10

50

BQFP60MS 200

240

540

-

46

1,6

5,1

10

50

BQFP60MS 250

320

720

-

44

2,4

7,7

10

50

BQFP60MS 315

430

970

-

43

3,7

11,8

10

50

BQFP60ML 160

180

410

-

52

1,1

3,4

10

50

BQFP60ML 200

240

540

-

50

1,6

5,1

10

50

BQFP60ML 250

320

720

-

48

2,4

7,7

10

50

BQFP60ML 315

430

970

-

47

3,7

11,8

10

50

Accessories and configurations

PQZ1

PQZ2

BQFP60MS

BQFP60ML

BQFP60

Air flow configuration

BQFP60R: Return / no deflectors

BQFP60MS: Supply / deflectors / top spigot

BQFP60ML: Supply / deflectors / side spigot


Specifications text

SQUARE GALVANISED STEEL DIFFUSER RAL9010 PERFORATED WITHOUT FRAME.EXTERNAL DIMENSION 595X595 MM
CONSTRUCTION:
Perforated sheet in white painted steel RAL 9010.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 4.0 m
INSTALLATION:
Fixing with side screws on the plenum.
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
MODEL: BQFP60
SIZES:595 x 595 mm.
