AQC
1=Plasterboard panel 2= Detail support plasterboard NOTE: Central part not supplied
PDZ1
Products
DIFFUSERS
AQC
CHARACTERISTICS:

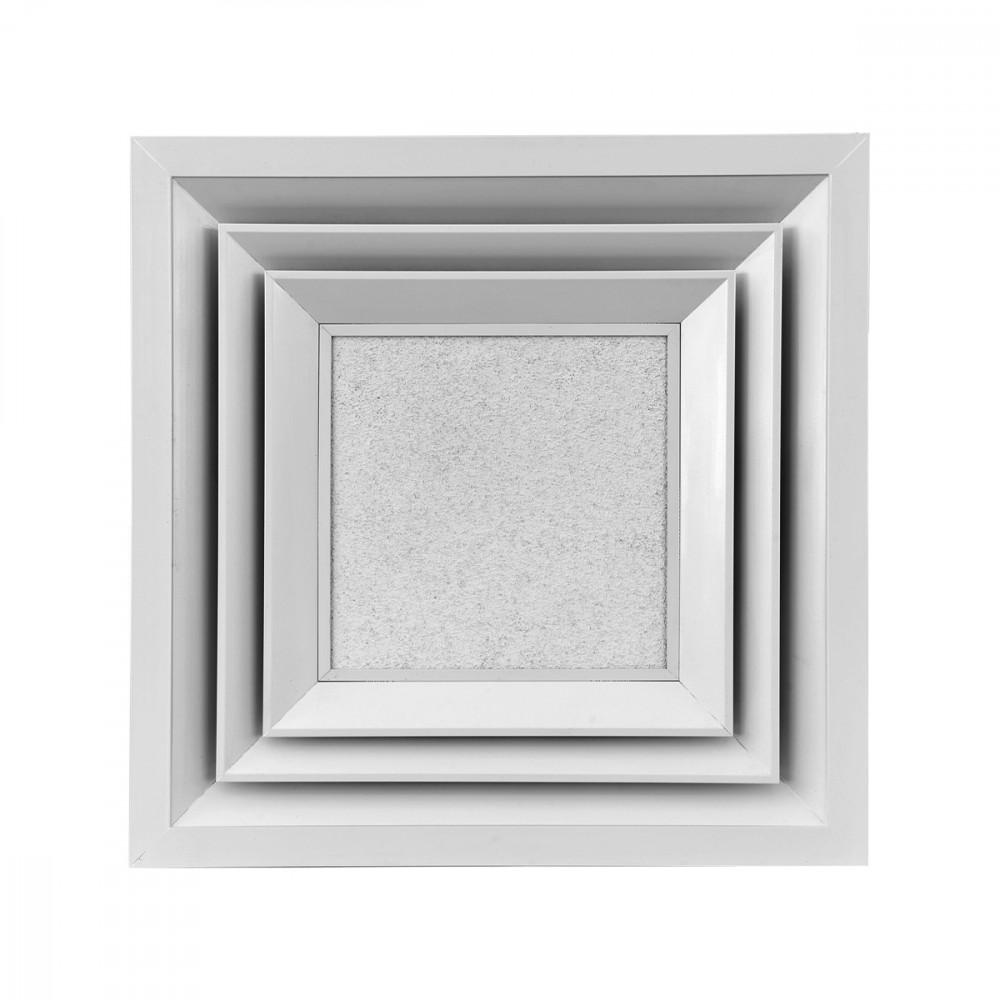

Multidirection diffuser with 4 ways with matched central panel. CONSTRUCTION:
Aluminium painted RAL 9010. UTILIZATION:
For modular false-ceiling installation.
Installation height: 2,5 – 3,1m.
FIXING:

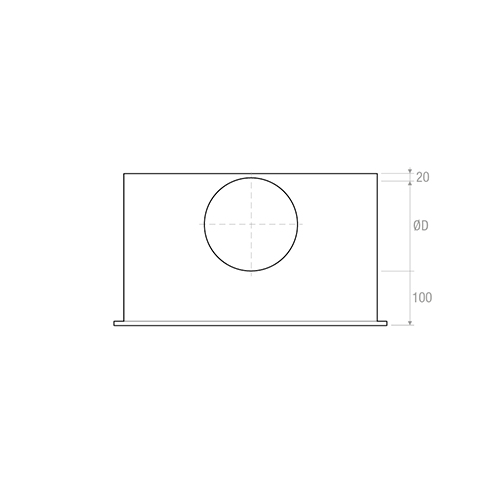

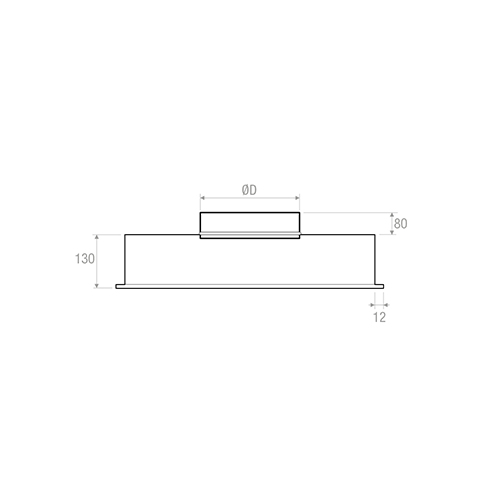

Fixing on false-ceiling. Dimensions
1=Plasterboard panel 2= Detail support plasterboard NOTE: Central part not supplied
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
N. way |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
|||
|
AQC 1F |
0,0438 |
4 |
410 |
920 |
< 20 |
43 |
1,26 |
6,29 |
10 |
50 |
|
AQC 2F |
0,0542 |
4 |
540 |
1200 |
< 20 |
41 |
1,22 |
6,1 |
10 |
50 |
|
AQC 3F |
0,0631 |
4 |
650 |
1460 |
< 20 |
39 |
1,19 |
5,97 |
10 |
50 |
|
AQC 4F |
0,0698 |
4 |
740 |
1660 |
< 20 |
38 |
1,18 |
5,88 |
10 |
50 |
Specifications text
MULTIDIRECTIONAL 4-WAY ALUMINIUM DIFFUSER RAL 9010 WITH MATCHED CENTRAL PART
CONSTRUCTION:
RAL 9010 painted aluminium
USE:
Modular false-ceiling installation. Installation height:2.5 - 3.1 m
INSTALLATION:
Fixing to false ceiling.
MODEL: AQC
SIZES: *** x *** mm.
