DIFFUSERS

DLFL

CHARACTERISTICS:

Linear single slot diffusers with deflector, without frame for hidden installation, for wall or ceiling installation.

CONSTRUCTION:

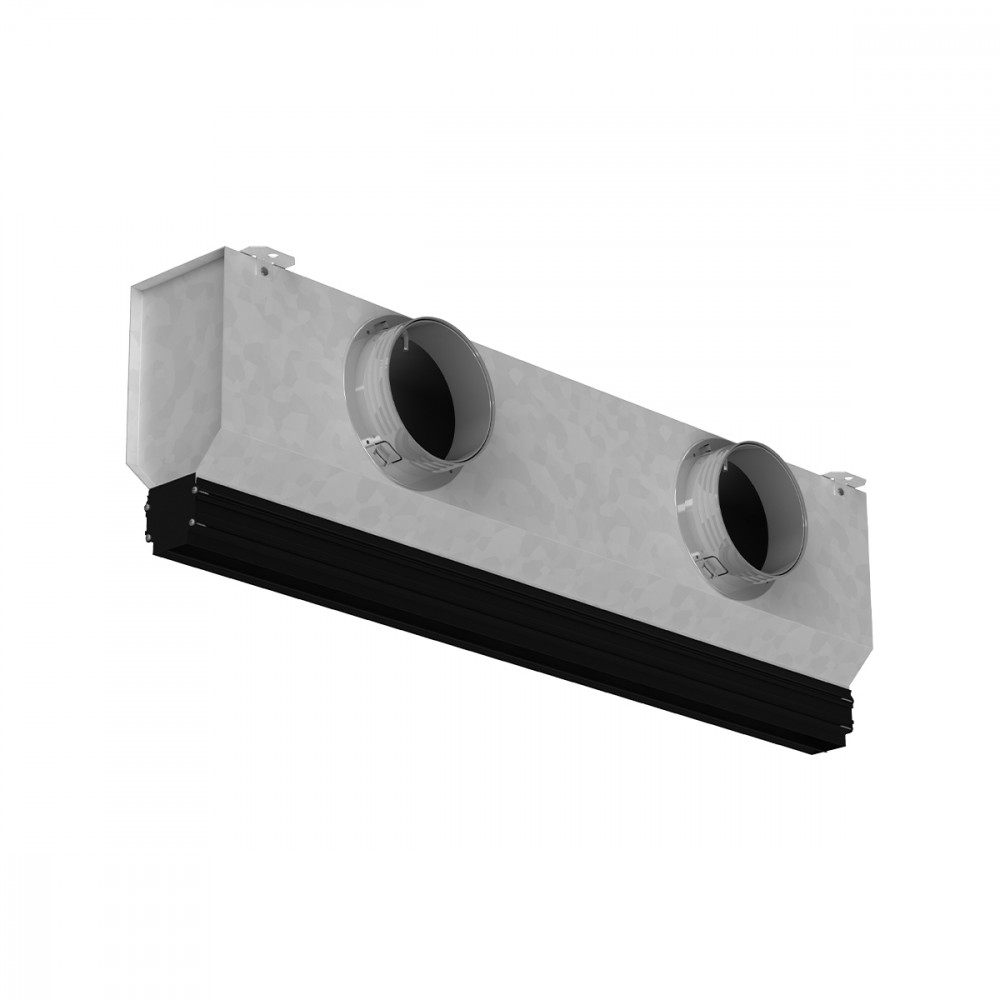

Extruded anodised aluminum diffuser painted RAL 9005 with plastic deflector RAL 9005. Plenum box in galvanized steel with circular connection in plastic material and optional external insulation in polyethylene sp. 6 mm.

UTILIZATION:

Ceiling or wall installation for air supply and return. Possibility of frontal throw and lateral throw with Coanda effect.

FIXING:

Bracketing on the wall or floor using brackets placed on the plenum. Support seats of the wall or floor in plasterboard made on the same diffuser.

ACCESSORIES:

Sliding damper. Equalizer.

Dimensions

DLFL10

1= Diffuser

DLFL20

1= Diffuser 2= Deflectors

DLFL30

1= Diffuser 3= Sliding damper

DLFL40

1= Diffuser 2= Deflectors 3= Sliding damper

DLFL

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) [m]		Dpt * [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DLFL 1000	0,01715	125	430	34	48	5,68	15,36	10	50

* without equalizer and calibration damper completely open

Accessories and configurations

DLFL

PLENUM

L= Lenght

N= N. Spigots

Instructions

DLFL

8= Fixing brackets

HORIZONTAL THROW WITH COANDA EFFECT

VERTICAL THROW

CONTINUITY SOLUTION

Clamping point

Insert the bracket into the profile in the direction indicated.

CONTINUITY SOLUTION

Insert the bracket to penetrate up to 10/15 mm the clamping point.

CONTINUITY SOLUTION

Combine the 2 parts.

ACCESSORIES

CC= Kit continuity (2 pieces)

Specifications text

LINEAR DIFFUSER IN ALUMINUM RAL9005 WITH SINGLE SLOT WITH DEFLECTOR, WITHOUT FRAME FOR CONCEALED INSTALLATION WITH COANDA EFFECT

MATERIAL:
Diffuser in extruded anodised aluminium RAL 9005 with anodised aluminium deflector RAL 9005.Plenum in galvanised steel with circular connection in plastic and optional external insulation in polyethylene th.6 mm.
USE:
Ceiling or wall for air supply and return. Possibility of front throw and side throw with Coanda effect
INSTALLATION:
Wall or floor mounting by means of brackets placed on the plenum. Wall or floor support seats in plasterboard obtained on the diffuser itself.
ACCESSORIES:
• Sliding damper.
• Equaliser
MODEL: DLFL**/*** (type-length mm)
