GRILLES

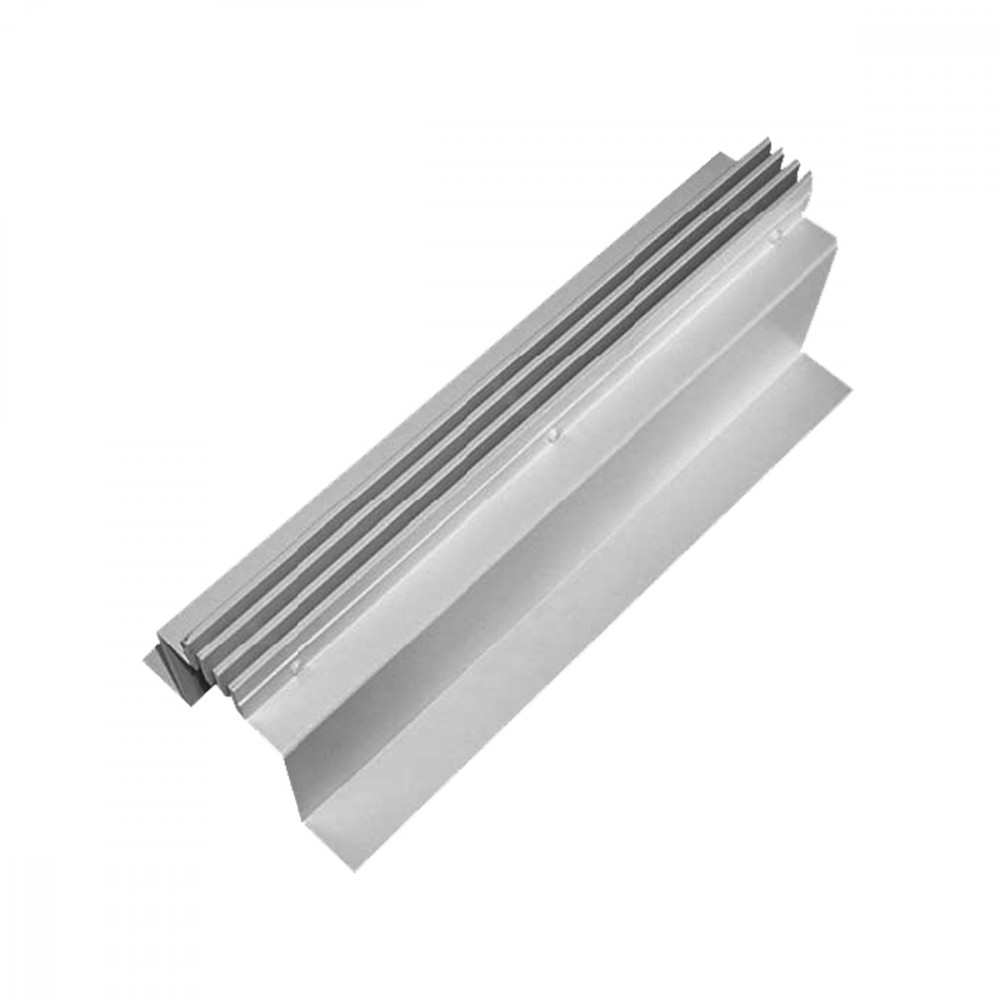

GRPW

CHARACTERISTICS:
Floor slot diffuser.
CONSTRUCTION:
Aluminium.
UTILIZATION:
For floor installation, in swimming pool and rooms with large glass surfaces or curtain walling, for air delivery. They are used to prevent condensation phenomena during heating season.
FIXING:
• Fixing by using screws.
ACCESSORIES:
• On demand.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

GRPW1

0,0063

60

110

21

36

1

2,3

5

20

GRPW2

0,0117

100

210

21

39

1,5

3,7

5

20

GRPW3

0,0172

150

310

24

41

2,1

4,8

5

20

GRPW4

0,0234

210

420

26

43

2,7

5,7

5

20

GRPW5

0,0293

260

520

27

44

3,1

6,4

5

20

GRPW6

0,0358

320

640

28

45

3,5

7,2

5

20

Instructions

INSTALLATION METHOD

1= Glass

2= GRPW

3= Air supply duct



INSTALLATION METHOD

1= Particular fixing diffuser on duct

2= Air duct

3= Section


Specifications text

FLOOR SLOT DIFFUSER

CONSTRUCTION:
Aluminium.
USE:
On the floor, in swimming pools and in spaces with large glass surfaces or curtain walls, for air delivery. They are used to prevent condensation during summer months.
INSTALLATION:
Fixing with screws
ACCESSORIES:
• On request.
MODEL: GRPW*/*** (Model/Length mm)
