DL-XS

CHARACTERISTICS:

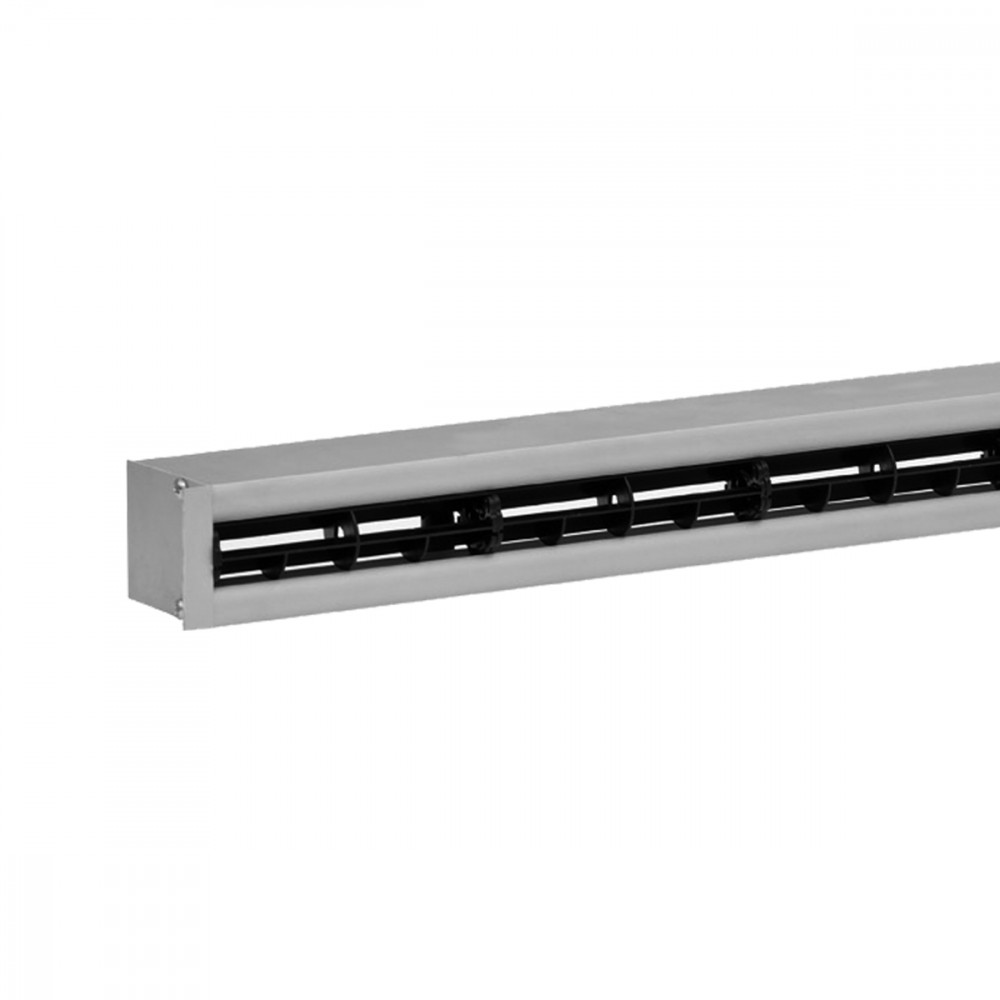

Linear slot diffusers with airfoil section rotating deflector.

CONSTRUCTION:

Anodized extruded aluminium, deflector made of black polypropylene RAL 9005 (version B) or deflector polypropylene white RAL 9003 (W version).

UTILIZATION:

For structural reasons the diffuser is supplied already assembled to the plenum with an airtight system. The assembly is then engaging on the plenum.

Dimensions

DLXS10

DLXS20

DLXS

1= Standard

MISURE

N.*= slots mm= Lenght Ø= spigot N.**= spitos

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DLXS1	0,0062	60	140	-	42	3,3	7,7	10	50
DLXS2	0,0124	120	260	23	44	4,3	9,4	10	50

Accessories and configurations

DLXS

1= Equalizer in perforeted plate

DLXS

1= Equalizer in perforeted plate

Specifications text

ALUMINUM LINEAR SLOT DIFFUSER WITH AERODYNAMIC PROFILE ROTARY POLYPROPYLENE DEFLECTOR, WITHOUT PERIMETER FRAME

CONSTRUCTION:
Extruded anodised aluminium, RAL 9005 black polypropylene deflector (version B) or RAL 9003 white polypropylene deflector (W version).
INSTALLATION: For construction reasons, the diffuser is supplied already assembled to the plenum using an airtight method. Assembly is then done by coupling onto the plenum.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation.
MODEL: DLXS**/***/*** (type-no. slots-length mm)
