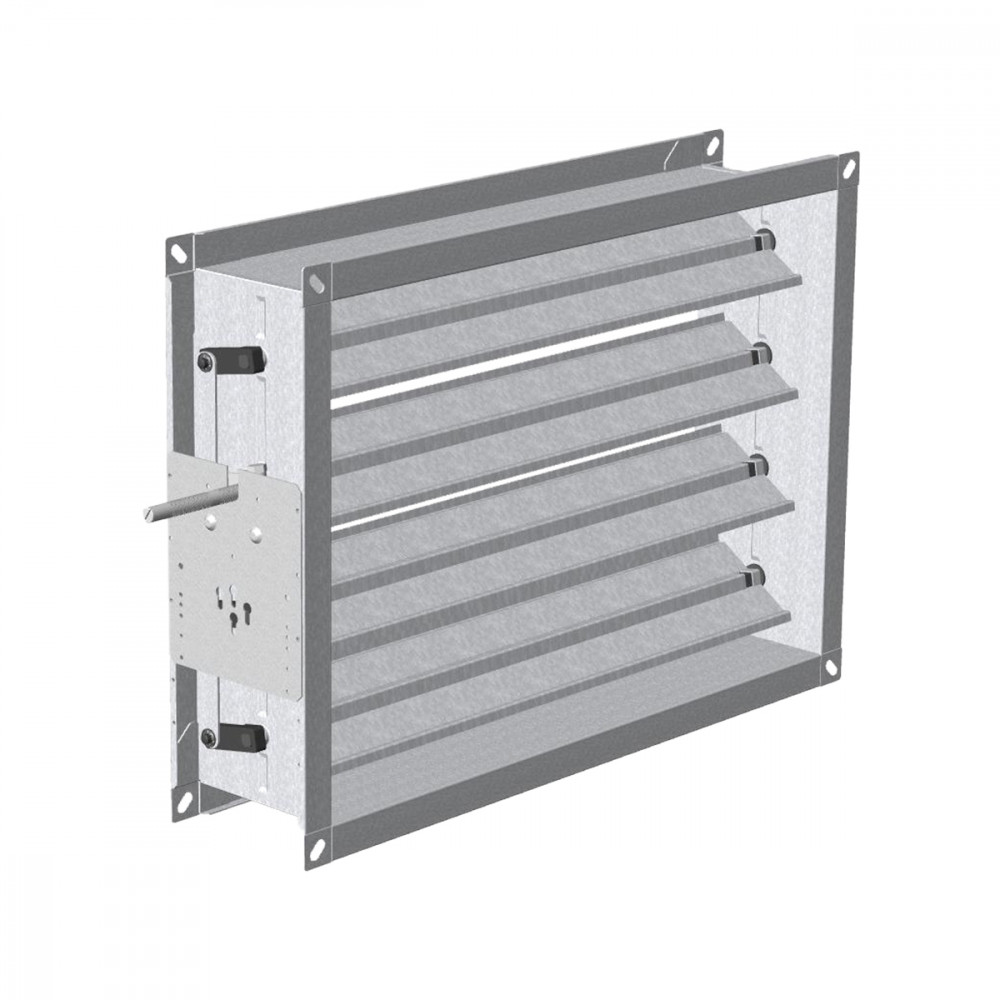

SRC100

CHARACTERISTICS:

Volume control dampers 100 mm pitch.

ARTICLE DESCRIPTION:
SRC100-P: opposed blade damper with pin for servo-motor (standard).
SRC100-C: opposed blade damper with manual control.
SRC100-PP: parallel blade damper with pin for servomotor.
SRC100-PPC:parallel blade damper with manual control.
T10: veneered blades. (price increase +30%)

CONSTRUCTION:

Galvanized steel frame. Galvanized steel blades. Nylon spindles.

FIXING:

By bolts on flanges corners.

DETAILS:

Drive: Counter rotating or parallel movement driven by manual control or servomotor.

Dimensions

SRC100

Hole Ø 9 mm / Pitch 300 mm

SRC100

1= Pitch 100

Accessories and configurations

SRC100

Configuration

Standard blades

T10

Configuration

Veneered blades

SRC100

Configuration

Opposed blades

SRC100P

Configuration

Parallel blades

Instructions

SRC100 (standard)

1) Flanged frame

2) Universal plate

3) Fixing slots

4) Calibration blades

5) Levers and pins nylon PA6

6) Control pin

MANUAL CONTROL

Code: CM10

UNIVERSAL PLATE (STANDARD)

MANUAL CONTROL

SERVOMOTOR

Specifications text

VOLUME CONTROL DAMPER WITH GALVANISED STEEL FRAME AND BLADES, NYLON ROTATION PINS, 100 MM PITCH

OPERATION:
Opposed or parallel movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC100-P: opposed blade damper with pin for servomotor (standard).
• SRC100-C: opposed blade damper with manual control (CM10).
• SRC100-PP: parallel blade dampers with pin for servomotor
• SRC100-PPC: parallel blade damper with manual control (CM10).
• T10: veneered blades (price increase + 30%)
