GMA60SMF

CHARACTERISTICS:

Egg crate grilles 13x13 mm pitch, with removable core for false ceilings 595x595 overall size.

CONSTRUCTION:

Anodized aluminium.

UTILIZATION:

For false ceilings installation and for air intake.

FIXING:

• Fixing by using clips or frontal screws on demand.

ACCESSORIES:

• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.

Dimensions

GMA60SMF

1= Push pull 2= Filter

GMA60SM

1= Push pull

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max
GMA60SM	0,2639	3140	6190	33	53	5	20
GMA60SMF	0,2639	1090	2910	-	31	10	50

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm

PDZI2

Plenum externally insulated thickness 6 mm

Instructions

GMA60SMF

Specifications text

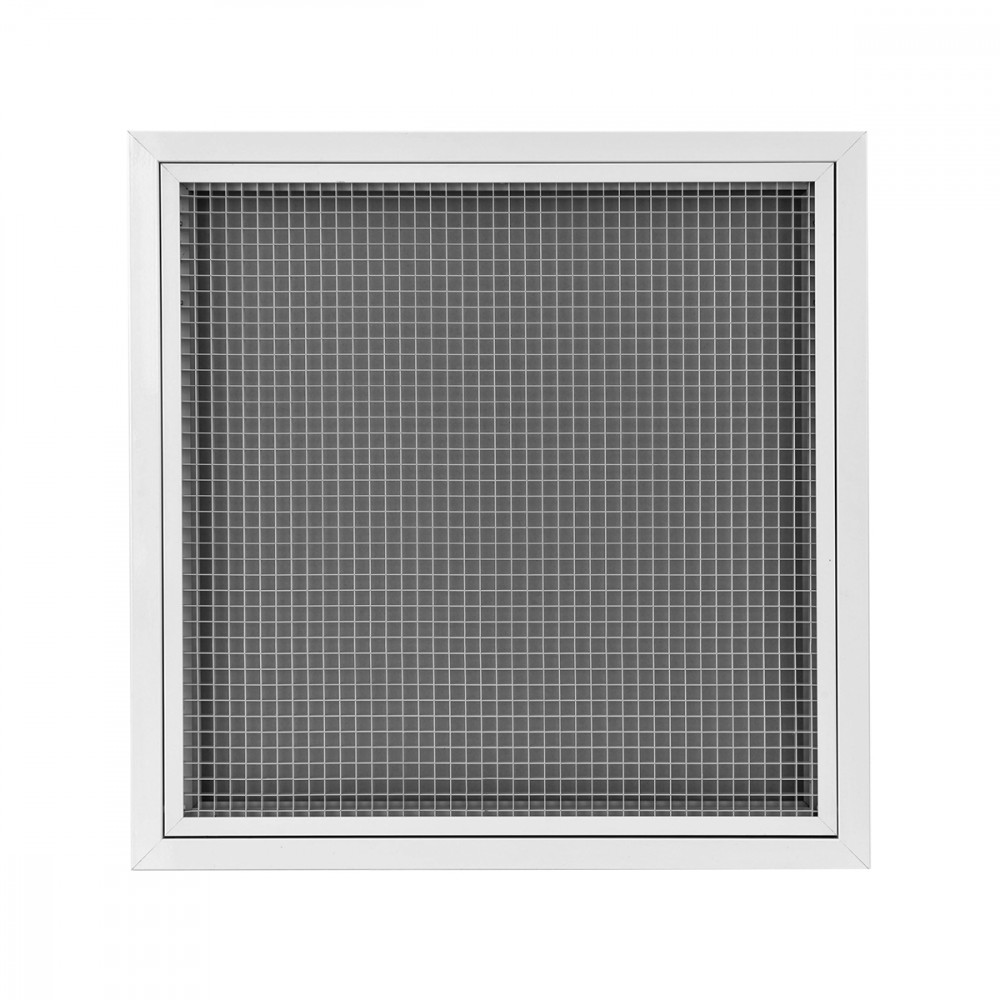

SQUARE MESH ALUMINIUM FILTER GRILLE 13X13 MMEXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Anodised aluminium.
USE:
False ceiling installation, for air intake.
INSTALLATION:
• Fixing with clips or on request with front screws.
FILTER:
Included
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
MODEL: GMA60SMF 595 x 595 (Width x Height mm)
