GRILLES

FUTURE

CHARACTERISTICS:

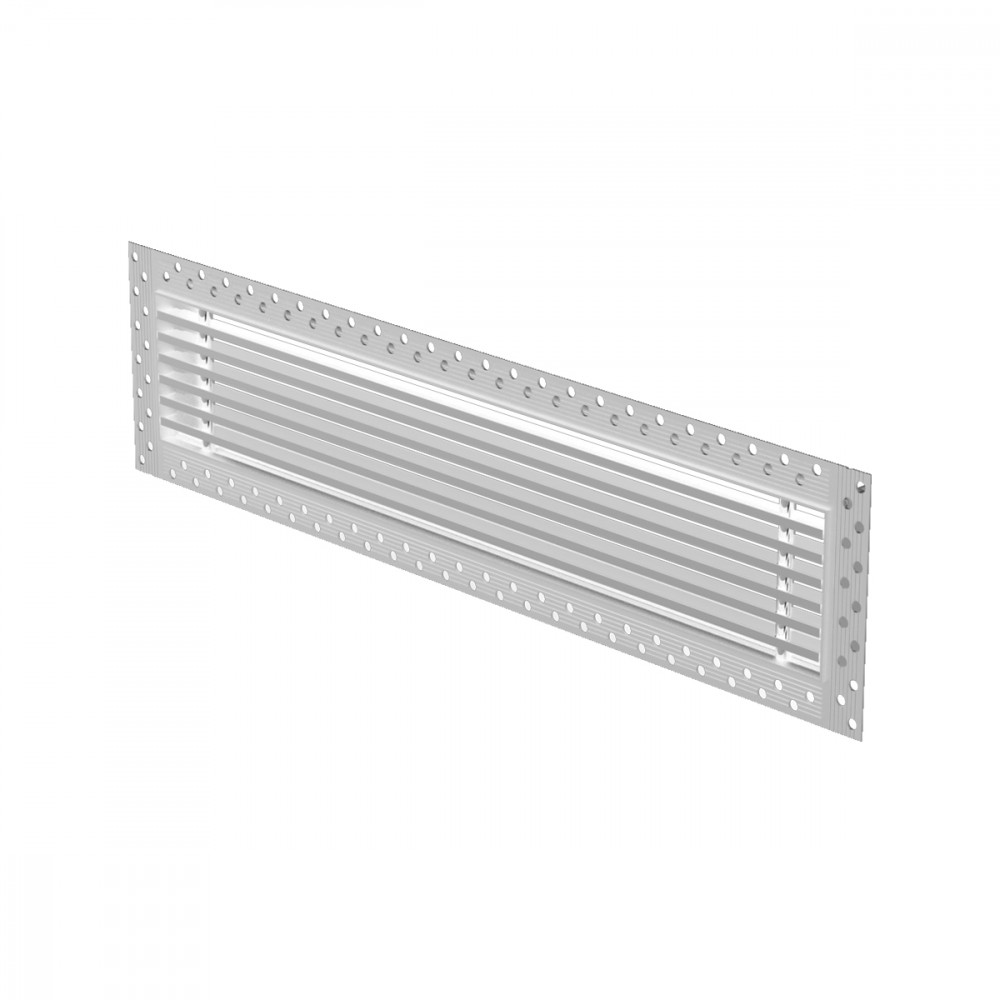

Fixed bar grille with retractable frame and removable central core.
CONSTRUCTION:

EN
FUTURE-10 fixed bar grille with 0° deflection- Frame in natural aluminium and removable part with fixed bars in anodized aluminum. FUTURE-15 fixed bar grille with 15° deflection. Frame in natural aluminium and removable part with fixed bars in anodized aluminum. FUTURE-T grille with front full screen. Frame in aluminum RAL 9016 matt painted. Removable front full screen in aluminum RAL 9016 matt painted. Minimum installation height 2 meter from the ground.

UTILIZATION:
Supply and return air.
FIXING:
Installation on support of frame by means of screws. Finish with frame cover and subsequent assembly of the central area.
ACCESSORIES:
Galvanized steel calibration damper with opposite movement blades.
Dimensions

FUTURE 10/15


1= Hole size

FUTURE 10/15


1= Over all size
2= Holes on the whole frame to favor ad mesion of masking cementitions materials and for frame fixing

FUTURE T


1= Hole size

FUTURE T


1= Misura esterno cornice
2= Forature su tutta la cornice per favorire adesione materiali cementizi di mascheratura e per il fissaggio del telaio

CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

FUTURE 400x75

0,0083

80

160

20

34

3,5

6,6

5

20

FUTURE 500x75

0,0129

120

240

22

35

4,2

8

5

20

FUTURE 600x75

0,0176

160

330

23

37

4,8

9,4

5

20

FUTURE 800x75

0,0268

250

500

26

39

6,1

11,7

5

20

FUTURE 1000x75

0,0361

330

680

27

41

6,9

13,8

5

20

FUTURE 1200x75

0,0453

420

850

29

42

7,9

15,5

5

20

FUTURE 200x100

0,0021

20

40

-

25

1,9

3,3

5

20

FUTURE 300x100

0,0083

80

160

20

34

3,5

6,6

5

20

FUTURE 400x100

0,0145

130

270

22

36

4,3

8,5

5

20

FUTURE 500x100

0,0206

190

390

24

38

5,3

10,3

5

20

FUTURE 600x100

0,0268

250

500

26

39

6,1

11,7

5

20

FUTURE 800x100

0,0392

360

730

28

41

7,3

14,2

5

20

FUTURE 1000x100

0,0515

470

970

29

43

8,3

16,6

5

20

FUTURE 1200x100

0,0638

590

1200

31

44

9,4

18,6

5

20

FUTURE 400x125

0,0206

190

390

24

38

5,3

10,3

5

20

FUTURE 500x125

0,0284

260

530

26

40

6,1

12,1

5

20

FUTURE 600x125

0,0361

330

680

27

41

6,9

13,8

5

20

FUTURE 800x125

0,0515

470

970

29

43

8,3

16,6

5

20

FUTURE 1000x125

0,0669

610

1250

31

45

9,5

19

5

20

FUTURE 1200x125

0,0823

760

1540

32

46

10,7

21,2

5

20

FUTURE 300x150

0,0176

160

330

23

37

4,8

9,4

5

20

FUTURE 400x150

0,0268

250

500

26

39

6,1

11,7

5

20

FUTURE 500x150

0,0361

330

680

27

41

6,9

13,8

5

20

FUTURE 600x150

0,0453

420

850

29

42

7,9

15,5

5

20

FUTURE 800x150

0,0638

590

1200

31

44

9,4

18,6

5

20

FUTURE 1000x150

0,0823

760

1540

32

46

10,7

21,2

5

20

FUTURE 1200x150

0,1008

930

1890

33

47

11,9

23,7

5

20

FUTURE 300x200

0,0268

250

500

26

39

6,1

11,7

5

20

FUTURE 400x200

0,0392

360

730

28

41

7,3

14,2

5

20

FUTURE 500x200

0,0515

470

970

29

43

8,3

16,6

5

20

FUTURE 600x200

0,0638

590

1200

31

44

9,4

18,6

5

20

FUTURE 800x200

0,0885

810

1660

32

46

11

22,1

5

20

FUTURE 1000x200

0,1132

1040

2120

34

47

12,6

25,2

5

20

FUTURE T

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

FUTURE 400x75

0,01235

50

130

20

34

5

20

FUTURE 500x75

0,01495

60

150

22

35

5

20

FUTURE 600x75

0,01755

70

180

23

37

5

20

FUTURE 800x75

0,02275

90

230

26

39

5

20

FUTURE 1000x75

0,02795

120

290

27

41

5

20

FUTURE 1200x75

0,03315

140

340

29

42

5

20

FUTURE 200x100

0,0078

50

100

20

31

5

20

FUTURE 300x100

0,0104

40

110

20

34

5

20

FUTURE 400x100

0,0130

50

130

22

36

5

20

FUTURE 500x100

0,0156

60

160

24

38

5

20

FUTURE 600x100

0,0182

80

190

26

39

5

20

FUTURE 800x100

0,0234

100

240

28

41

5

20

FUTURE 1000x100

0,0286

120

300

29

43

5

20

FUTURE 1200x100

0,0338

140

350

31

44

5

20

FUTURE 400x125

0,01365

60

140

24

38

5

20

FUTURE 500x125

0,01625

70

170

26

40

5

20

FUTURE 600x125

0,01885

80

200

27

41

5

20

FUTURE 800x125

0,02405

100

250

29

43

5

20

FUTURE 1000x125

0,02925

120

300

31

45

5

20

FUTURE 1200x125

0,03445

140

360

32

46

5

20

FUTURE 300x150

0,0117

50

120

23

37

5

20

FUTURE 400x150

0,0143

60

150

26

39

5

20

FUTURE 500x150

0,0169

70

180

27

41

5

20

FUTURE 600x150

0,0195

80

200

29

42

5

20

FUTURE 800x150

0,0247

100

260

31

44

5

20

FUTURE 1000x150

0,0299

120

310

Accessories and configurations

SCF

PBF1

1= internal size

PBF1

PBF1

1= internal size
2= Insulation limit model PBF1I
3= Detail “K”

PBF1

PBF2

1= internal size

PBF2

PBF2

1= internal size
2= Insulation limit model PBF1I
3= Detail “K”

PBF2

FUTURE 10/15 + FTR FUTURE + SCF

1= Filter FTR Future
2= Removeble core
3= Frame
4= Air volume control damper SCF

FUTURE 10/15 + FTR FUTURE + SCF

FUTURE-T + FTR FUTURE + SCF

1= Filter FTR Future
2= Front full screen
3= Frame
4= Air volume control damper SCF

FUTURE-T + FTR FUTURE + SCF

PBF1

1= Duct
2= Future frame
3= Plenum Box
4= Plasterboard counterwall
5= Support counterwall
6= Wall

PBF2

1= Duct
2= Future frame
3= Plenum Box
4= Plasterboard counterwall
5= Support counterwall
6= Wall

Instructions

FUTURE 10/15

1= safety lanyards

FUTURE T

1= safety lanyards
