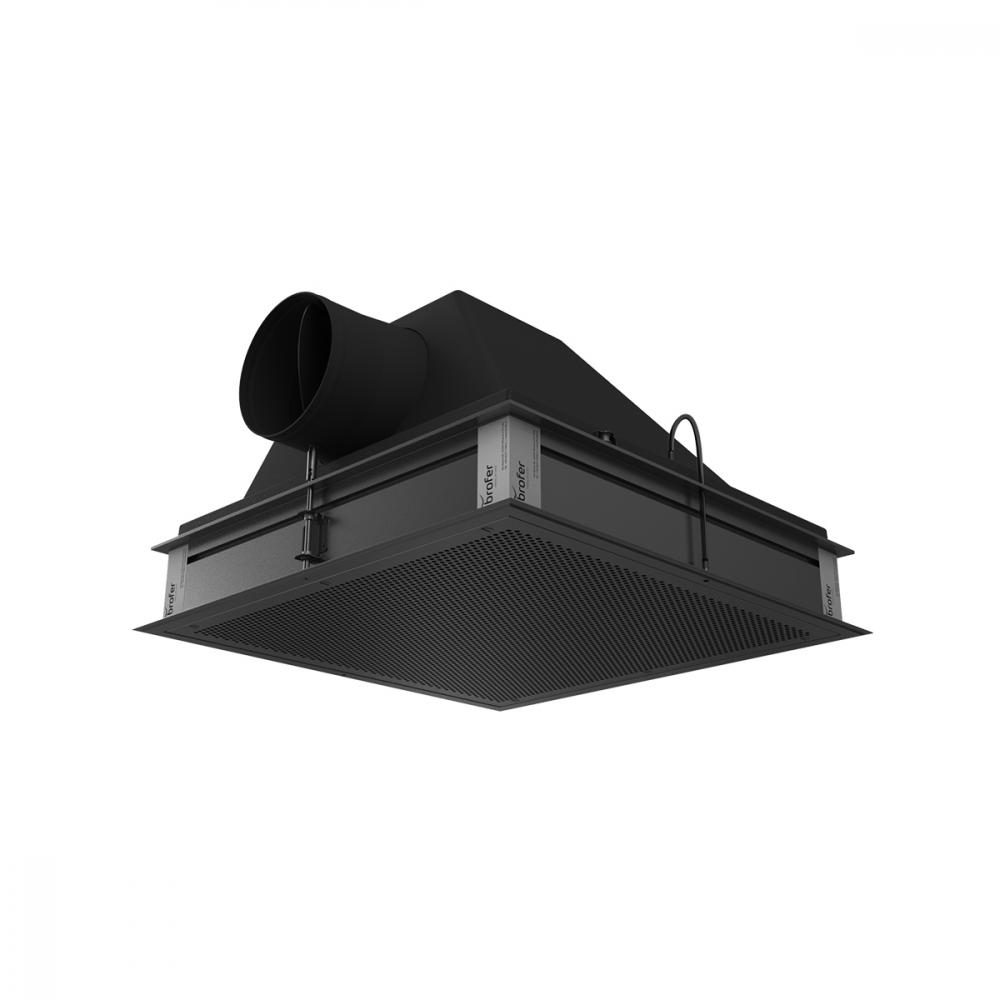

Isometric view
Products
FILTERS AND SILENCERS
PFAN60
CHARACTERISTICS:
HEPA filter plenum box with
laminar flow air distribution
including calibration damper
excluding diffuser. CONSTRUCTION:
Plenum made of a mixed
aluminum and ABS structure.
Suitable for H13 and H14
efficiency filters with special
aluminum frame. With
liquid seal on filter housing.
Complete with system for
checking leakage of the
gasket (DIN 1946-4). UTILIZATION:
Ceiling in controlled
contamination environments. Dimensions

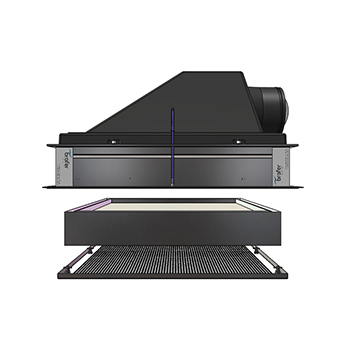

Isometric view
Accessories and configurations
PFAN60
HEPA Plenum box
HEPA Filter

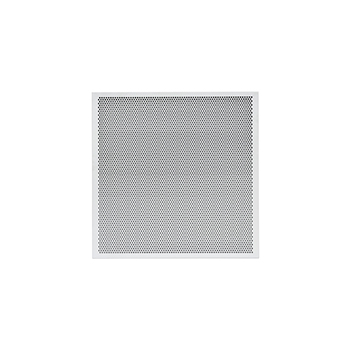

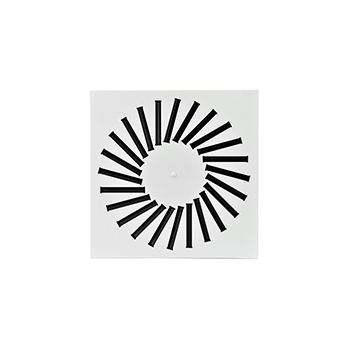

Air diffuser
PFAN60
BQE PFAN60 € 74,00
Other air diffusers on request
PFAN60
BQF PFAN60 € 78,00
Other air diffusers on request
Instructions

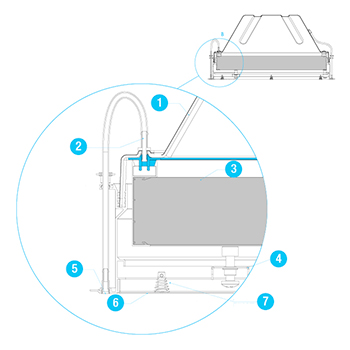

PFAN60
1= Plenum box
2= Nozzle for leakage control
3= Filter
4= Filter push system
5= Socket for leakage control
6= Diffuser
7= Fixing diffuser system
Specifications text
TERMINAL BOX FOR SEMI-ABSOLUTE AND ABSOLUTE FILTERS, SUITABLE FOR INSTALLATIONS BOTH FOR ONE-WAY FLOWS AND FOR HIGH INDUCTION TURBULENT FLOWS.
CONSTRUCTION:
Mixed construction made of an extruded anodised aluminium structure attached to an ABS plenum complete with side collar for the introduction of the air to be treated. The filters that can be housed have a classification from E10 to H14 according to the EN 1822:2009 standard. One features of the terminal is the integration of the seal control system for the gasket or fluid coupling (DIN 1946-4) which allows an easy and quick check of the correct assembly of the filter element. The box is also equipped with a flow control damper, which can be operated from the clean area of the environment, and from a door for checking the pressure drop and for sampling the photometric test tracer.
USE:
Suspended ceiling installation both support or suspension. Application in areas with controlled contamination, grey rooms, clean rooms, operating rooms of ISO 7 class (ISO 14644) and ancillary areas of operating blocks.
AIR FLOW RATE:
• 425 m3/h for one-way flow
• 700 for high induction flow.
DIFFUSER TYPE: (BQE PFAN60, BQF PFAN60)
