DIFFUSERS

UDM

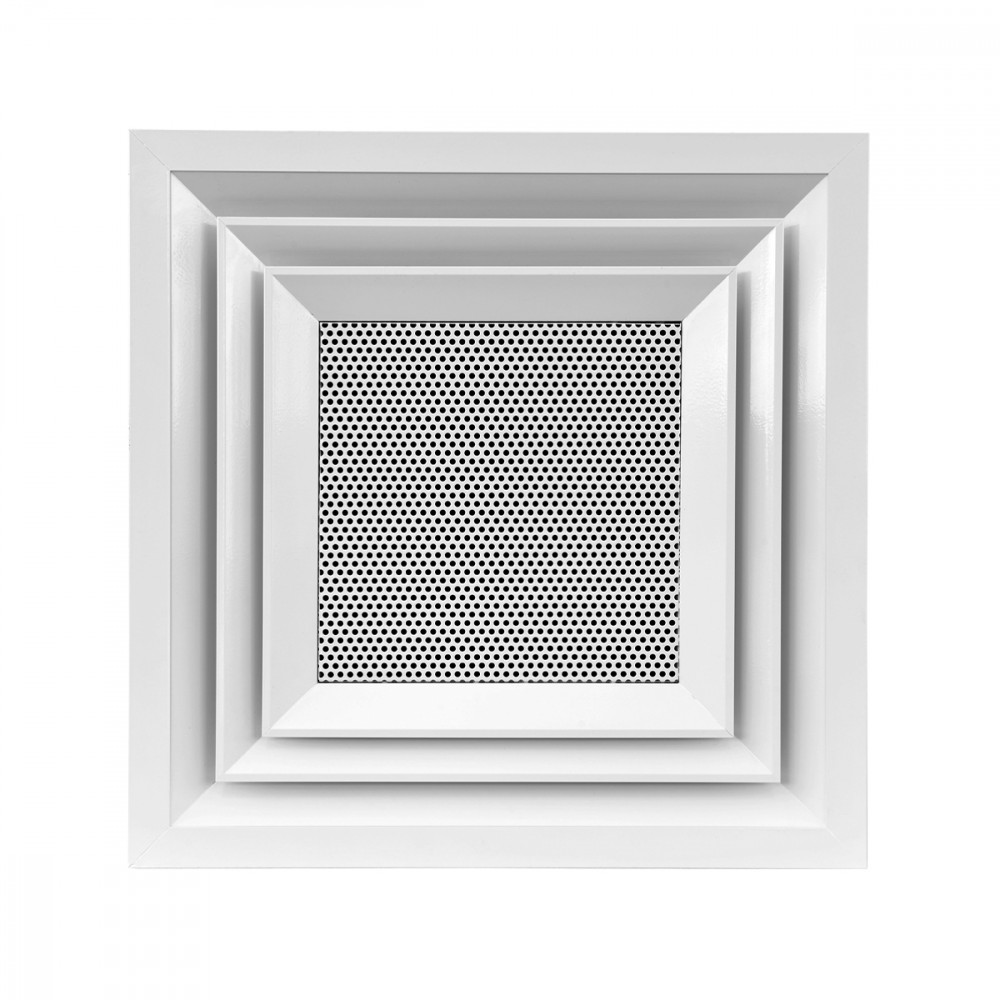

CHARACTERISTICS:
Supply and extraction multidirectional diffuser.
CONSTRUCTION:
Supply part in aluminium and galvanized steel part of return all painted RAL 9010.
UTILIZATION:
For modular false-ceiling installation for contemporary air supply and return.
Installation height: 2,5 – 3,1m.
FIXING:
Fixing on false-ceiling.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

N. way

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

UDM 600x600 1F

0,0438

4

410

920

< 20

43

1,26

6,29

10

50

UDM 600x600 2F

0,0542

4

540

1200

< 20

41

1,22

6,1

10

50

UDM 600x600 3F

0,0631

4

650

1460

< 20

39

1,19

5,97

10

50

Accessories and configurations

UDM

1= Polyethylene insulation sp. 6 mm

2= Filter

3= Thickness 23



UDM

1= Polyethylene insulatioe

2= Filter

3= Return

4= Return

5= Supply


Specifications text

MULTIDIRECTIONAL DIFFUSER IN ALUMINIUM/GALVANISED STEEL FOR AIR SUPPLY AND RETURN

CONSTRUCTION:
Air supply part in aluminium and return part in galvanised steel, all painted RAL 9010.
USE:
Modular false-ceiling with simultaneous supply and return function.
Installation height 2.5 - 3.1 m.
INSTALLATION:
Fixing to false ceiling.
MODEL: UDM
SIZES: *** x *** mm.



Documents download
Information request

Write us a message
