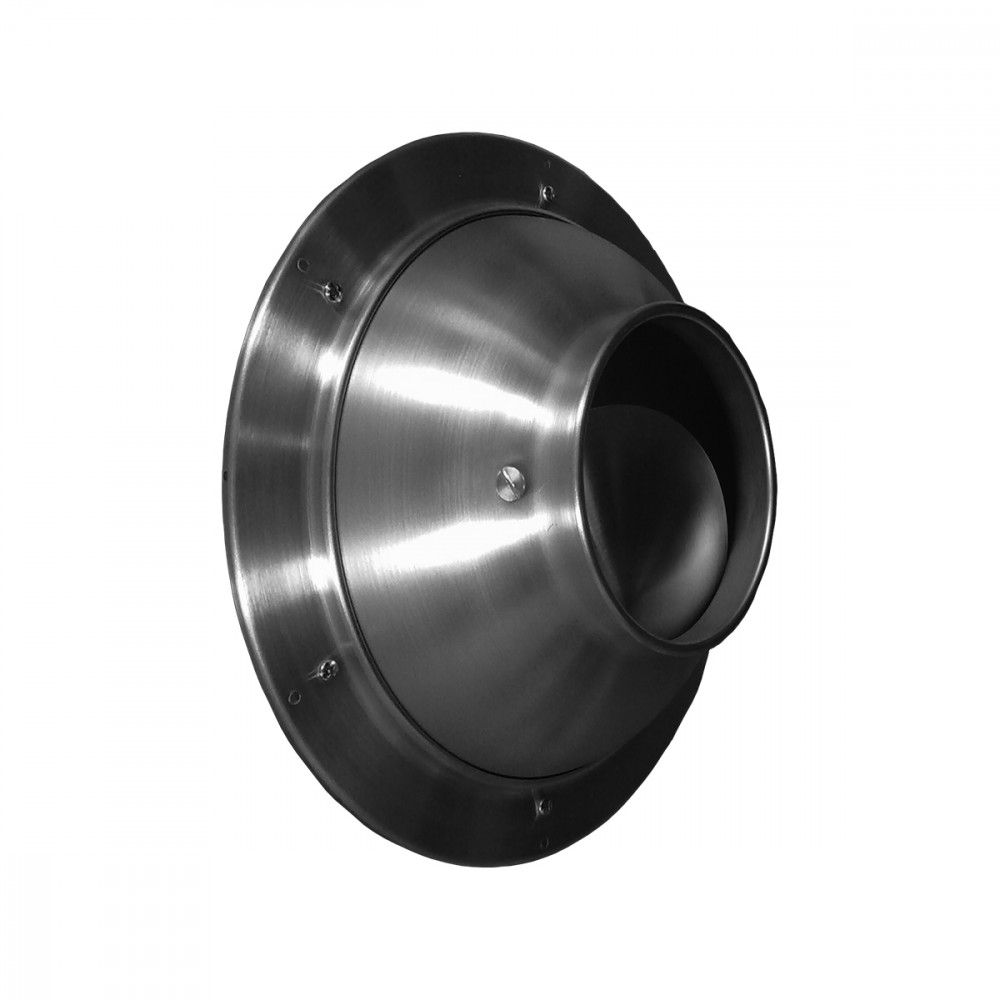

DIFFUSERS

DUT

CHARACTERISTICS:

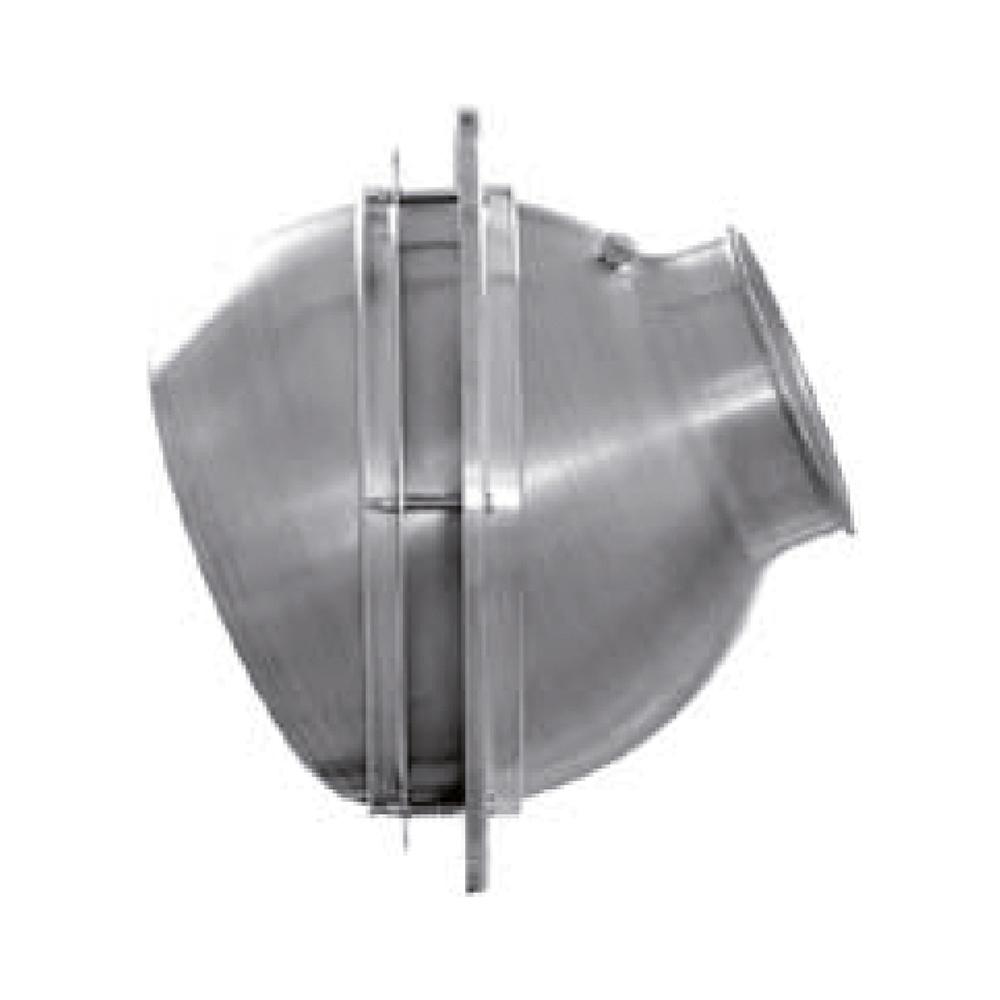

Jet diffusers for long throw with orientable nozzle for a maximum angle of 30°. Normal version DUT and version with damper DUT-S.
CONSTRUCTION:
Natural satinized aluminium with trasparent primer.
UTILIZATION:
For ceiling or wall installation for air supply.
Installation height: 2,4 - 11,5 m.
FIXING:
Fixing by frontal screws mounted on the diffuser ring to the duct or to the connecter on circular duct.
ACCESSORIES:
RF: Flexible duct connection.
RC: Circular duct connection.
CV: Covers screws.

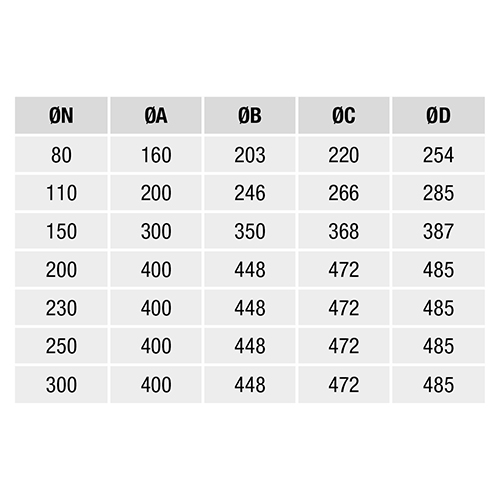

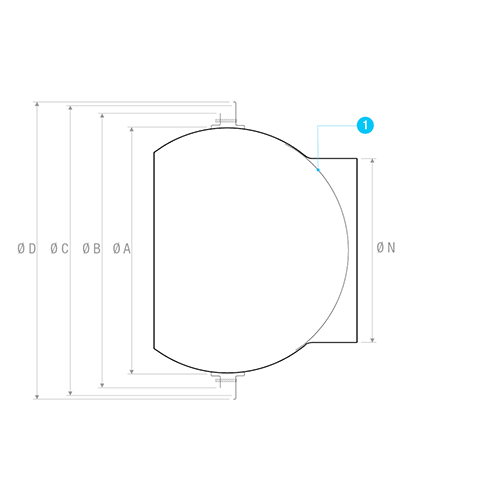

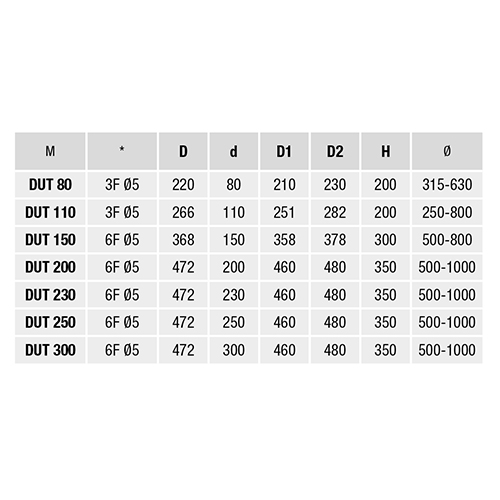

Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) -Y(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

80

0,0050

60

230

27

54

7,8

20,4

10

70

110

0,0095

120

400

29

55

10,5

26,3

10

70

150

0,0177

240

680

31

58

13,1

28,3

10

70

200

0,0314

400

1200

33

61

14,6

32,4

10

70

230

0,0415

570

1580

36

62

15,9

35,7

10

70

250

0,0491

690

1850

37

64

17,5

38,8

10

70

300

0,0707

900

2650

39

67

18,2

42,9

10

70

Instructions

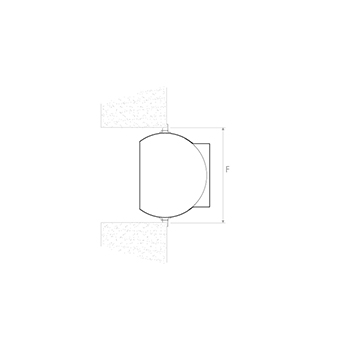

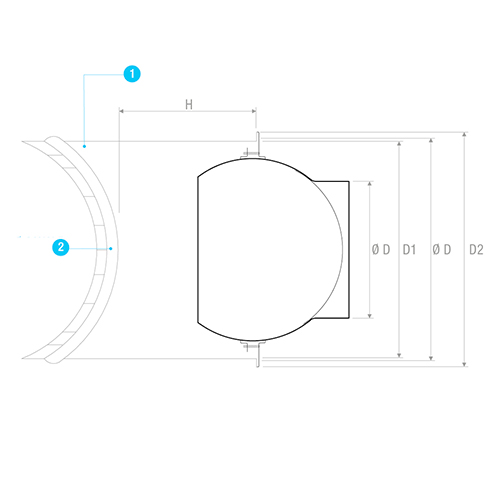

MOUNTING ON DUCT AND AT WALL

MOUNTING ON DUCT AND AT WALL

DUT

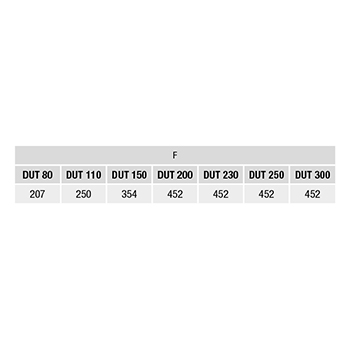

F= Nozzle

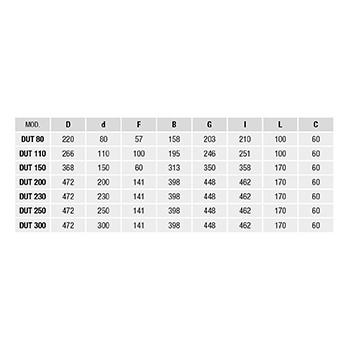

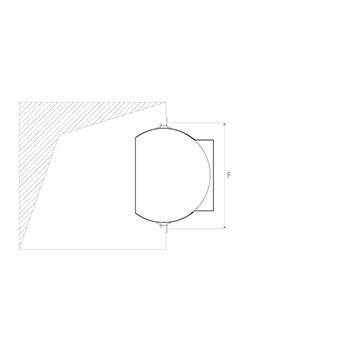

Hole size on duct and at wall

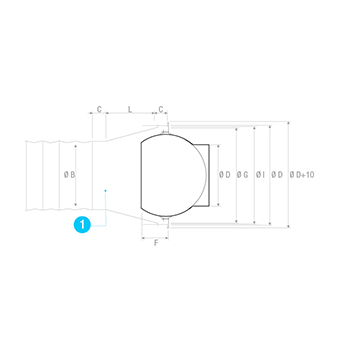

MOUNTING BY FLEXIBLE DUCT

1= Flexible hose connection



DUT

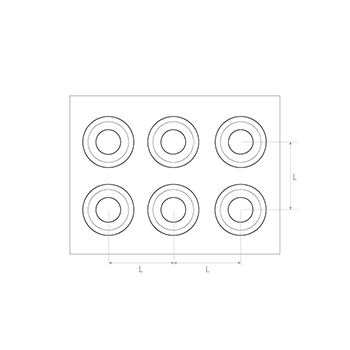

MOUNTING IN BATTERY

DATA SHEET

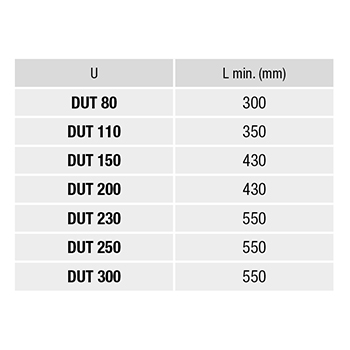

U= Nozzle





Specifications text

JET DIFFUSER IN SATINISED ALUMINIUM, WITH LONG THROW ADJUSTABLE WITH MAXIMUM ANGLE OF 30°

CONSTRUCTION:
Natural satinised aluminium with transparent primer.
USE:
Ceiling and wall for supply Installation height:2.4 - 11.5 m.
INSTALLATION:
By front screws on the diffuser collar to the duct or circular duct fitting.
ACCESSORIES:
• RF:Hose connection.
• RC:Circular duct connection.
• CV: screw cover.
VERSION: Standard model DUT - with damper model DUTS
MODEL: DUT*/***
