DU

CHARACTERISTICS:

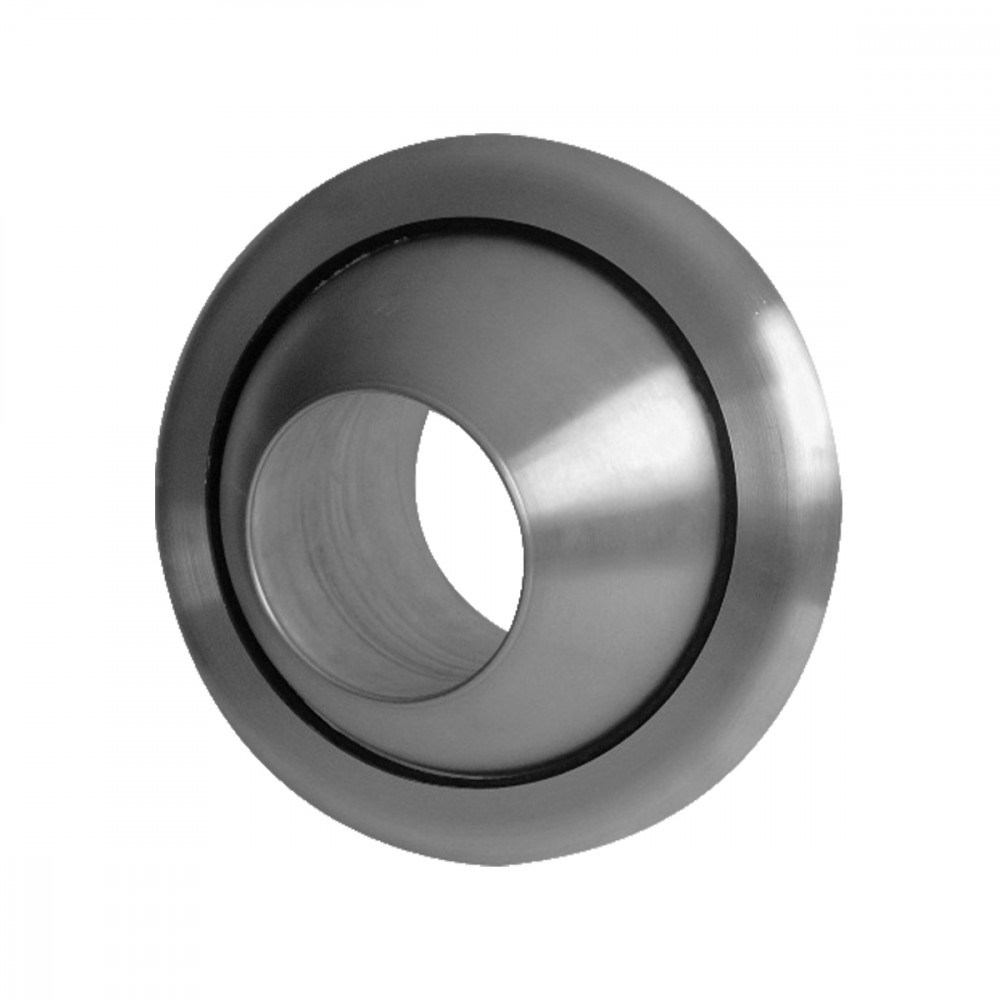

Jet diffusers for long throw with orientable nozzle for a maximum angle of 30°.

CONSTRUCTION:

Natural satinized aluminium with trasparent primer.

UTILIZATION:

For ceiling or wall installation and for air delivery.
Installation height: 2,4 – 11,5 m.

FIXING:

Fixing by frontal screws mounted on the diffuser ring to the duct or to the connecter on circular duct.

ACCESSORIES:

• Connecter for circular duct.

Dimensions

DU 80

DU 150

DU 200

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) -Y(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DU 80	0,005	60	140	20	40	8,1	18,9	10	50
DU 150	0,0176	250	550	31	58	11,9	26,2	10	50
DU 200	0,0314	480	1030	38	69	14	30,1	10	50

Instructions

MOUNTING ON THE DUCT

F
DU 80 = 207
DU 150 = 354
DU 200 = 452

MOUNTING ON THE CIRCULAR DUCT

1= Ø Duct

A
DU 80 = 200
DU 150 = 300
DU 200 = 350

MOUNTING BY FLEXIBLE DUCT

MOUNTING IN BATTERY

I
DU 80 = 300
DU 150 = 430
DU 200 = 430

Specifications text

JET DIFFUSER IN SATINISED ALUMINIUM, LONG THROW ADJUSTABLE WITH A MAXIMUM ANGLE OF 30°

CONSTRUCTION:
Natural satinised aluminium with transparent primer.
USE:
Ceiling or wall, for air supply. Installation height:2.4 - 11.5 m.
INSTALLATION:
Fixing by front screws on the diffuser collar to the duct or to the circular duct fitting.
ACCESSORIES:
• Connection for circular duct.
MODEL:DU***
