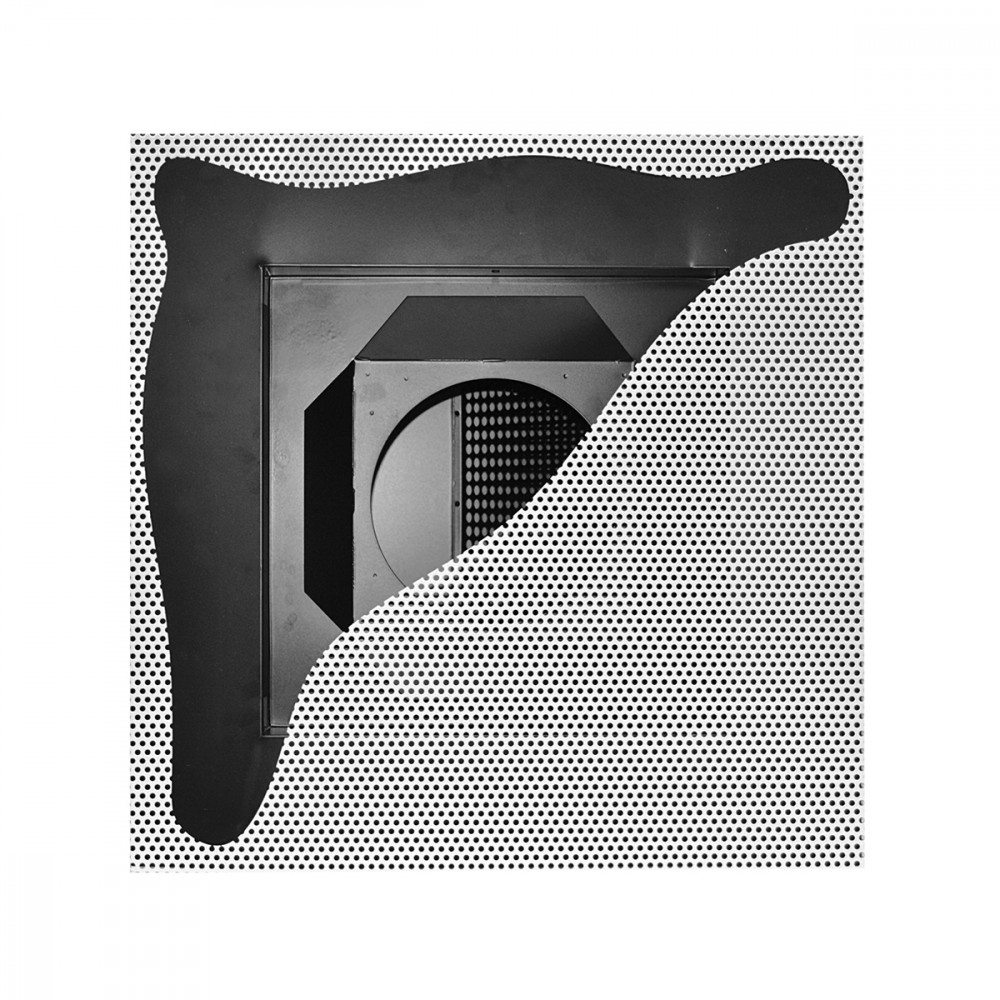

DPI

CHARACTERISTICS:

Multidirectional high induction diffuser on panel with perforated plate high induction and flow diverter.

CONSTRUCTION:

RAL 9010 white painted steel. Deflectors black RAL 9005.

UTILIZATION:

Ceiling installation for air supply.
Installation height: 2,8 - 3,4 m.

FIXING:

Mounting with panel of modular ceiling.

ACCESSORIES:

PDZ2DPI: plenum box with side spigot.
PDZI2DPI: plenum box with external insulation and side spigot.

Dimensions

DPIS

DPI+PDZ2PDI

CHOICE AND SIZING

Mod.	Q [m3/h]		LWA [dB(A)]		X(0,50) [m]		Dps * [Pa]
Mod.	min	max	min	max	min	max	min	max
DPI 160	230	520	32	58	0,7	1,7	10	50
DPI 200	320	720	32	58	0,9	2	10	50
DPI 250	440	990	31	58	1,1	2,4	10	50
DPI 315	620	1380	31	57	1,3	2,9	10	50

* with damper completely open

Accessories and configurations

DPIS

DPI

4 way air patter

DPI

3 way air patter

DPI

3 way air patter (corner)

DPI

3 way air patter (opposite side)

DPI

1 way air pattern

DPI

Legend

Closed side

Open side

Specifications text

MULTIDIRECTIONAL DIFFUSER IN RAL9010 GALVANISED STEEL WITH HIGH INDUCTION PERFORATED SCREEN WITH FLOW DIVERTER.

CONSTRUCTION:
RAL 9010 white painted steel. Black RAL 9005 deflectors
USE:
Ceiling for air intake. Installation height:2.8 - 3.4 m
INSTALLATION:
Fixing with panel on modular false ceiling.
AIR INTAKE: Upper DPIS model, lateral DPIL model
MODEL: DPI***
