DIFFUSERS

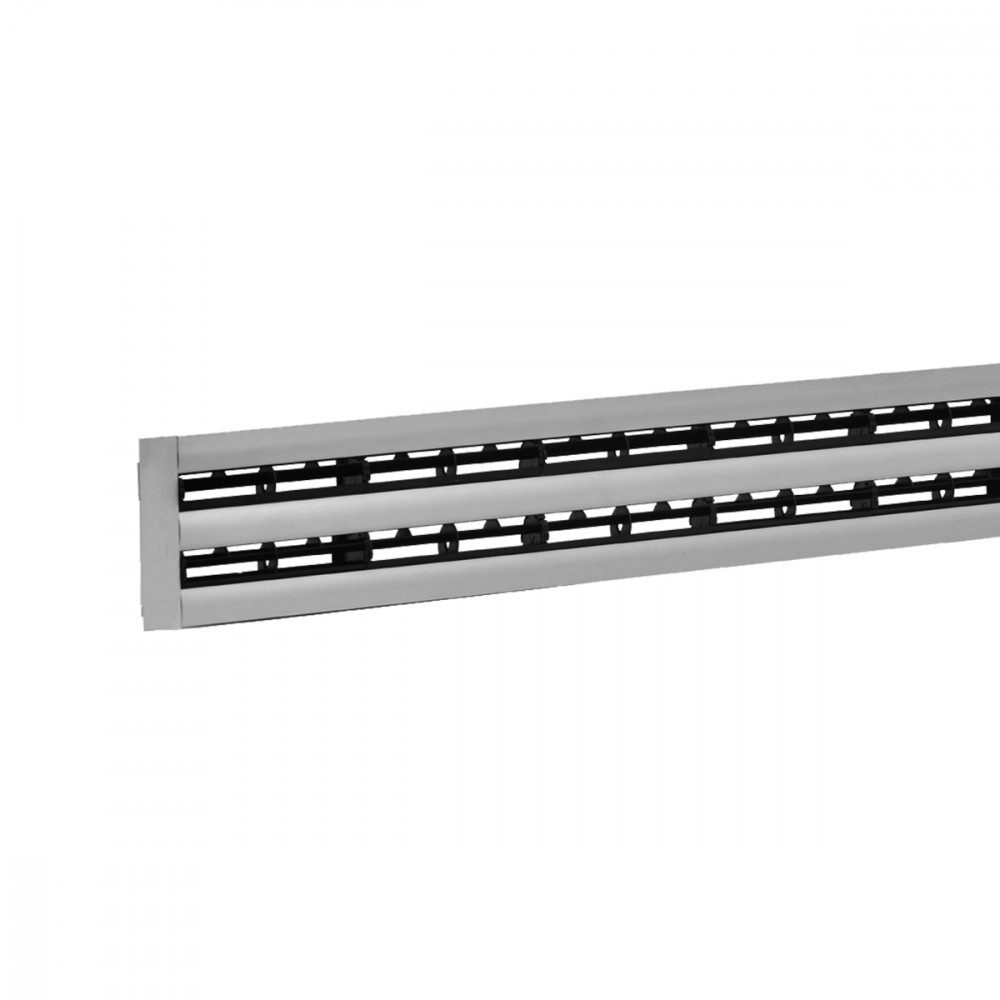

DLPCN

CHARACTERISTICS:
Linear slot diffusers with aifoil section rotating deflector for medium-small airflow.
CONSTRUCTION:
Anodized extruded aluminium, deflector made of RAL 9005 black polypropylene.
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,6 - 4,0 m.
FIXING:
• By frontal screws.
• By inner mounting mobile bracket.
• By springs inside the plenum.
ACCESSORIES:
• Galvanized steel connecting plenum with insulation.
• Deflector RAL 9003.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt * [Pa]

min

max

min

max

min

max

min

max

DLPCN1 1000

0,0062

60

140

-

42

3,3

7,7

10

50

DLPCN2 1000

0,0124

120

260

23

44

4,3

9,4

10

50

DLPCN3 1000

0,0186

170

370

24

46

4,8

10,4

10

50

DLPCN4 1000

0,0248

210

470

24

46

5

11,1

10

50

* without equalizer and calibration damper completely open

Accessories and configurations

PDLCN1

1= Tube

2= spring

Fixing to the plenum by springs CM



PDLCN2

1= Fixing screws

2=Tube

3= Crew

Fixing to the plenum by inner mounting brackets CVL


Instructions

POSITIONING OF BRAKETS CVLCN INSIDE PLENUM

1= Side view position CVLCN lenght to 1500 mm



PLENUM CENTER

1= Side view position CVLCN lenght over 1500 mm



CONTINUITY SOLUTION

Clamping point

Insert the bracket into the profile in the direction indicated.



CONTINUITY SOLUTION

Insert the bracket to penetrate up to 10/15 mm the clamping point.



CONTINUITY SOLUTION

Combine the 2 parts.



CONTINUITY SOLUTION

Connection point


Specifications text

ALUMINIUM LINEAR SLOT DIFFUSER WITH ROTARY DEFLECTOR IN POLYPROPYLENE WITH AERODYNAMIC PROFILE FOR MEDIUM-SMALL FLOW RATE

CONSTRUCTION:
Extruded anodised aluminium, RAL 9005 black polypropylene deflector.
USE:
On the ceiling, for air supply and return. Installation height:2.6 - 4.0 m.
INSTALLATION:
• By front screws.
• With movable internal bracket.
• With springs inside the plenum.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation.
• RAL 9003 deflector
MODEL: DLPCN**/***/*** (type-no. slots-length mm)
