DLPCB10
DLPCB20
DLPCB
1= Option endcaps 20mm
DLPCB
1= Standard
DLPCB
1= Option endcap 10mm
Products
DIFFUSERS

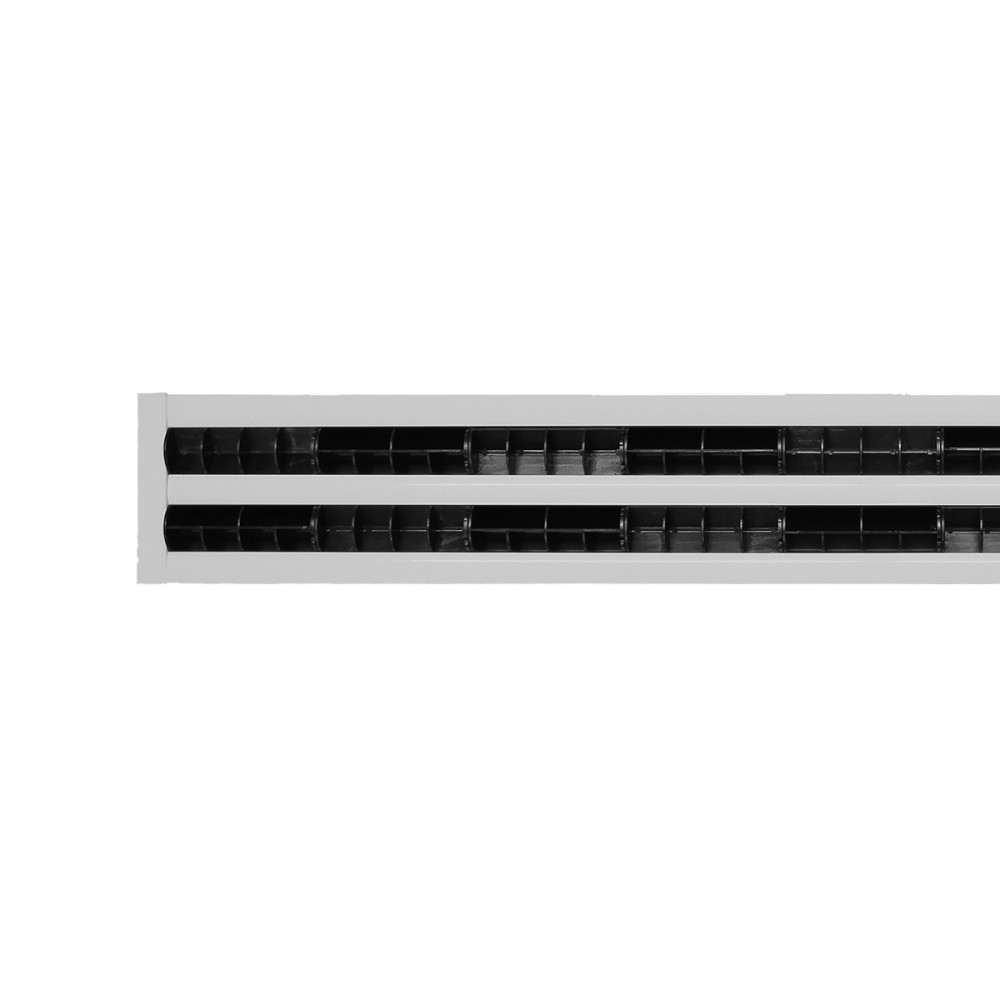

DLPCB
CHARACTERISTICS:
Linear slot diffusers with aifoil section rotating deflector for high airflow. CONSTRUCTION:
Anodized extruded aluminium, deflector made of RAL 9005 black polypropylene. UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,6 - 4,0 m.
FIXING:
• By frontal screws.
• By inner mounting mobile bracket.
• By springs inside the plenum.
ACCESSORIES:
• Galvanized steel connecting plenum with insulation.
• Deflector RAL 9003.
Dimensions
1= Option endcaps 20mm
1= Standard
1= Option endcap 10mm
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt * [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DLPCB1 1000 |
0,013 |
80 |
220 |
- |
43 |
3 |
7,4 |
10 |
50 |
|
DLPCB2 1000 |
0,026 |
190 |
420 |
24 |
45 |
4,1 |
9,1 |
10 |
50 |
|
DLPCB3 1000 |
0,039 |
270 |
600 |
25 |
47 |
4,4 |
10,1 |
10 |
50 |
|
DLPCB4 1000 |
0,052 |
340 |
760 |
25 |
47 |
4,8 |
10,7 |
10 |
50 |
* without equalizer and calibration damper completely open
Accessories and configurations
PDLCB1
1= Tube
2= spring
Fixing to the plenum by springs CM
PDLCB2
1= Fixing screws
2=Tube
3= Crew
Fixing to the plenum by inner mounting brackets CVL
DLPCB
N.= slots
L mm= Lenght
Ø= spigots
N.= spitos
CVL = Mounting brackets
CM= Spring
Instructions
POSITIONING OF BRAKETS CVL INSIDE PLENUM
1= Side view position CVL lenght to 1500 mm
PLENUM CENTER
1= Side view position CVL lenght over 1500 mm
CVL
Configuration change CVL to PDL 3 to PDL 2 with finger pressure
CONTINUITY SOLUTION
Clamping point
Insert the bracket into the profile in the direction indicated.
CONTINUITY SOLUTION
Insert the bracket to penetrate up to 10/15 mm the clamping point.
CONTINUITY SOLUTION
Combine the 2 parts.
CONTINUITY SOLUTION
Connection point
Specifications text
ALUMINIUM LINEAR SLOT DIFFUSER WITH ROTARY DEFLECTOR IN POLYPROPYLENE WITH AERODYNAMIC PROFILE FOR LARGE FLOW RATE
CONSTRUCTION:
Extruded anodised aluminium, RAL 9005 black polypropylene deflector.
USE:
On the ceiling, for air supply and return. Installation height:2.6 - 4.0 m.
INSTALLATION:
• By front screws.
• With movable internal bracket.
• With springs inside the plenum.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation.
• RAL 9003 deflector
MODEL: DLPCB**/***/*** (type-no. slots-length mm)
