DIFFUSERS

DLN

CHARACTERISTICS:

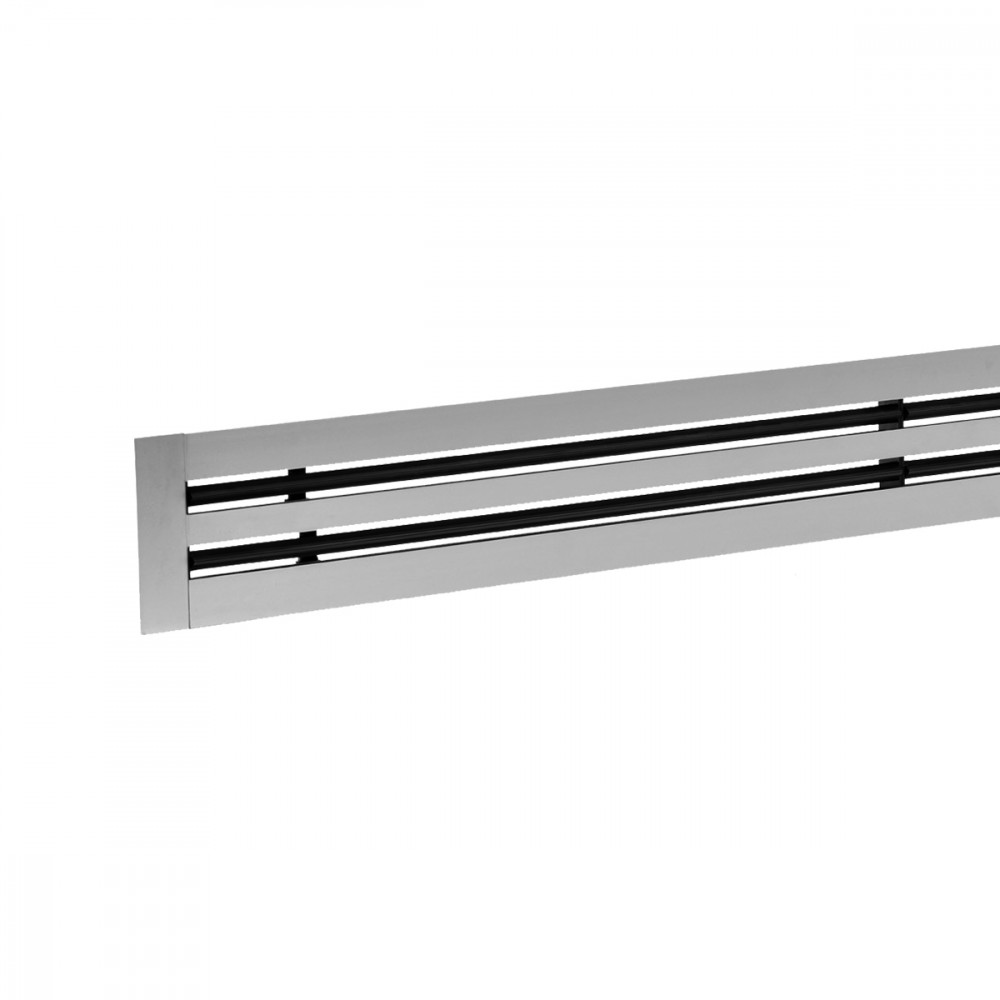

Linear slot diffusers with drop profile deflector.
CONSTRUCTION:
Anodized extruded aluminium, RAL 9005 black deflector in polypropylene (white RAL 9003 on request).
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 - 3,1 m.
FIXING:
• By frontal screws.
• By inner mounting mobile bracket.
• By springs inside the plenum.
ACCESSORIES:
• Galvanized steel connecting plenum with insulation.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt * [Pa]

min

max

min

max

min

max

min

max

DLN1 1000

0,01061

120

280

31

50

3,6

8,6

10

50

DLN2 1000

0,02073

240

550

30

49

5

11,8

10

50

DLN3 1000

0,03085

350

820

29

48

5,9

14,1

10

50

DLN4 1000

0,04097

470

1080

29

47

6,8

16

10

50

DLN5 1000

0,05109

580

1350

28

47

7,5

17,7

10

50

DLN6 1000

0,06121

700

1620

28

47

8,2

19,3

10

50

DLN7 1000

0,07133

810

1890

28

46

8,7

20,7

10

50

DLN8 1000

0,08145

930

2160

27

46

9,3

22

10

50

* without equalizer and calibration damper completely open

Accessories and configurations

PDL1

1= Tube

2= spring



PDL2

1= Fixing screws

2= Inner mounting bracket

3= Crew

Fixing to the plenum by inner mounting brackets CVL



PDL3

1= Fixing screws

2= Inner mounting bracket inclinated

Fixing to the plenum by inner mounting brackets inclinated CVL



DLN90

DLN10

DLN40

DLN20

DLN50

DLN30

DLN

N.= slots

L mm= Lenght

Ø= spigots

N.= spitos

CVL = Mounting brackets

CM= Spring


Instructions

DLNR

Slot diffuser with external adjustable washer

Maximum length 1500 mm

Price increase 15%



DLN

DLN

CVL

Configuration change CVL to PDL 3 to PDL 2 with finger pressure



CONTINUITY SOLUTION

Clamping point

Insert the bracket into the profile in the direction indicated.



CONTINUITY SOLUTION

Insert the bracket to penetrate up to 10/15 mm the clamping point.



CONTINUITY SOLUTION

Combine the 2 parts.



CONTINUITY SOLUTION

Connection point



DLF DIFFUSER PLENUM PDL1 ASSEMBLY DIAGRAM

1) Hook the spring to the mounting tube placed inside the plenum.



DLF DIFFUSER PLENUM PDL1 ASSEMBLY DIAGRAM

2) Bringing the diffuser to the plenum, by means of the hook to extend the spring and hook it to the self-locking pin on the diffuser so block the way unitary structure.

1= pull-out stop loop

2= tube in the plenum

3= self-locking pin on the diffuseR



DLF DIFFUSER PLENUM PDL1 ASSEMBLY DIAGRAM

3) Ensure sure that the attachment is safe.

1= pull-out stop loop

2= tube in the plenum

3= self-locking pin on the diffuser


Specifications text

ALUMINUM LINEAR SLOT DIFFUSER WITH CENTRAL AERODYNAMIC POLYPROPYLENE DEFLECTOR

CONSTRUCTION:
Extruded anodised aluminium, black RAL 9005 polypropylene deflector (white RAL 9003 on request).
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
• By front screws.
• With movable internal bracket.
• With springs inside the plenum.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation.
MODEL: DLN**/***/*** (type-no. slots-length mm)
