Products
DIFFUSERS
DLAS
CHARACTERISTICS:

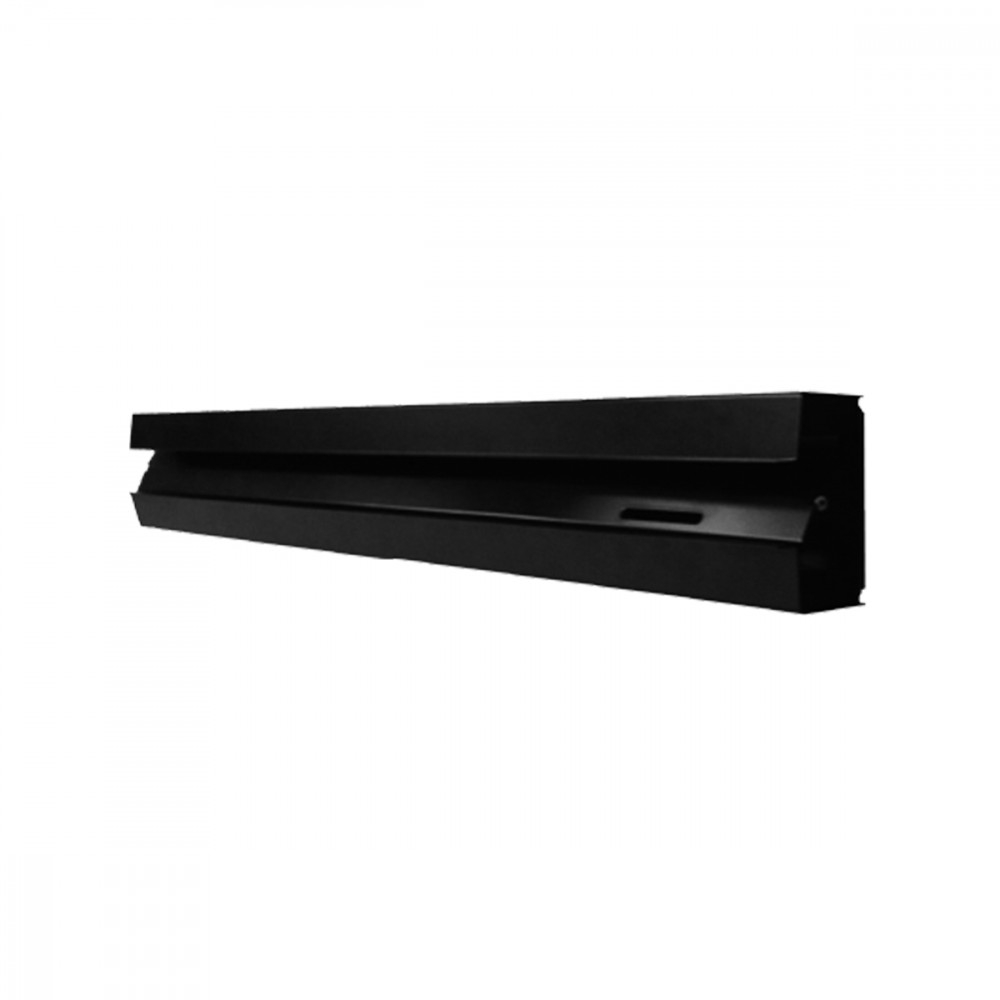

Linear diffuser single slot with deflector, frameless, with concealed installation, for wall or ceiling installation.
DL-AS 10: Diffuser without deflector.
DL-AS 20: Diffuser with deflector.
DL-30 AS: Diffuser without deflector and with damper.
CONSTRUCTION:
Material: Painted steel.
Finish: RAL 9005.
UTILIZATION:
Heating and cooling control in environments where it is necessary to hide the diffusion element or need to create air curtains vertical or horizontal FIXING:
With mobile mounting bracket installed inside the diffuser. ACCESSORIES:
PDL: galvanized steel plenum with side inlet.
PDLI: galvanized steel insulated plenum with insulating thickness 6 mm and with side inlet.
DL-AS-COM: blind element for in-line mounting.
Dimensions
1= Self-tapping screws
1= Concealed mounting on counter ceiling
M= Model
M= Model
CHOICE AND SIZING
|
Mod. |
Lk [m2] |
P [m3/h] |
LWA [dB(A)] |
Throw [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DLAS30 |
0.017 |
95 |
315 |
<20 |
43 |
1.8 |
5.2 |
10 |
75 |
|
DLAS40 |
0.022 |
130 |
420 |
<20 |
44 |
2.5 |
6.4 |
10 |
75 |
|
DLAS60 |
0.038 |
190 |
700 |
<20 |
47 |
3.6 |
9.0 |
10 |
75 |
Data with calibration damper completely open
Accessories and configurations
DLAS
Damper

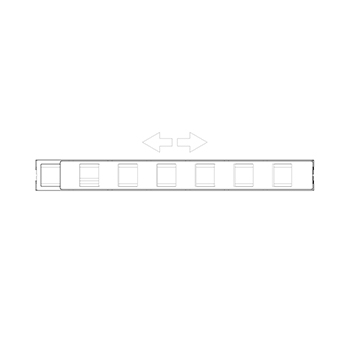

Top view of the diffuser
DLAS
1= Louver adjustment damper

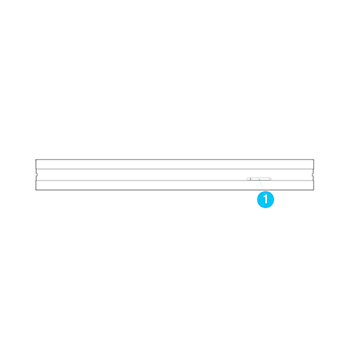

Botton view of the diffuser
The damper is adjusted by inserting a screwdriver into the baffle in the deflector and pressing the folded profile of the damper that slides longitudinally inside the guides on the upper part of the frame.

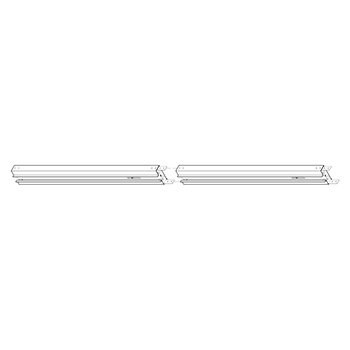

DLASCON
Continuity solution kit
The connection plate is an accessory that is supplied on request in case of wanting to install the diffusers in line of continuity.
The plate is inserted into the special slot with self-drilling screws or rivets to be inserted into the pre-holes on the plate and in the diffuser as shown in the drawing above.

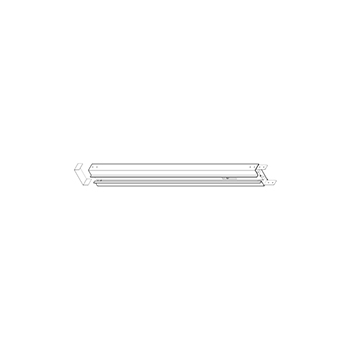

DLASCAP
Closing end caps
The closing cap is an accessory that is supplied on request to close the terminal parts of the diffusers, the cap is inserted into the appropriate slot and fixed with self-drilling screws or rivets in the plate or diffuser as shown in the drawing above.
Specifications text
LINEAR DIFFUSER IN RAL9005 GALVANISED STEEL WITH SINGLE SLOT WITH DEFLECTOR, WITHOUT FRAME WITH CONCEALED INSTALLATION
CONSTRUCTION: Painted steel.
• DLAS10: Diffuser without deflector.
• DLAS20: Diffuser with deflector.
• DLAS30: Diffuser without deflector and with damper.
FINISH: RAL9005
USE: Heating and air conditioning in spaces where it is necessary to hide the diffusion element or to create vertical or horizontal air blades. Adjustable throw.
INSTALLATION: With movable fixing bracket installed inside the diffuser.
ACCESSORIES:
• PDL: galvanised steel plenum with side inlet.
• PDLI: steel plenum covered with insulation th.6 mm and with side inlet.
• DLASCON: continuity kit.
• DLAST: closing caps.
MODEL: DLAS**/**/*** (type-model-length mm)
