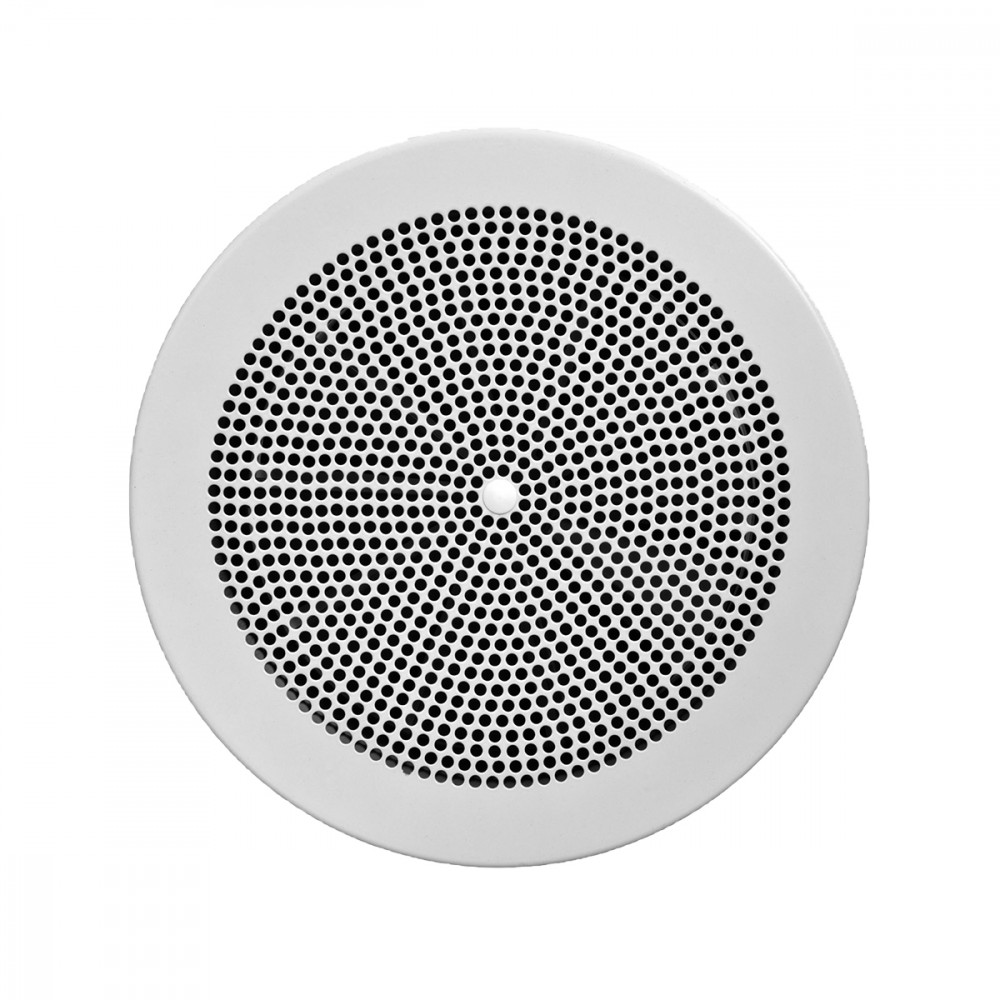

DEES
CHARACTERISTICS:
Fixed geometry circular diffuser with helical effect and perforated plate. CONSTRUCTION:
RAL 9010 white painted steel. UTILIZATION:
Ceiling installation for air supply or return.
Installation height: 2,8 – 3,2 m.
FIXING:
Fixing by screws on neck diffuser. ACCESSORIES:
• Galvanized steel connecting plenum with insulation and calibration damper. Dimensions
Ø mm= Nominal dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt * [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DEES 100 |
0,00779 |
30 |
60 |
22 |
30 |
0,45 |
1,08 |
10 |
50 |
|
DEES 125 |
0,01219 |
40 |
100 |
22 |
33 |
0,48 |
1,22 |
10 |
50 |
|
DEES 160 |
0,01998 |
70 |
140 |
23 |
37 |
0,56 |
1,49 |
10 |
50 |
|
DEES 200 |
0,03125 |
110 |
220 |
25 |
41 |
0,68 |
1,74 |
10 |
50 |
|
DEES 250 |
0,04887 |
160 |
330 |
27 |
45 |
0,87 |
2,09 |
10 |
50 |
|
DEES 315 |
0,07765 |
250 |
500 |
30 |
51 |
1,2 |
2,63 |
10 |
50 |
|
DEES 400 |
0,12532 |
740 |
950 |
34 |
59 |
1,73 |
3,49 |
10 |
50 |
* straight connection without plenum
Accessories and configurations
PDC
1= Optional damper
PDCI
1= Optional damper
2= Insulation
MEASURES
Specifications text
CIRCULAR DIFFUSER IN RAL9010 GALVANISED STEEL WITH FIXED GEOMETRY AND HELICAL EFFECT AND PERFORATED SCREEN
CONSTRUCTION:
RAL 9010 white painted steel.
USE:
On the ceiling, for air supply and return. Installation height:2.8 - 3.2 m
INSTALLATION:
Fixing by screws on the neck of the diffuser.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation and control damper.
MODEL: DEES***
Documents download
DEESInformation request
Write us a message
