DEE

CHARACTERISTICS:

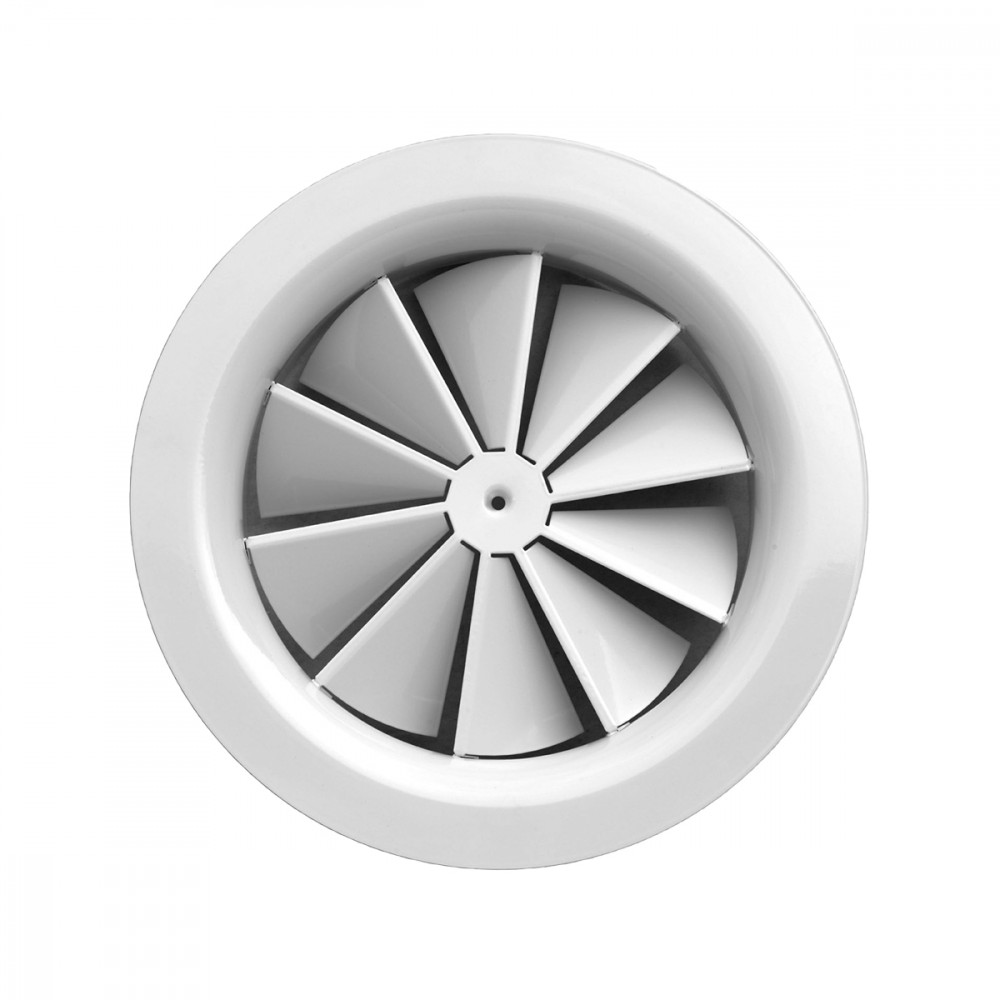

Fixed geometry circular diffusers with helical-effect.

CONSTRUCTION:

RAL 9010 white painted steel.

UTILIZATION:

For ceiling installation and for air intake and delivery.
Installation height: 2,8 - 4,6 m.

FIXING:

Fixing by screws on neck diffuser.

ACCESSORIES:

• Galvanized steel connecting plenum with insulation and calibration damper.

Dimensions

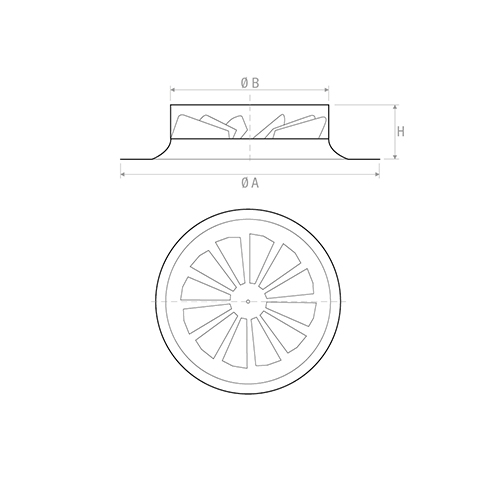

DEE

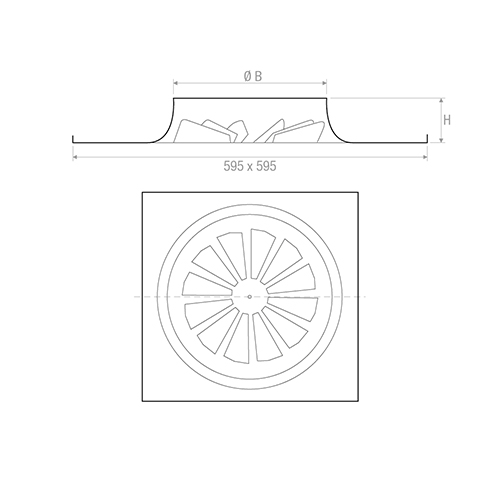

DEEP

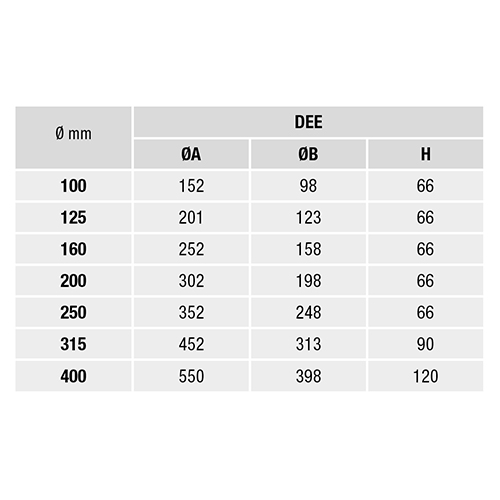

MEASURES

Ø mm= Nominal dimensions

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DEE 125	0,00912	80	180	22	37	0,36	0,81	10	50
DEE 160	0,01464	120	290	21	38	0,46	1,13	10	50
DEE 200	0,02245	190	450	22	38	0,63	1,5	10	50
DEE 250	0,03444	300	700	22	38	0,85	1,98	10	50
DEE 315	0,05364	470	1100	22	38	1,11	2,6	10	50
DEE 400	0,08479	750	1750	22	39	1,46	3,41	10	50

Accessories and configurations

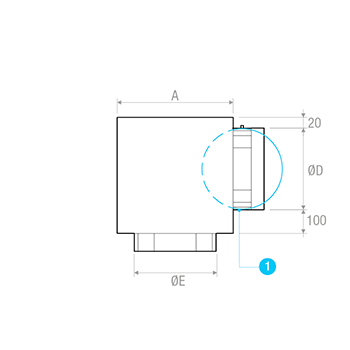

PDC

1= Optional damper

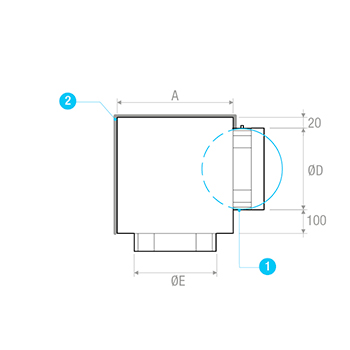

PDCI

1= Optional damper

2= Insulation

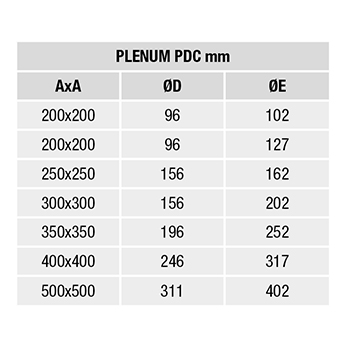

MEASURES

Specifications text

CIRCULAR DIFFUSER IN RAL9010 GALVANISED STEEL WITH FIXED GEOMETRY AND HELICAL EFFECT

CONSTRUCTION:
RAL 9010 white painted steel.
USE:
On the ceiling, for air supply and return. Installation height:2.8 - 4.6 m
INSTALLATION:
Fixing by screws on the neck of the diffuser.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation and control damper.
MODEL:DEE*/***
