DCGT
DCGTE
DCGTP
MEASURES
BxH mm= Nominal dimensions
Products
DIFFUSERS

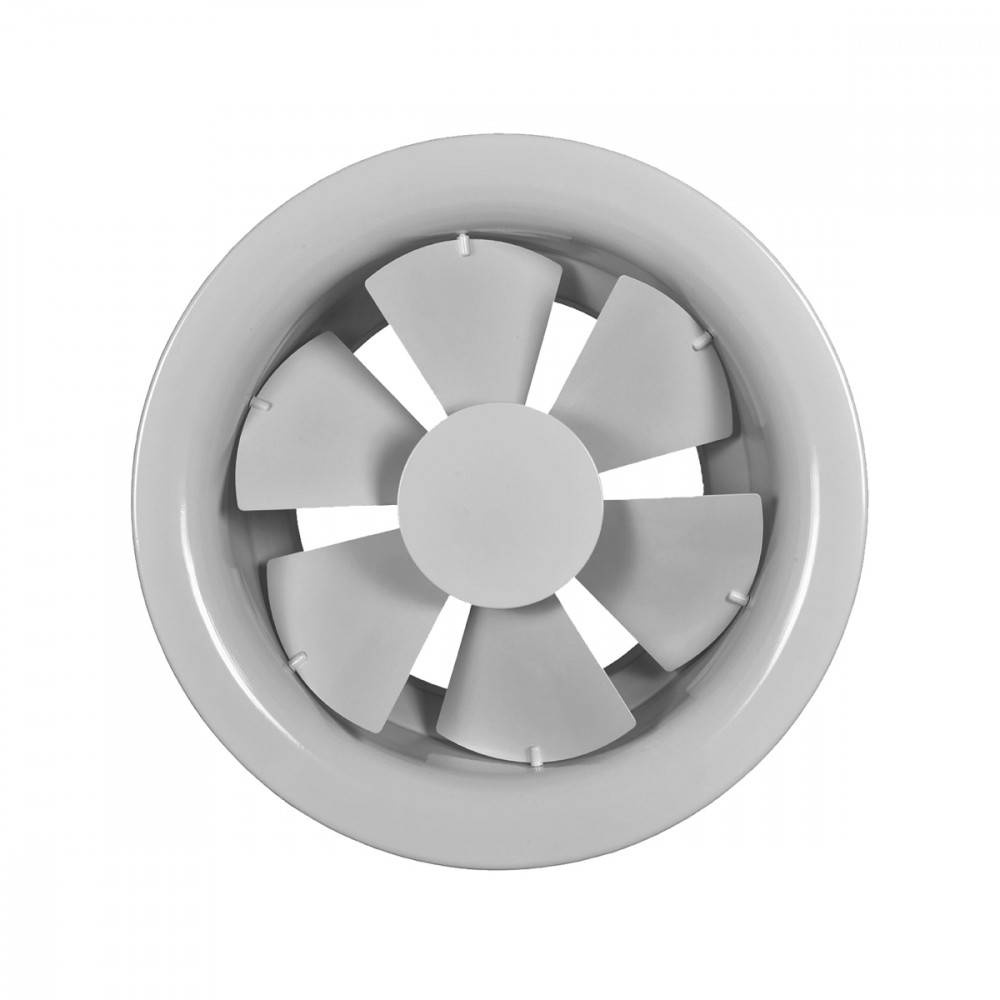

DCGT
CHARACTERISTICS:
Variable geometry circular diffusers by thermostatic actuator. CONSTRUCTION:
Bell in aluminium, fins in steel, finish painted white RAL 9010. Diameter 500 and 630 mm with reinforced blades.
UTILIZATION:
For ceiling or wall installation and for air delivery.
Installation height: 2,5 - 20 m.
FIXING:
Fixing by screws on neck diffuser. ACCESSORIES:
• Galvanized steel connecting plenum with insulation and calibration damper. Dimensions
BxH mm= Nominal dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DCGT 200 |
0,0314 |
310 |
950 |
39 |
64 |
2,1 |
6,7 |
10 |
50 |
|
DCGT 250 |
0,0491 |
460 |
1410 |
38 |
62 |
2,4 |
7,7 |
10 |
50 |
|
DCGT 315 |
0,0779 |
700 |
2140 |
37 |
61 |
2,9 |
9,1 |
10 |
50 |
|
DCGT 400 |
0,1257 |
1080 |
3280 |
36 |
60 |
3,6 |
11,2 |
10 |
50 |
|
DCGT 500 |
0,1963 |
1620 |
4900 |
35 |
59 |
4,5 |
14,5 |
10 |
50 |
|
DCGT 630 |
0,3117 |
2450 |
7420 |
34 |
58 |
6,1 |
20,9 |
10 |
50 |
Accessories and configurations
PDC
1= Optional damper
PDCI
1= Optional damper
2= Insulation
Instructions
FLOW IN COOLING
1= Termostatic actuator
FLOW IN HEATING
1= Termostatic actuator
DCGT
On bracket of diffuser with thermosatic regulation there is a thermostatic actuator.
Thermal actuator feels temperature and adjusts angle of the blades automatically.
Temperature range is from 15oC to 30oC.
Additional source of energy and electric installation is unnecessary.
Specifications text
CIRCULAR DIFFUSER IN ALUMINIUM/GALVANISED STEEL RAL9010 WITH VARIABLE GEOMETRY VIA THERMOSTATIC ACTUATOR
CONSTRUCTION:
Aluminium bell, steel blades, RAL 9010 white painted finish.
Diameter 500 and 630 mm with reinforced blades.
USE:
Ceiling or wall, for air supply. Installation height:2.5 - 20 m.
INSTALLATION:
Fixing by screws on the neck of the diffuser.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation and control damper.
MODEL:DCGT**/***
