CFCRC

CHARACTERISTICS:

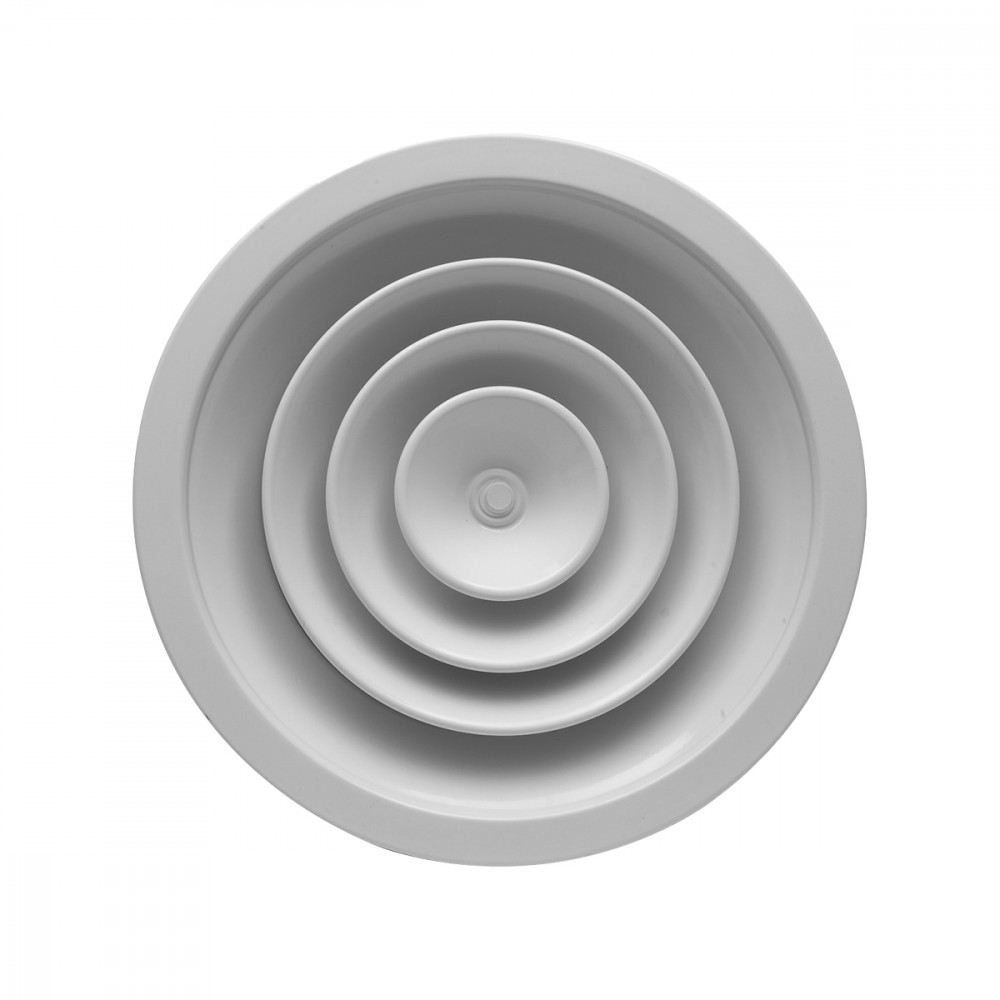

Circular diffusers with fixed cones and removabel core and butterfly damper.

CONSTRUCTION:

White RAL 9016 painted aluminium and airtight seal.

UTILIZATION:

For ceiling installation and for air intake and delivery.
Installation height: 2,6 – 4,1 m.

FIXING:

Fixing by concealed fixing screws mounted on the diffuser neck or with mounting bridge.

ACCESSORIES:

Fixing ring.

Dimensions

CFCRC

1= Fixing bridge

CFCRCCF

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) -Y(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
CFCRC 150	0,0102	110	280	-	38	1	2,1	10	50
CFCRC 200	0,0227	270	670	-	45	1,5	3,2	10	50
CFCRC 250	0,0366	460	1140	24	50	1,9	4,2	10	50
CFCRC 300	0,0519	680	1670	28	53	2,2	5,1	10	50
CFCRC 350	0,0684	920	2260	31	56	2,6	6	10	50

Accessories and configurations

CF

Fixing ring Ø 150, Ø 200, Ø 250

Polycarbonate

CF

Fixing ring Ø 300, Ø 350

Steel

Instructions

MOUNTING

Specifications text

CIRCULAR DIFFUSER WITH FIXED CONES IN ALUMINUM RAL9016 WITH REMOVABLE CENTRAL PART AND BUTTERFLY PVC DAMPER

CONSTRUCTION:
RAL 9016 white painted aluminium and airtight gasket.
USE:
On the ceiling, for air supply and return. Installation height:2.6 - 4.1 m
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser or with mounting bridge.
ACCESSORIES: Fixing collar.
MODEL: CFCRC***
