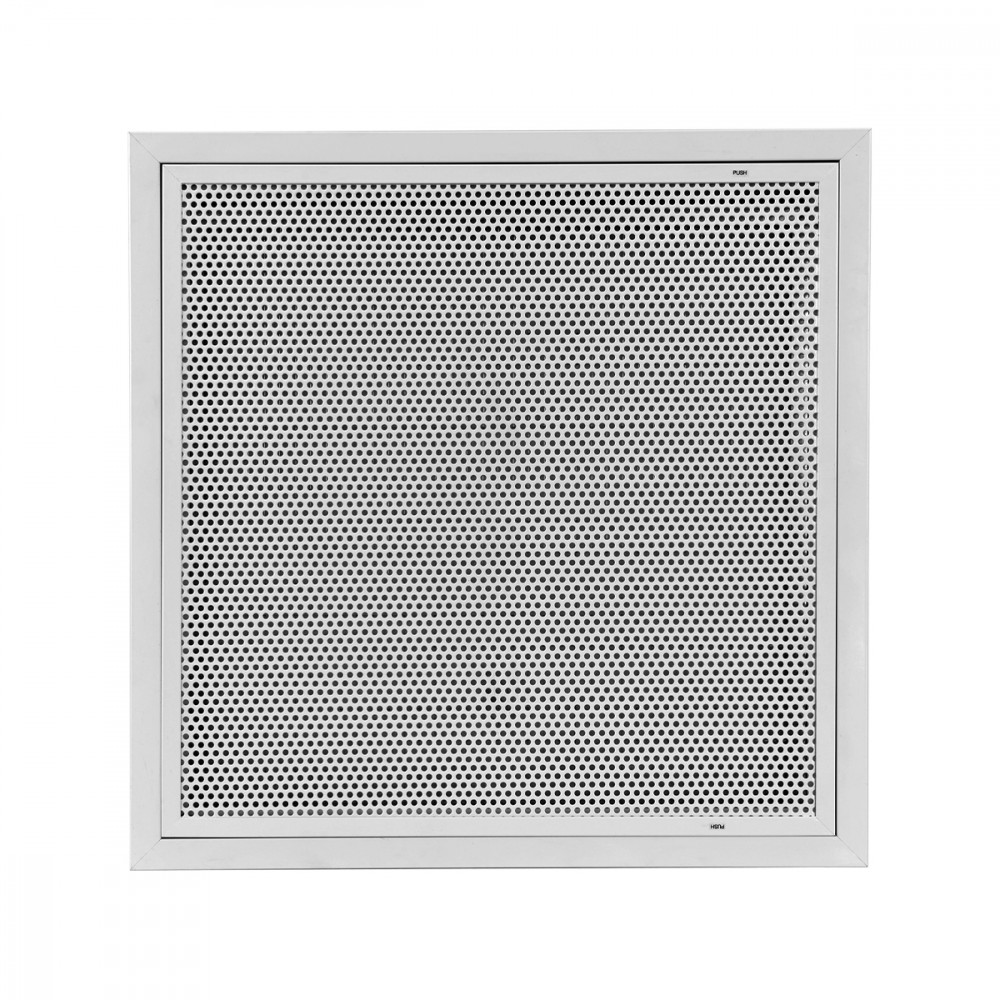

BQF60SMF

CHARACTERISTICS:

Perfored face square diffusers predisposed for filter insertion, for false ceiling, 595x595 mm overall size.

CONSTRUCTION:

Frame in aluminium, perfored sheet steel painted white RAL 9010.

UTILIZATION:

For ceiling installation for air return.
Installation height: 2,5 - 4,0 m.

FIXING:

Clips (frontal screws on request).

ACCESSORIES:

• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.

Dimensions

BQFSMF

1= Push-pull 2= Filter

BQFSM

1= Push-pull

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) -Y(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
BQFSM	0,1431	800	1800	37	63	3,5	7,9	10	50
BQFSMF	0,1431	380	1080	< 20	47	-	-	10	50

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm

PDZI2

Plenum externally insulated thickness 6 mm

Instructions

BQF60SMF

Specifications text

SQUARE DIFFUSER IN GALVANISED STEEL/ALUMINIUM RAL9010 PERFORATED, FILTER HOLDER WITH PUSH/PULL OPENING SYSTEM.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Aluminium frame, perforated sheet steel painted white RAL 9010.
USE:
On the ceiling, for air return function. Installation height:2.5 - 4.0 m
INSTALLATION:
Clips (front screws on request).
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
MODEL: BQF60SMF
SIZES:595 x 595 mm.
