DIFFUSERS

BQC

CHARACTERISTICS:

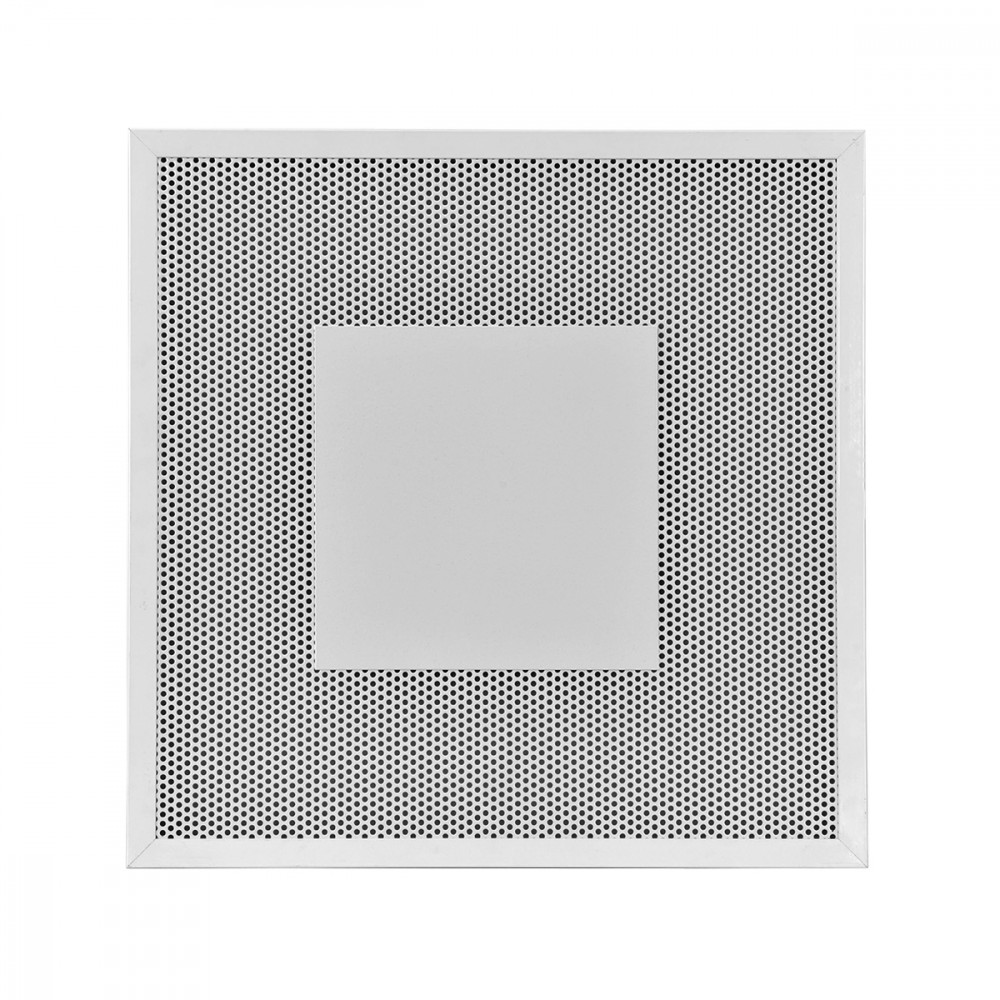

Perfored face square diffusers with central plug, 595x595 mm overall size.
CONSTRUCTION:
Frame in aluminium, perfored sheet steel painted white RAL 9010.
UTILIZATION:
For ceiling installation and for air intake (BQF-SM) and delivery (BQF-SMF).
Installation height: 2,5 – 4,0 m.
FIXING:
Clips (frontal screws on request).
ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
• Deflectors for throw orientation.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) -Y(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

BQCM

0,1044

590

1310

36

62

1,8

4

10

50

BQCR

0,1044

390

880

< 20

30

-

-

10

50

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm



PDZI2

Plenum externally insulated thickness 6 mm


Specifications text

SQUARE DIFFUSER IN GALVANISED STEEL/ALUMINIUM RAL9010 PERFORATED, WITH SOLID CENTRAL PLATE.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Aluminium frame, perforated sheet steel painted white RAL 9010.
USE:
On the ceiling, for air supply and return. Installation height: 2.5 - 4.0 m
INSTALLATION:
Clips (front screws on request).
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
• Deflectors for throw orientation.
MODEL: BQC
SIZES:595 x 595 mm.
