DIFFUSERS

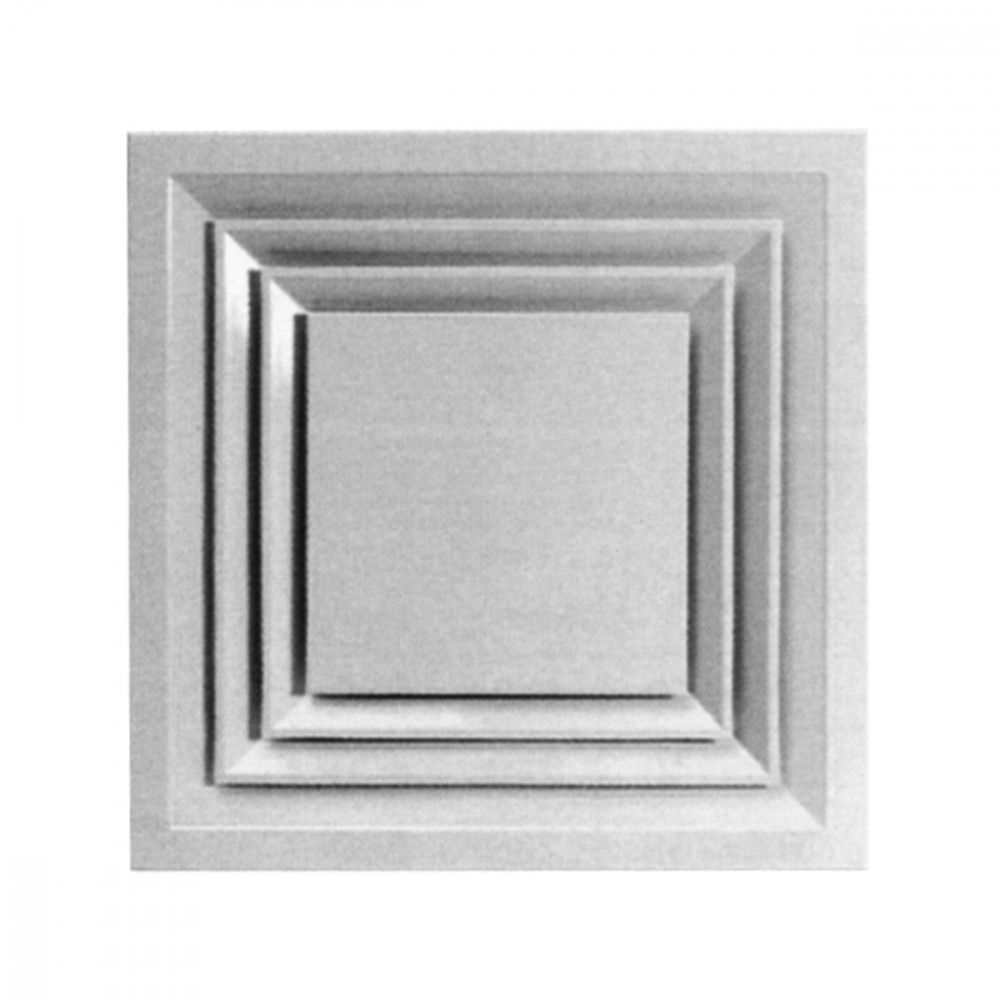

AQNT

CHARACTERISTICS:
Multidirection diffuser with 4 ways on 595x595 panel and closed central plug.
CONSTRUCTION:
Aluminium painted white RAL 9016.
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5.
FIXING:
Fixing by using screws on the diffuser neck.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm

PDZI2

Plenum externally insulated thickness 6 mm
CHOICE AND SIZING

Mod.

Ak [m2]

N. way

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

AQNT4

0,0698

4

740

1660

< 20

38

1,18

5,88

10

50

AQNT3

0,0631

4

650

1460

< 20

39

1,19

5,97

10

50

AQNT2

0,0542

4

540

1200

< 20

41

1,22

6,1

10

50

AQNT1

0,0438

4

410

920

< 20

43

1,26

6,29

10

50

Instructions

CONNECTING TO SQUARE DUCT

Insert the diffuser into the duct.

Fix the diffuser by screws.



CONNECTING TO FLEXIBLE DUCT BY PLENUM

Insert the diffuser into the plenum PDZ1/PDZ2

Fix the diffuser by screws.

1= Flexible



CONNECTING TO FLEXIBLE DUCT BY PLENUM

Insert the diffuser into the plenum PDZ1/PDZ2

Fix the diffuser by screws.

1= Flexible



REFISTERING

It is possible to install a damper for any configuration.

Fix the damper by clips on the diffuser.


Specifications text

MULTIDIRECTIONAL 4-WAY ALUMINIUM DIFFUSER RAL9010 WITH PANEL WITH CLOSED CENTRAL PART.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
White painted aluminium RAL 9010.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: AQNT**
SIZES:595 x 595 mm.
