Products
DIFFUSERS

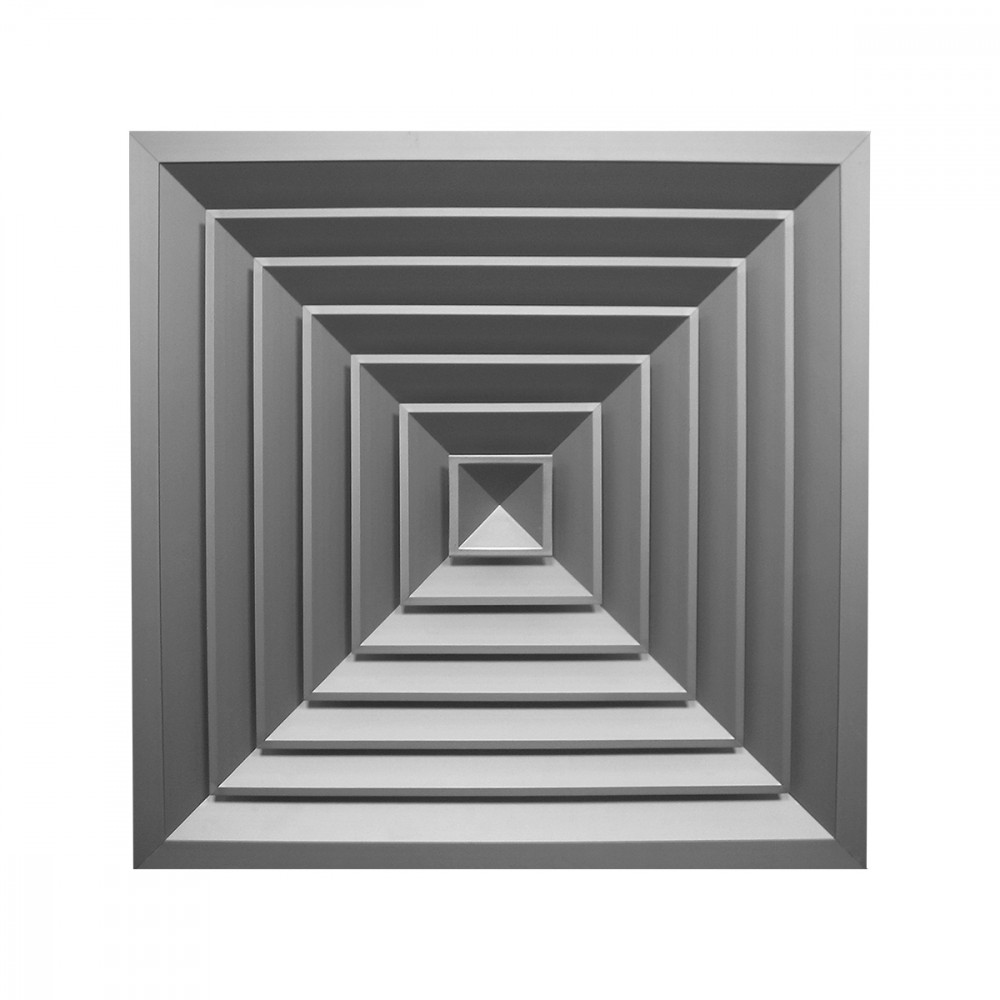

AQNA
CHARACTERISTICS:
Multi-directional 4-way diffusers with removable central part. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 3,1 m.
FIXING:
By using screws on the diffuser neck. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
E = Hole size
CHOICE AND SIZING
|
BxH mm |
Ak [m2] |
N. way |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
|||
|
AQNA 150x150 |
0,0094 |
4 |
100 |
210 |
< 20 |
29 |
0,8 |
3,99 |
10 |
50 |
|
AQNA 225x225 |
0,0194 |
4 |
200 |
460 |
< 20 |
34 |
0,92 |
4,61 |
10 |
50 |
|
AQNA 300x300 |
0,0332 |
4 |
360 |
810 |
< 20 |
39 |
1,03 |
5,14 |
10 |
50 |
|
AQNA 375x375 |
0,0511 |
4 |
570 |
1270 |
< 20 |
42 |
1,12 |
5,6 |
10 |
50 |
|
AQNA 450x450 |
0,0729 |
4 |
830 |
1850 |
< 20 |
45 |
1,2 |
6,01 |
10 |
50 |
|
AQNA 600x600 |
0,1284 |
4 |
1510 |
3370 |
24 |
50 |
1,35 |
6,73 |
10 |
50 |

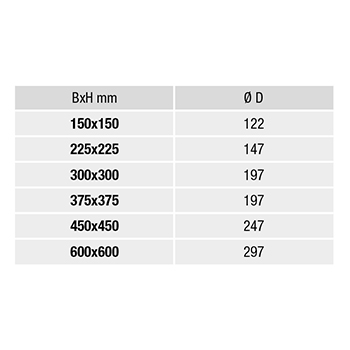

Accessories and configurations
PDZ1
PDZ2
PDZI1
Plenum externally insulated thickness 6 mm
PDZI2
Plenum externally insulated thickness 6 mm
ACCESORIES
Spigot plenum PDZ1 PDZ2
Instructions
SAFETY INSTALLATION
Safety system
CONNECTING TO SQUARE DUCT
Insert the diffuser into the duct.
Fix the diffuser by screws.
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
REFISTERING
It is possible to install a damper for any configuration.
Fix the damper by clips on the diffuser.
Specifications text
MULTIDIRECTIONAL 4-WAY ALUMINIUM DIFFUSER WITH REMOVABLE CENTRAL PART.
FEATURES:
Multidirectional 4-way diffuser with removable central part.
CONSTRUCTION:
Anodised aluminium.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: AQNA
SIZES: *** x *** mm.
