Products
DIFFUSERS

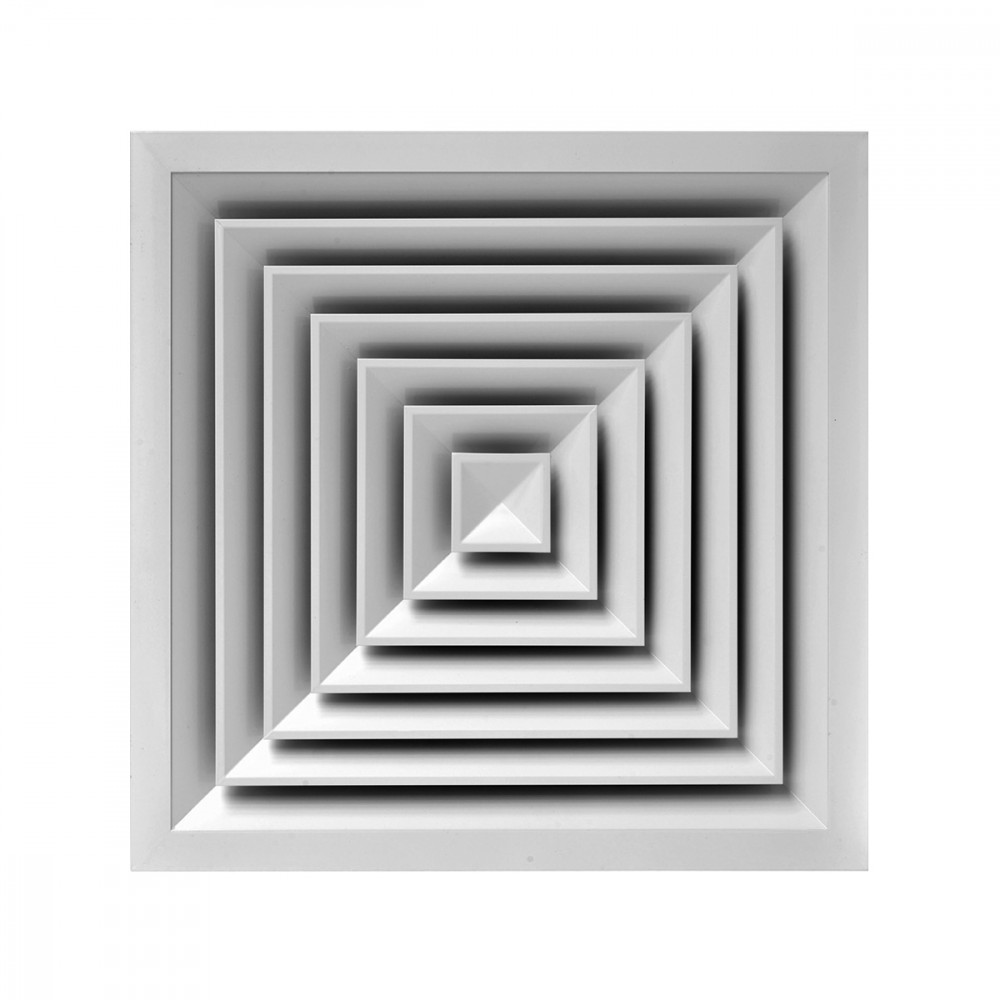

AQN
CHARACTERISTICS:
Multi-directional 4-way diffusers with removable central part. CONSTRUCTION:
Aluminium powder coated white RAL 9010. UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 3,1 m.
FIXING:
By using screws on the diffuser neck. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
E = Hole size
CHOICE AND SIZING
|
BxH mm |
Ak [m2] |
N. way |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
|||
|
AQN 150x150 |
0,0094 |
4 |
100 |
210 |
< 20 |
29 |
0,8 |
3,99 |
10 |
50 |
|
AQN 225x225 |
0,0194 |
4 |
200 |
460 |
< 20 |
34 |
0,92 |
4,61 |
10 |
50 |
|
AQN 300x300 |
0,0332 |
4 |
360 |
810 |
< 20 |
39 |
1,03 |
5,14 |
10 |
50 |
|
AQN 375x375 |
0,0511 |
4 |
570 |
1270 |
< 20 |
42 |
1,12 |
5,6 |
10 |
50 |
|
AQN 450x450 |
0,0729 |
4 |
830 |
1850 |
< 20 |
45 |
1,2 |
6,01 |
10 |
50 |
|
AQN 600x600 |
0,1284 |
4 |
1510 |
3370 |
24 |
50 |
1,35 |
6,73 |
10 |
50 |
Accessories and configurations
PDZ1
PDZ2
PDZI1
Plenum externally insulated thickness 6 mm
PDZI2
Plenum externally insulated thickness 6 mm
ACCESORIES
Spigot plenum PDZ1 PDZ2
Instructions
SAFETY INSTALLATION
Safety sistem
CONNECTING TO SQUARE DUCT
Insert the diffuser into the duct.
Fix the diffuser by screws.
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
REFISTERING
It is possible to install a damper for any configuration.
Fix the damper by clips on the diffuser.
Specifications text
MULTIDIRECTIONAL 4-WAY ALUMINIUM DIFFUSER RAL 9010 WITH REMOVABLE CENTRAL PART.
CONSTRUCTION:
White painted aluminium RAL 9010.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: AQN
SIZES: *** x *** mm.
