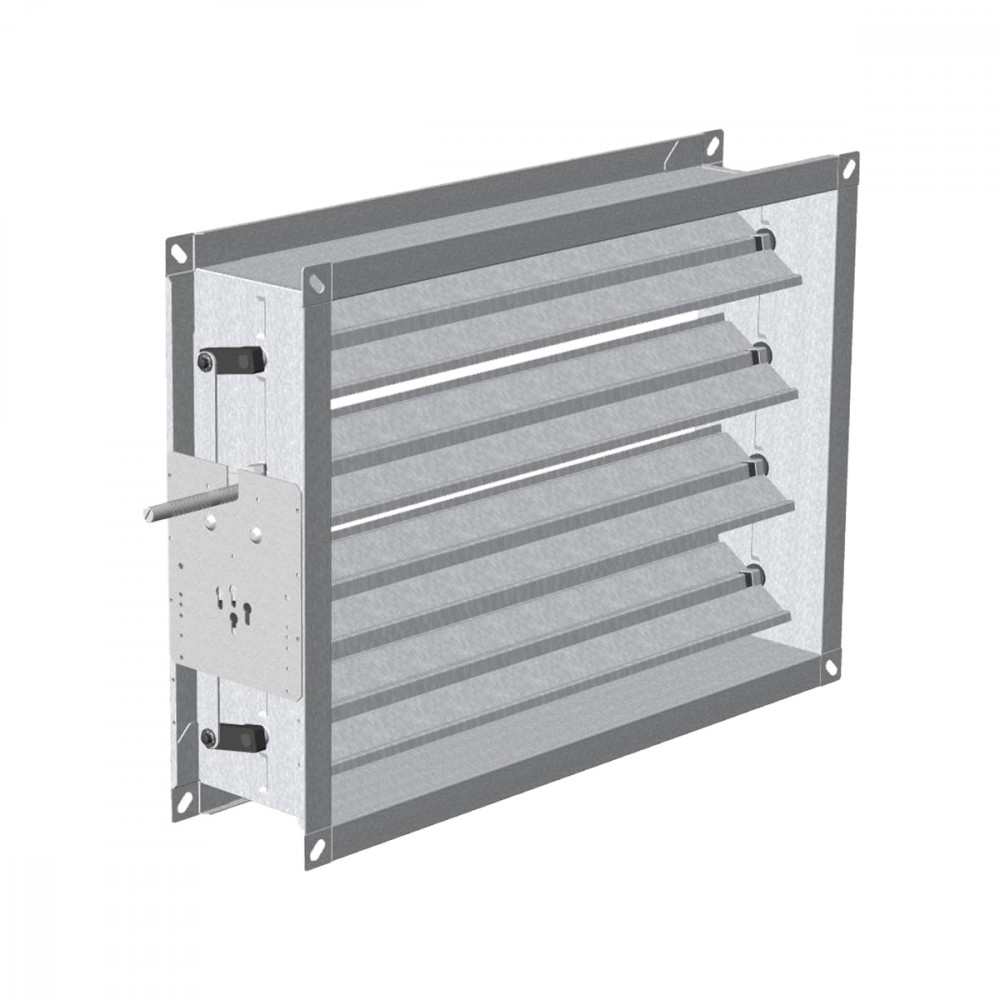

SRC200

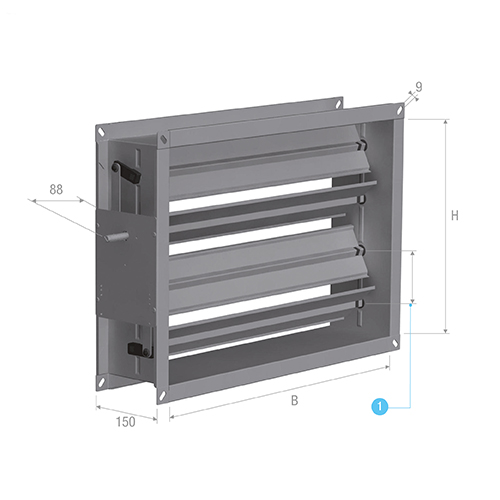

Dimensions

SRC200

Hole Ø 9 mm / Pitch 300 mm

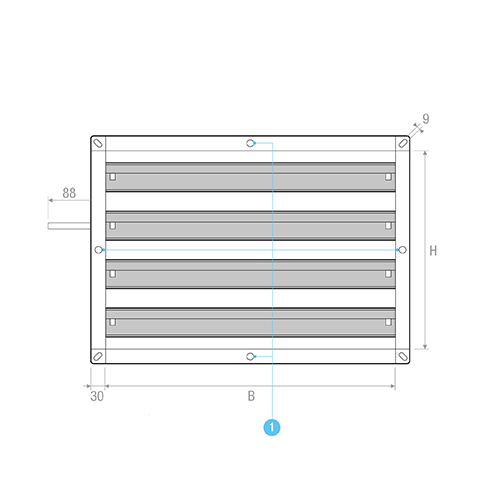

SRC200

1= Pitch 200

CHOICE AND SIZING

Mod.	A1 [m2]	v [m/s]		Q [m3/h]		Dp (ꭤ=40°) [Pa]		LWA (ꭤ=40°) [dB(A)]
Mod.	A1 [m2]	min	max	min	max	min	max	min	max
SRC200 400x410	0,1640	3	6	1770	3540	54	216	51	68
SRC200 600x410 - 400x610	0,2460	3	6	2660	5310	54	216	53	70
SRC200 800x410 - 400x810	0,3280	3	6	3540	7080	54	216	54	72
SRC200 1000x410 - 400x1010	0,4100	3	6	4430	8860	54	216	55	72
SRC200 1200x410 - 400x1210	0,4920	3	6	5310	10630	54	216	56	73
SRC200 1400x410 - 400x1410	0,5740	3	6	6200	12400	54	216	57	74
SRC200 1500x410	0,6150	3	6	6640	13280	54	216	57	74
SRC200 600x610	0,3660	3	6	3950	7910	54	216	55	72
SRC200 800x610 - 600x810	0,4880	3	6	5270	10540	54	216	56	73
SRC200 1000x610 - 600x1010	0,6100	3	6	6590	13180	54	216	57	74
SRC200 1200x610 - 600x1210	0,7320	3	6	7910	15810	54	216	58	75
SRC200 1400x610 - 600x1410	0,8540	3	6	9220	18450	54	216	59	76
SRC200 1500x610	0,9150	3	6	9880	19760	54	216	59	76
SRC200 800x810	0,6480	3	6	7000	14000	54	216	57	74
SRC200 1000x810 - 800x1010	0,8100	3	6	8750	17500	54	216	58	75
SRC200 1200x810 - 800x1210	0,9720	3	6	10500	21000	54	216	59	76
SRC200 1400x810 - 800x1410	1,1340	3	6	12250	24490	54	216	60	77
SRC200 1500x810	1,2150	3	6	13120	26240	54	216	60	77
SRC200 1000x1010	1,0100	3	6	10910	21820	54	216	59	76
SRC200 1200x1010 - 1000x1210	1,2120	3	6	13090	26180	54	216	60	77
SRC200 1400x1010 - 1000x1410	1,4140	3	6	15270	30540	54	216	61	78
SRC200 1500x1010	1,5150	3	6	16360	32720	54	216	61	78
SRC200 1200x1210	1,4520	3	6	15680	31360	54	216	61	78
SRC200 1400x1210 - 1200x1410	1,6940	3	6	18300	36590	54	216	61	79
SRC200 1500x1210	1,8150	3	6	19600	39200	54	216	62	79
SRC200 1400x1410	1,9740	3	6	21320	42640	54	216	62	79
SRC200 1500x1410	2,1150	3	6	22840	45680	54	216	62	80
SRC200 1500x1610	2,4150	3	6	26080	52160	54	216	63	80

Accessories and configurations

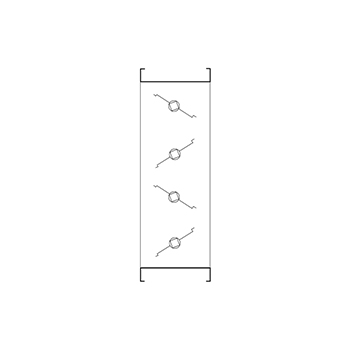

SRC200

Configuration

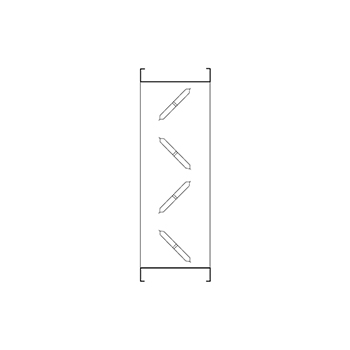

Standard blades

T10

Configuration

Veneered blades

SRC200

Configuration

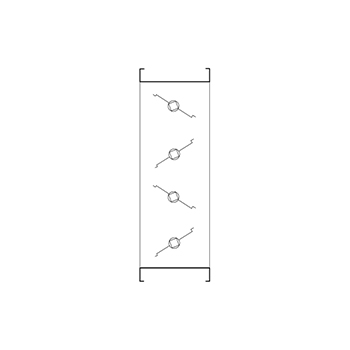

Opposed blades

SRC200P

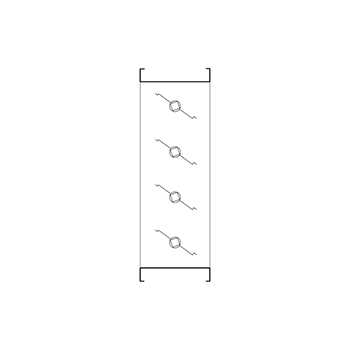

Configuration

Parallel blades

Instructions

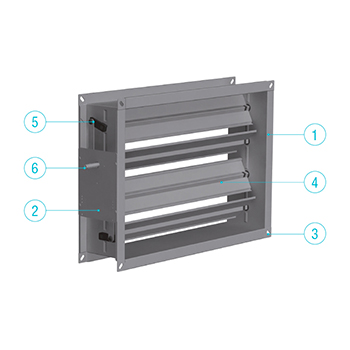

SRC200 (standard)

1) Flanged frame

2) Universal plate

3) Fixing slots

4) Calibration blades

5) Levers and pins nylon PA6

6) Control pin

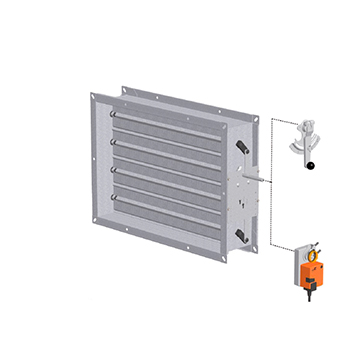

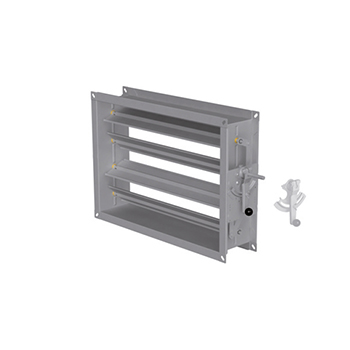

MANUAL CONTROL

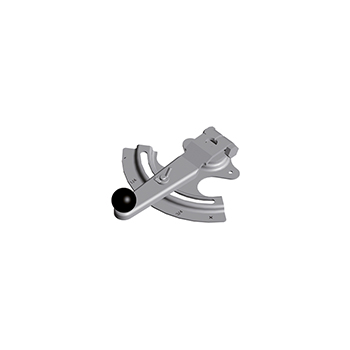

Code: CM10

UNIVERSAL PLATE (STANDARD)

MANUAL CONTROL

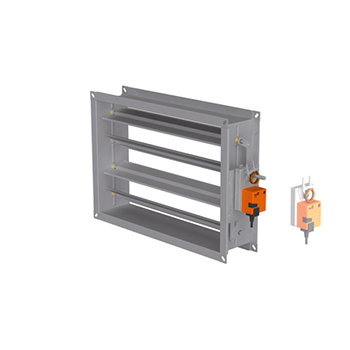

SERVOMOTOR

Specifications text

VOLUME CONTROL DAMPER WITH GALVANISED STEEL FRAME AND BLADES, NYLON ROTATION PINS, 200 MM PITCH

OPERATION:
Opposed or parallel movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC200-P: opposed blade damper with pin for servomotor (standard).
• SRC200-C: opposed blade damper with manual control (CM10).
• SRC200-PP: parallel blade dampers with pin for servomotor.
• SRC200-PPC: parallel blade damper with manual control (CM10).
• T10: veneered blades for greater air pressure sealing. (price increase + 30%)
