SRC100HT

Dimensions

SRC100HT

Hole Ø 9 mm / Pitch 300 mm

SRC100HT

1= Pitch 100

CHOICE AND SIZING

Mod.	A1 [m2]	v [m/s]		Q [m3/h]		Dp (ꭤ=40°) [Pa]		LWA (ꭤ=40°) [dB(A)]
Mod.	A1 [m2]	min	max	min	max	min	max	min	max
SRC100HT 200x210	0,0420	3	6	450	910	64	255	47	64
SRC100HT 400x210 - 200x410	0,0840	3	6	910	1810	64	255	50	67
SRC100HT 600x210 - 200x610	0,1260	3	6	1360	2720	64	255	52	69
SRC100HT 800x210 - 200x810	0,1680	3	6	1810	3630	64	255	53	70
SRC100HT 1000x210 - 200x1010	0,2100	3	6	2270	4540	64	255	54	71
SRC100HT 1200x210 - 200x1210	0,2520	3	6	2720	5440	64	255	55	72
SRC100HT 1400x210 - 200x1410	0,2940	3	6	3180	6350	64	255	55	73
SRC100HT 400x410	0,1640	3	6	1770	3540	64	255	53	70
SRC100HT 600x410 - 400x610	0,2460	3	6	2660	5310	64	255	55	72
SRC100HT 800x410 - 400x810	0,3280	3	6	3540	7080	64	255	56	73
SRC100HT 1000x410 - 400x1010	0,4100	3	6	4430	8860	64	255	57	74
SRC100HT 1200x410 - 400x1210	0,4920	3	6	5310	10630	64	255	58	75
SRC100HT 1400x410 - 400x1410	0,5740	3	6	6200	12400	64	255	58	76
SRC100HT 600x610	0,3660	3	6	3950	7910	64	255	56	74
SRC100HT 800x610 - 600x810	0,4880	3	6	5270	10540	64	255	58	75
SRC100HT 1000x610 - 600x1010	0,6100	3	6	6590	13180	64	255	59	76
SRC100HT 1200x610 - 600x1210	0,7320	3	6	7910	15810	64	255	59	77
SRC100HT 1400x610 - 600x1410	0,8540	3	6	9220	18450	64	255	60	77
SRC100HT 800x810	0,6480	3	6	7000	14000	64	255	59	76
SRC100HT 1000x810 - 800x1010	0,8100	3	6	8750	17500	64	255	60	77
SRC100HT 1200x810 - 800x1210	0,9720	3	6	10500	21000	64	255	61	78
SRC100HT 1400x810 - 800x1410	1,1340	3	6	12250	24490	64	255	61	78
SRC100HT 1000x1010	1,0100	3	6	10910	21820	64	255	61	78
SRC100HT 1200x1010 - 1000x1210	1,2120	3	6	13090	26180	64	255	62	79
SRC100HT 1400x1010 - 1000x1410	1,4140	3	6	15270	30540	64	255	62	79
SRC100HT 1200x1210	1,4520	3	6	15680	31360	64	255	62	80
SRC100HT 1400x1210 - 1200x1410	1,6940	3	6	18300	36590	64	255	63	80
SRC100HT 1400x1410	1,9740	3	6	21320	42640	64	255	64	81

Accessories and configurations

SRC100HT

Configuration

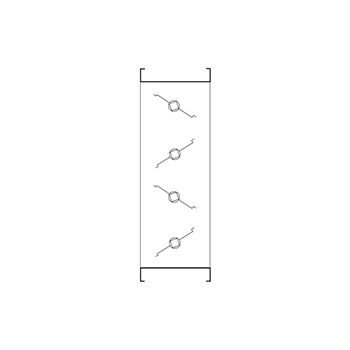

Standard blades

T10

Configuration

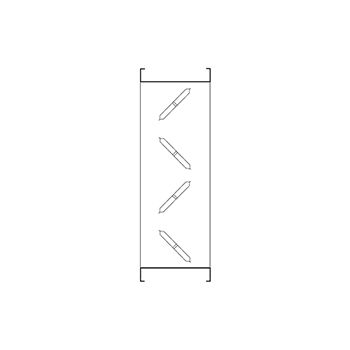

Veneered blades

SRC100HT

Configuration

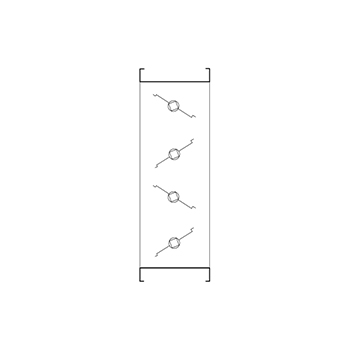

Opposed blades

SRC100HTP

Configuration

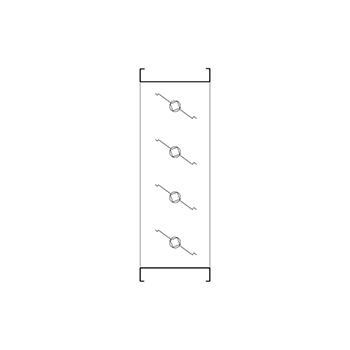

Parallel blades

Instructions

UNIVERSAL PLATE (STANDARD)

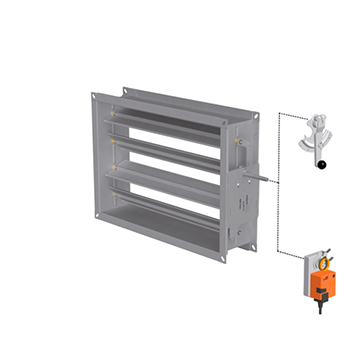

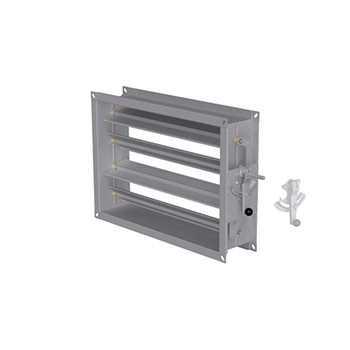

MANUAL CONTROL

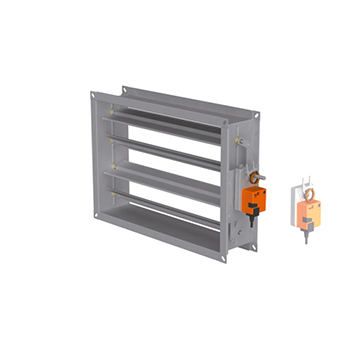

SERVOMOTOR

Specifications text

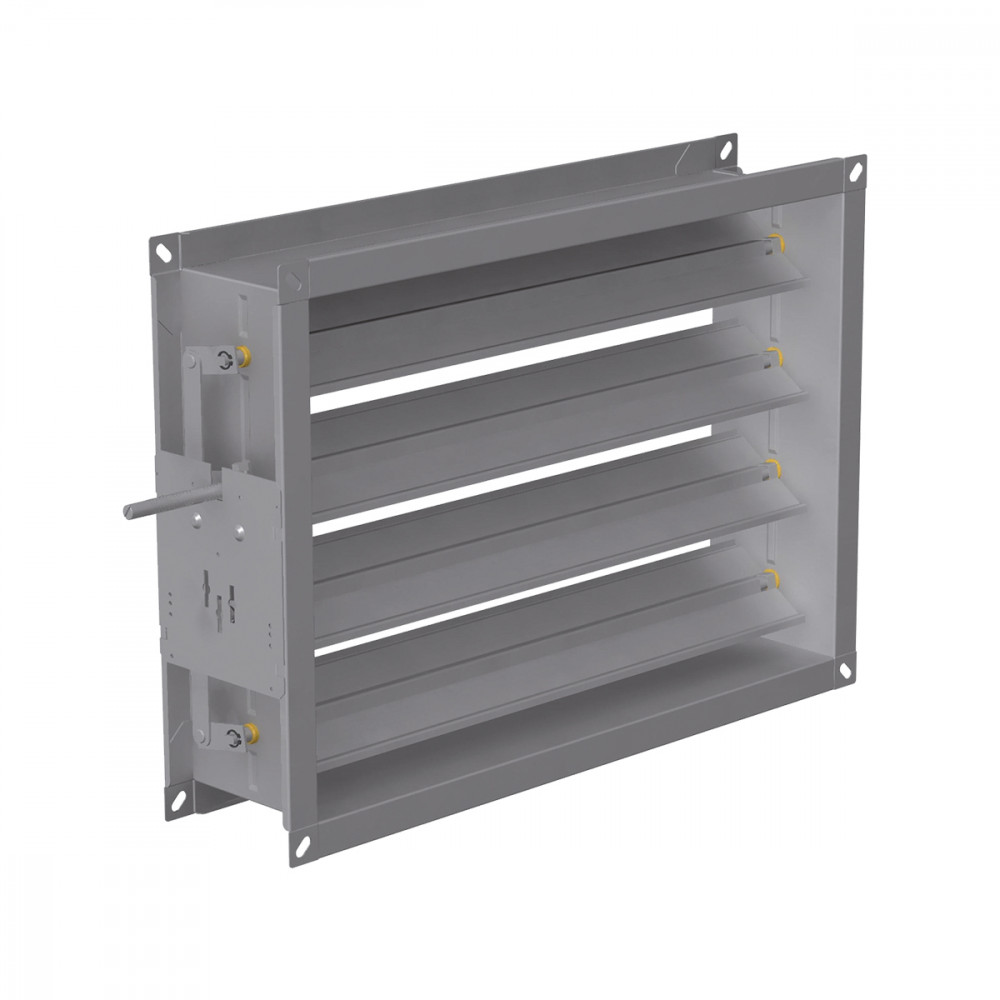

VOLUME CONTROL DAMPER IN GALVANISED STEEL FOR HIGH TEMPERATURES, 100 MM PITCH

OPERATION:
Opposed or parallel movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC100 HT-P: opposed blade damper with pin for servomotor (standard).
• SRC100 HT-C: opposed blade damper with manual control (CM10).
• SRC100 HT-PP: parallel blade dampers with pin for servomotor.
• SRC100 HT-PPC: parallel blade damper with manual control (CM10).
• T10: veneered blades for greater air pressure sealing. (price increase + 30%)
