RPCM

CHARACTERISTICS:

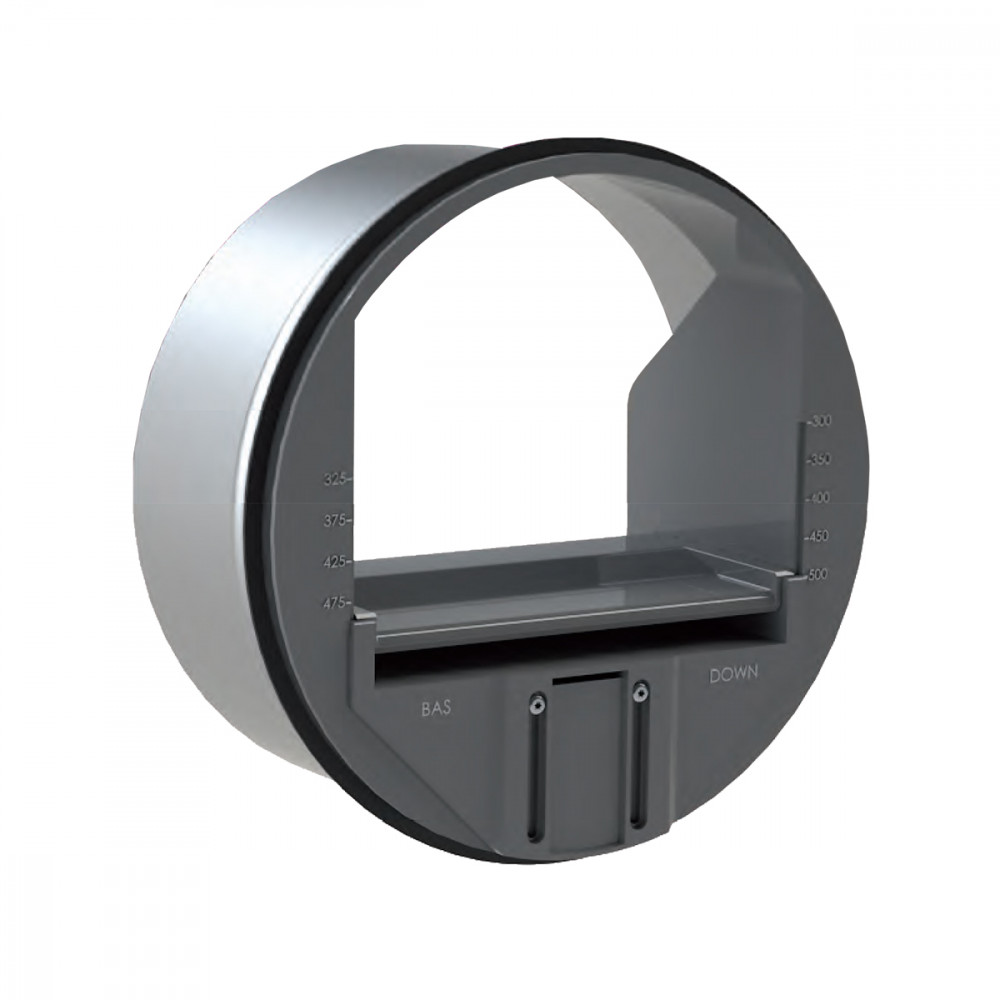

Regulation module in PVC positioned in a plastic sleeve, with air-tight gasket. The regulating components consist of a PVC blade with a balancing spring and a damper piston.

Air flow setting: Adjustable flow rate (within the working range) by loosening the front screw and manually moving the piece of regulation. The graduated scale on the side of the opening shows the air flow range set.

DETAILS:

Applications: Maintaining a constant air flow in a range of pressure between 50 and 200 Pa.

Dimensions

RPCM

1= Sleeve with lip seal 2= Cale (according to the air flow) 3= Regulator casing 4= Piece of regulation 5= Air flow setting 6= Screw to fix the air flow

RPCM

1= Sleeve with lip seal 2= Cale (according to the air flow) 3= Regulator casing 4= Piece of regulation 5= Air flow setting 6= Screw to fix the air flow

MEASURES

CHOICE AND SIZING

Mod.	Q [m3/h]		Dp [Pa]		LWA [dB(A)]
Mod.	min	max	min	max	min	max
RPCM80	15	50	50	250	25	40
RPCM100	15	100	50	250	25	43
RPCM125	15	180	50	250	25	47
RPCM150	15	300	50	250	27	48
RPCM160	15	300	50	250	30	49
RPCM-200	15	500	50	250	34	53
RPCM250	50	750	50	250	35	55

Specifications text

CIRCULAR REGULATION MODULE CONSISTING OF A PLASTIC SLEEVE AND A PVC REGULATION MODULE, WITH AIRTIGHT GASKET.

APPLICATIONS:
Maintaining a constant flow rate in a pressure range between 50 and 250 Pa.
FLOW RATE SETTING:
Flow rate can be set (within the working range) by loosening the front screw and manually moving the regulating piece. The graduation on the sides of the opening indicates the flow rate set.
