DBS
CHARACTERISTICS:
Circular Shut-off damper
leakage certified class 4
according to EN 1751. CONSTRUCTION:
Galvanized steel frame.
Galvanized steel blade with
airtight gasket. FIXING:
Coupling with gasket. DETAILS:
DRIVE:
Prepared for manual device or
servo motor.
ARTICLE DESCRIPTION:

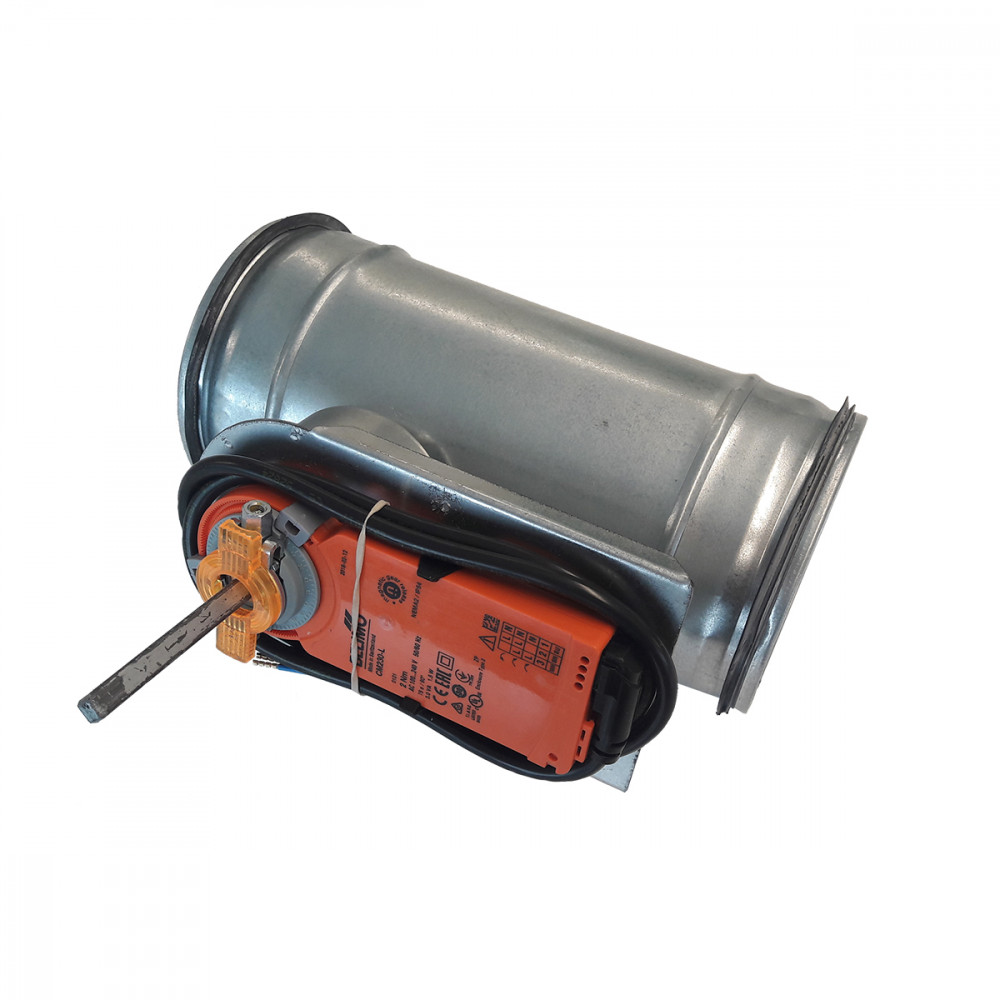

DBSP: circular damper with
pin for servomotor (standard).
DBSC: circular damper with
manual control. Dimensions
Isometric view
Isometric view
CHOICE AND SIZING
|
Mod. |
A1 [m2] |
v [m/s] |
Q [m3/h] |
Dp (ꭤ=40°) [Pa] |
LWA (ꭤ=40°) [dB(A)] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DBS80 |
0,0050 |
3 |
6 |
55 |
110 |
51 |
205 |
41 |
57 |
|
DBS100 |
0,0079 |
3 |
6 |
80 |
170 |
51 |
205 |
42 |
58 |
|
DBS125 |
0,0123 |
3 |
6 |
130 |
270 |
51 |
205 |
43 |
58 |
|
DBS150 |
0,0176 |
3 |
6 |
190 |
380 |
51 |
205 |
44 |
58 |
|
DBS160 |
0,0201 |
3 |
6 |
220 |
430 |
51 |
205 |
44 |
58 |
|
DBS200 |
0,0314 |
3 |
6 |
340 |
680 |
51 |
205 |
45 |
61 |
|
DBS250 |
0,0491 |
3 |
6 |
530 |
1060 |
51 |
205 |
46 |
61 |
|
DBS315 |
0,0779 |
3 |
6 |
840 |
1680 |
51 |
205 |
47 |
61 |
|
DBS355 |
0,0990 |
3 |
6 |
1070 |
2140 |
51 |
205 |
47 |
61 |
|
DBS400 |
0,1257 |
3 |
6 |
1360 |
2710 |
51 |
205 |
48 |
62 |
Instructions

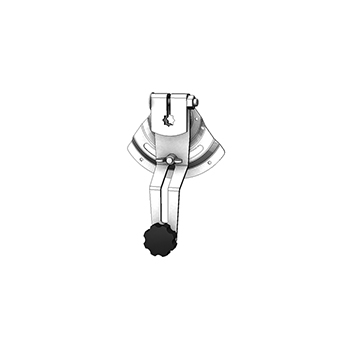

MANUAL CONTROL
Code: CM 10/T
Specifications text
DBSC
CIRCULAR SHUT-OFF DAMPER WITH GALVANISED STEEL CASING, GALVANISED STEEL BLADE WITH AIRTIGHT GASKET.
CERTIFIED IN CLASS 4 ACCORDING TO EN 1751
OPERATION:
Manual control.
INSTALLATION:
Coupling with airtight gaskets.
DBSP
CIRCULAR SHUT-OFF DAMPER WITH GALVANISED STEEL CASING, GALVANISED STEEL BLADE WITH AIRTIGHT GASKET.
OPERATION:
Prepared for servomotor.
INSTALLATION:
Coupling with airtight gaskets.
