GRILLES

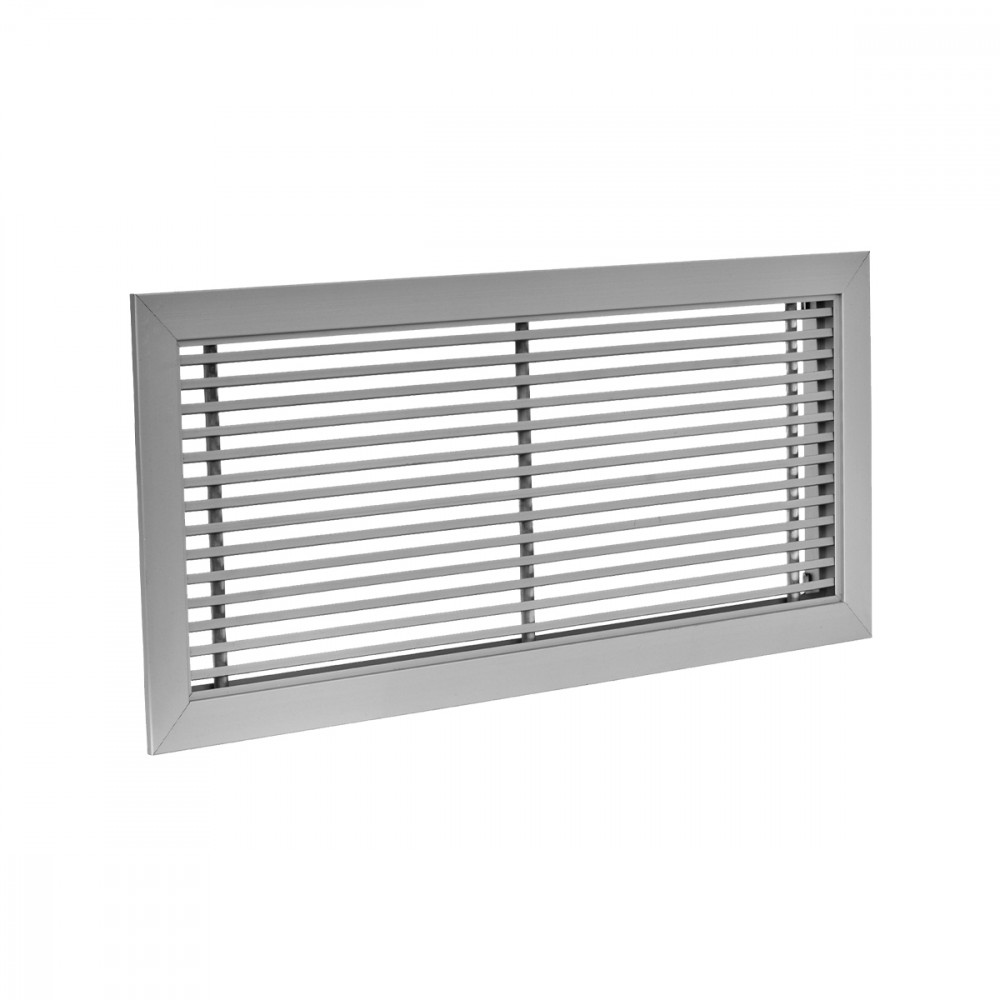

LAF

CHARACTERISTICS:
Grilles with fixed blades with 0° or 15° deflection.
CONSTRUCTION:
Anodized aluminium.
UTILIZATION:
For wall and fan-coils installation, and for air intake and delivery.
Installation height: 2,5 - 3,1 m.
FIXING:
• Standard fixing by clips.
• Holes for screws upon request.
• Magnets on request (CL).
• Lock upon request (KC).
ACCESSORIES:
• Calibration damper made of galvanized steel and fins with opposite movement.
• Mounting counterframes made of galvanized steel sheet.
Dimensions

LAFPR10/15


1= Hole dimension LAFPR10: Fixed horizontal bar grille deflection 0° LAFPR15: Fixed horizontal bar grille deflection 15° LAFPC-G: Series grilles can be fitted with single or double inspection doors, full (PC) or grill panel (PG).

LAF10/15


1= Hole dimension LAF10: Fixed horizontal bar grille deflection 0° with removable bars core LAF15: Fixed horizontal bar grille deflection 15° with removable bars core LAFPC-G: Series grilles can be fitted with single or double inspection doors, full (PC) or grill panel (PG).

LAF20


1= Rear adjustable fins LAF20: Fixed horizontal bar grille deflection 0° with rear equaliser with adjustable vertical fins LAF25: Fixed horizontal bar grille deflection 15° with rear equaliser with adjustable vertical fins LAFPC-G: Series grilles can be fitted with single or double inspection doors, full (PC) or grill panel (PG).

LAG20


1= Hole dimension LAG20: Grille element consisting only of front bars 0°, without the frame LAG25: Grille element consisting only of front bars 15°, without the frame LAFPC-G: Series grilles can be fitted with single or double inspection doors, full (PC) or grill panel (PG).

LAF


LAF special execution

LAFFC


LAF special execution
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

LAF 400x75

0,0083

80

160

20

34

3,5

6,6

5

20

LAF 500x75

0,0129

120

240

22

35

4,2

8

5

20

LAF 600x75

0,0176

160

330

23

37

4,8

9,4

5

20

LAF 800x75

0,0268

250

500

26

39

6,1

11,7

5

20

LAF 1000x75

0,0361

330

680

27

41

6,9

13,8

5

20

LAF 1200x75

0,0453

420

850

29

42

7,9

15,5

5

20

LAF 200x100

0,0021

50

100

20

31

1,9

3,3

5

20

LAF 300x100

0,0083

80

160

20

34

3,5

6,6

5

20

LAF 400x100

0,0145

130

270

22

36

4,3

8,5

5

20

LAF 500x100

0,0206

190

390

24

38

5,3

10,3

5

20

LAF 600x100

0,0268

250

500

26

39

6,1

11,7

5

20

LAF 800x100

0,0392

360

730

28

41

7,3

14,2

5

20

LAF 1000x100

0,0515

470

970

29

43

8,3

16,6

5

20

LAF 1200x100

0,0638

590

1200

31

44

9,4

18,6

5

20

LAF 400x125

0,0206

190

390

24

38

5,3

10,3

5

20

LAF 500x125

0,0284

260

530

26

40

6,1

12,1

5

20

LAF 600x125

0,0361

330

680

27

41

6,9

13,8

5

20

LAF 800x125

0,0515

470

970

29

43

8,3

16,6

5

20

LAF 1000x125

0,0669

610

1250

31

45

9,5

19

5

20

LAF 1200x125

0,0823

760

1540

32

46

10,7

21,2

5

20

LAF 300x150

0,0176

160

330

23

37

4,8

9,4

5

20

LAF 400x150

0,0268

250

500

26

39

6,1

11,7

5

20

LAF 500x150

0,0361

330

680

27

41

6,9

13,8

5

20

LAF 600x150

0,0453

420

850

29

42

7,9

15,5

5

20

LAF 800x150

0,0638

590

1200

31

44

9,4

18,6

5

20

LAF 1000x150

0,0823

760

1540

32

46

10,7

21,2

5

20

LAF 1200x150

0,1008

930

1890

33

47

11,9

23,7

5

20

LAF 300x200

0,0268

250

500

26

39

6,1

11,7

5

20

LAF 400x200

0,0392

360

730

28

41

7,3

14,2

5

20

LAF 500x200

0,0515

470

970

29

43

8,3

16,6

5

20

LAF 600x200

0,0638

590

1200

31

44

9,4

18,6

5

20

LAF 800x200

0,0885

810

1660

32

46

11

22,1

5

20

LAF 1000x200

0,1132

1040

2120

34

47

12,6

25,2

5

20

LAF 1200x200

0,1379

1270

2590

35

49

14

28

5

20

LAF 400x300

0,0638

590

1200

31

44

9,4

18,6

5

20

LAF 500x300

0,0823

760

1540

32

46

10,7

21,2

5

20

LAF 600x300

0,1008

930

1890

33

47

11,9

23,7

5

20

LAF 800x300

0,1379

1270

2590

35

49

14

28

5

20

LAF 1000x300

0,1749

1610

3280

36

50

15,8

31,8

5

20

LAF 1200x300

0,2119

1950

3970

37

51

17,5

35,2

5

20

LAF 1000x400

0,2366

2170

4440

38

52

18,5

37,4

5

20

LAF 1200x400

0,2859

2630

5360

39

53

20,5

41,4

5

20
Accessories and configurations

SC

CT

CTKC

LAF

2 Holes

4 Holes

1= Ø 3,5 Countersunk hole



HOLE

Amount of holes for mounting screw

L<= Smaller side

L>= Longer side



PBZ1

PBZ2

PBZI1

Plenum externally insulated thickness 6 mm



PBZI2

Plenum externally insulated thickness 6 mm



1020

1= Bar profile



1525

1= Bar profile



LAF

Type of fixing

Fixing with clips

Standard



LAF

Type of fixing

Fixing with screws



LAF

Type of fixing

Fixing with magnets CL

CL: 2,00 € each

Each grille: 4 CL



LAF

Type of fixing

Fixing with clamps KC

KC: 4,00 € each

from200x100 to 1000x300: 2 KC

From400x400 to1000x500: 4 KC


Specifications text

ALUMINUM GRILLE WITH FIXED BLADES WITH 0° - 15° DEFLECTION

CONSTRUCTION:
Anodised aluminium.
USE:
On the wall or on fan-coils, on supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
• Standard fixing with clips.
• Holes for screws on request.
• Magnets on request (CL).
• Clamps on request (KC).
ACCESSORIES:
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
MODEL:
• Grille with fixed horizontal bars with 0° deflection - LAFPR10/*** x *** (Width x Height mm)
• Grille with fixed horizontal bars with 15° deflection - LAFPR15/*** x *** (Width x Height mm)
• Grille with fixed horizontal bars with 0° deflection with removable bar core - LAF10/*** x *** (Width x Height mm)
• Grille with fixed horizontal bars with 15° deflection with removable bar core - LAF15/*** x *** (Width x Height mm)
• Grille with fixed horizontal bars with 0° deflection with adjustable vertical rear blades - LAF20/*** x *** (Width x Height mm)
• Grille with fixed horizontal bars with 15° deflection with adjustable vertical rear blades - LAF25/*** x *** (Width x Height mm)
• Grille made up of only front bars with 0° deflection (without frame) - LAG20/*** x *** (Width x Height mm)
• Grille made up of only front bars with 15° deflection (without frame) - LAG25/*** x *** (Width x Height mm)
• Grille with single or double blind (PC) or grilled (PG) hatch.- LAFPC-G /*** x *** (Width x Height mm)
