GTAC
1= Hole dimension
GTAC
Particular insertion counterframe
Products
GRILLES

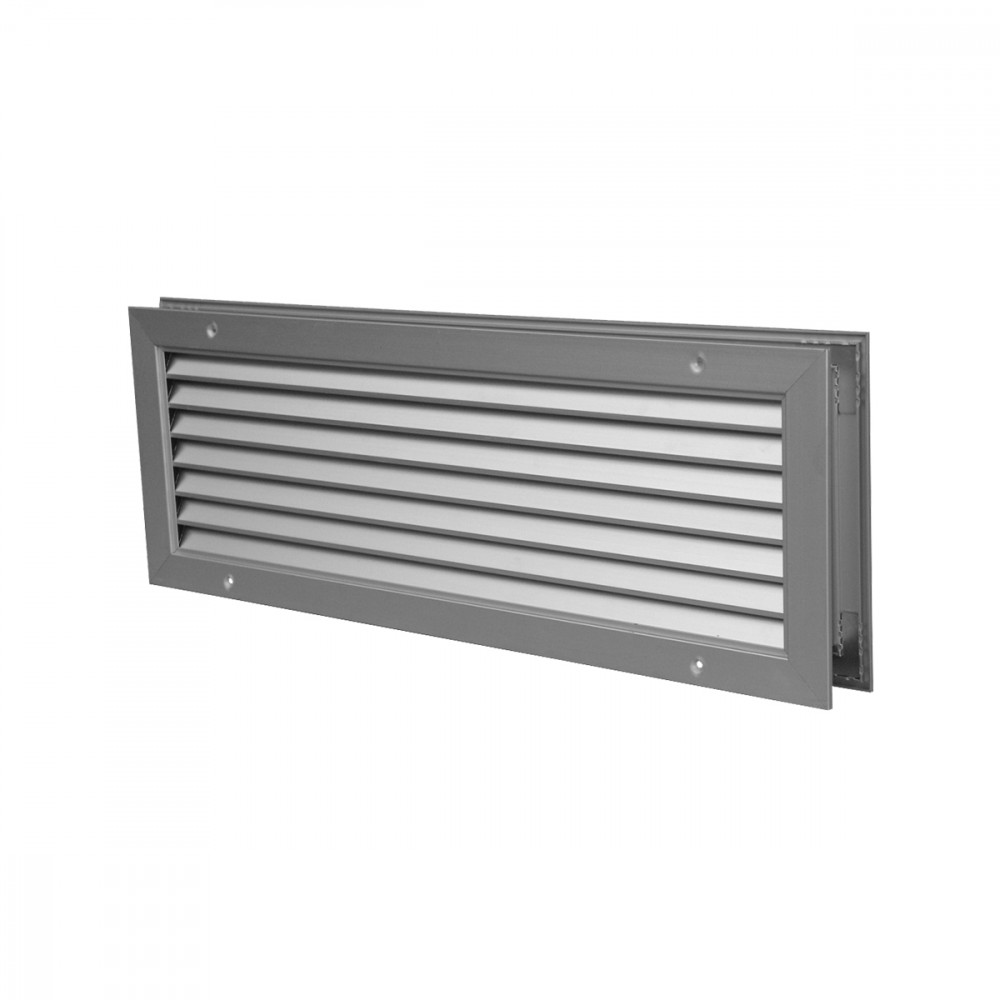

GTA
CHARACTERISTICS:
Transit grilles, 20 mm pitch. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For the air flow transit by doors and thin walls. FIXING:
• Fixing by using frontal screws. ACCESSORIES:
• Auxiliary frame. Dimensions
1= Hole dimension
Particular insertion counterframe
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
Dpt [Pa] |
|||
|
min |
max |
min |
max |
min |
max |
||
|
GTA 200x100 |
0,0140 |
30 |
60 |
24 |
39 |
5 |
20 |
|
GTA 300x100 |
0,0209 |
40 |
90 |
22 |
40 |
5 |
20 |
|
GTA 400x100 |
0,0276 |
60 |
120 |
24 |
40 |
5 |
20 |
|
GTA 500x100 |
0,0344 |
70 |
150 |
23 |
40 |
5 |
20 |
|
GTA 600x100 |
0,0411 |
90 |
180 |
25 |
40 |
5 |
20 |
|
GTA 700x100 |
0,0478 |
110 |
220 |
26 |
41 |
5 |
20 |
|
GTA 800x100 |
0,0545 |
120 |
250 |
25 |
41 |
5 |
20 |
|
GTA 900x100 |
0,0611 |
140 |
290 |
26 |
42 |
5 |
20 |
|
GTA 1000x100 |
0,0678 |
160 |
320 |
26 |
42 |
5 |
20 |
|
GTA 300x160 |
0,0330 |
70 |
140 |
24 |
39 |
5 |
20 |
|
GTA 400x160 |
0,0438 |
100 |
200 |
26 |
41 |
5 |
20 |
|
GTA 500x160 |
0,0545 |
120 |
250 |
25 |
41 |
5 |
20 |
|
GTA 600x160 |
0,0651 |
150 |
310 |
26 |
42 |
5 |
20 |
|
GTA 700x160 |
0,0757 |
180 |
360 |
26 |
42 |
5 |
20 |
|
GTA 800x160 |
0,0863 |
210 |
420 |
27 |
42 |
5 |
20 |
|
GTA 900x160 |
0,0968 |
230 |
480 |
26 |
43 |
5 |
20 |
|
GTA 1000x160 |
0,1073 |
260 |
530 |
27 |
43 |
5 |
20 |
|
GTA 200x200 |
0,0276 |
60 |
120 |
24 |
40 |
5 |
20 |
|
GTA 300x200 |
0,0411 |
90 |
180 |
25 |
40 |
5 |
20 |
|
GTA 400x200 |
0,0545 |
120 |
250 |
25 |
41 |
5 |
20 |
|
GTA 500x200 |
0,0678 |
160 |
320 |
26 |
42 |
5 |
20 |
|
GTA 600x200 |
0,0810 |
190 |
390 |
26 |
42 |
5 |
20 |
|
GTA 700x200 |
0,0942 |
230 |
460 |
27 |
42 |
5 |
20 |
|
GTA 800x200 |
0,1073 |
260 |
530 |
27 |
43 |
5 |
20 |
|
GTA 900x200 |
0,1204 |
300 |
610 |
27 |
43 |
5 |
20 |
|
GTA 1000x200 |
0,1335 |
330 |
680 |
27 |
43 |
5 |
20 |
|
GTA 300x300 |
0,0611 |
140 |
290 |
26 |
42 |
5 |
20 |
|
GTA 400x300 |
0,0810 |
190 |
390 |
26 |
42 |
5 |
20 |
|
GTA 500x300 |
0,1007 |
240 |
500 |
26 |
43 |
5 |
20 |
|
GTA 600x300 |
0,1204 |
300 |
610 |
27 |
43 |
5 |
20 |
|
GTA 400x400 |
0,1073 |
260 |
530 |
27 |
43 |
5 |
20 |
|
GTA 500x400 |
0,1335 |
330 |
680 |
27 |
43 |
5 |
20 |
|
GTA 600x400 |
0,1595 |
410 |
830 |
28 |
44 |
5 |
20 |
|
GTA 700x400 |
0,1855 |
480 |
980 |
28 |
44 |
5 |
20 |
|
GTA 800x400 |
0,2114 |
560 |
1140 |
29 |
45 |
5 |
20 |
|
GTA 900x400 |
0,2372 |
640 |
1290 |
29 |
45 |
5 |
20 |
|
GTA 1000x400 |
0,2629 |
710 |
1450 |
29 |
45 |
5 |
20 |
Accessories and configurations
GTA
Type of fixing
Fixing with screws
Standard
GTA
2 Holes
4 Holes
1= Ø 3,5 Countersunk hole
HOLE
Amount of holes for mounting screw
L<= Smaller side
L>= Longer side
Specifications text
ALUMINUM TRANSIT GRILLE, 20 MM PITCH
CONSTRUCTION:
Anodised aluminium.
USE:
For the passage of air through doors or on plasterboard walls.
INSTALLATION:
Fixing with visible screws.
ACCESSORIES:
Counterframe.
MODEL: GTA*/*** x *** (Width x Height mm)
