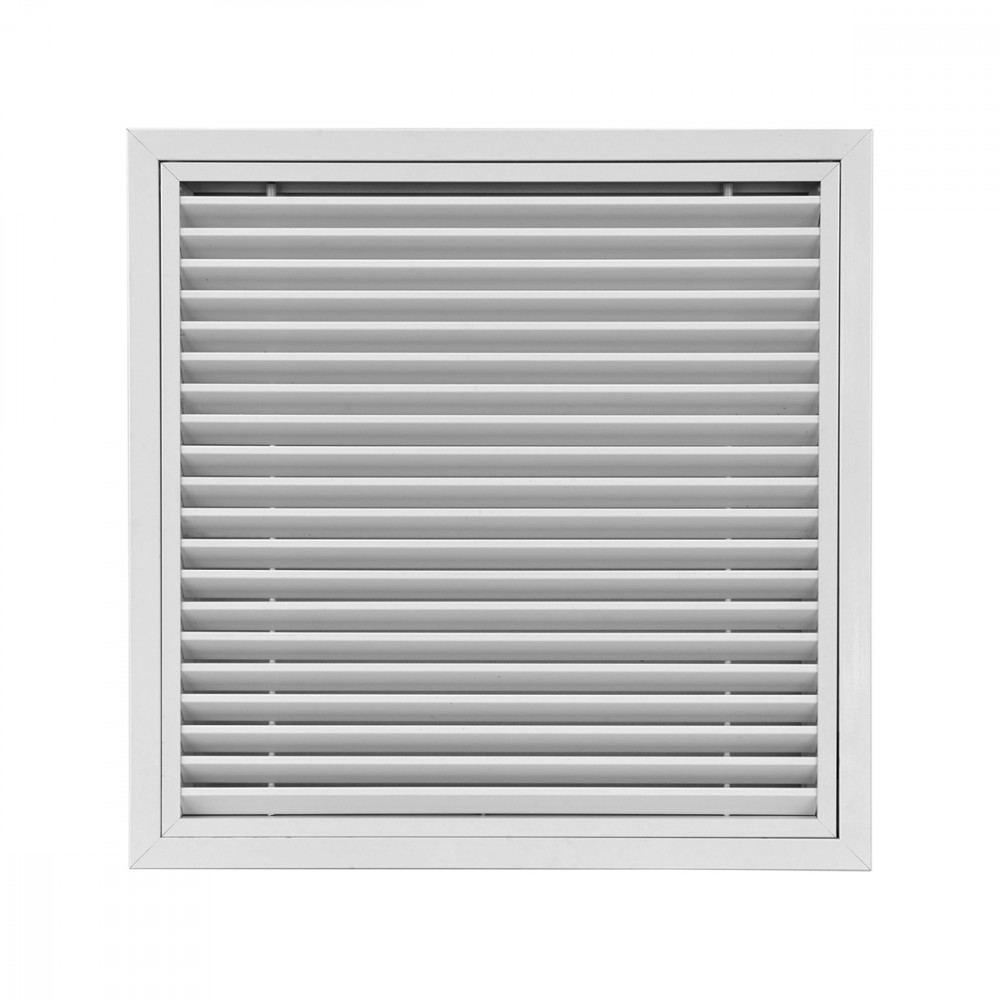

GRA60SMF

CHARACTERISTICS:

Return filter grille 595x595 mm (bars inclinated 45°). Removable core for filter insertion and removel.

CONSTRUCTION:

Anodized aluminium.

UTILIZATION:

For wale/ceiling installation and for air intake.

FIXING:

By clips (frontal screws on request).

DETAILS:

Closing: By magnets.

Dimensions

GRA60SMF

Closing with magnet 1= Steel bracket 2= Magnet 3= Magnet 4= Filter

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max
GRA60SM	0,1957	910	2230	24	41	5	30
GRA60SMF	0,1957	510	1760	-	34	10	50

Accessories and configurations

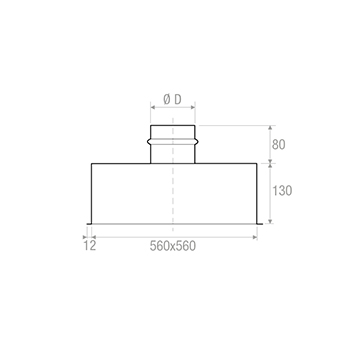

PBZ1

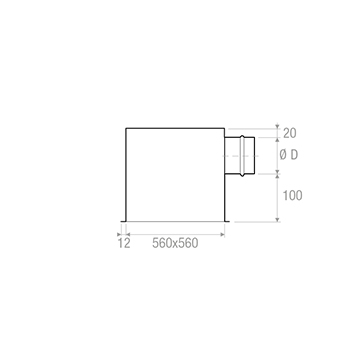

PBZ2

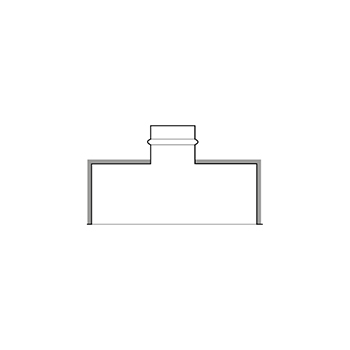

PBZI1

Plenum externally insulated thickness 6 mm

PBZI2

Plenum externally insulated thickness 6 mm

Specifications text

ALUMINUM RETURN FILTER GRILLE WITH FIXED BLADES INCLINED AT 45° FOR HOUSING AND REPLACEMENT OF THE FILTER.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Anodised aluminium.
USE:
Wall/ceiling installation for air intake.
INSTALLATION:
With clips (screws on request).
FILTER:
Included
CLOSURE:
With magnets
MODEL: GRA60SMF 595 x 595 (Width x Height mm)
