GRILLES

GMAI60SMF

CHARACTERISTICS:

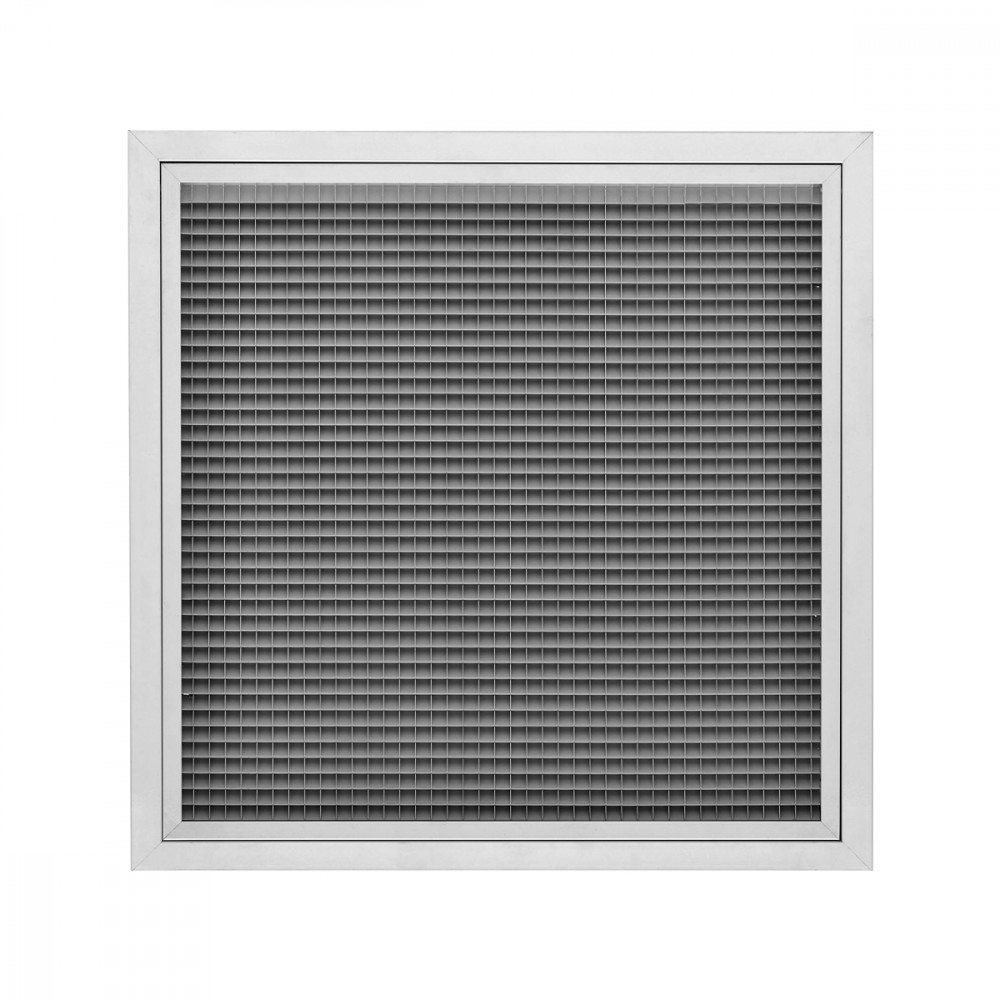

Egg crate grilles 13x13 mm pitch, inclined of 45° with removable core, for false ceilings 595x595 overall size.
CONSTRUCTION:
Aluminium.
UTILIZATION:
For false ceilings installation and for air intake.
FIXING:
• Fixing by using clips or frontal screws on demand.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

GMAI60SM

0,2375

2640

5210

41

60

5

20

GMAI60SMF

0,2375

1070

2860

-

43

10

50

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm



PDZI2

Plenum externally insulated thickness 6 mm


Instructions

GMAI60SMF

GMAI60SMF

GMAI60SMF

Specifications text

SQUARE MESH ALUMINIUM FILTER GRILLE INCLINED 45° 13X13 MMEXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Anodised aluminium.
USE:
False ceiling installation, for air intake.
INSTALLATION:
• Fixing with clips or on request with front screws.
FILTER:
Included
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
MODEL: GMAI60SMF 595 x 595 (Width x Height mm)
