GRILLES

FTD

CHARACTERISTICS:

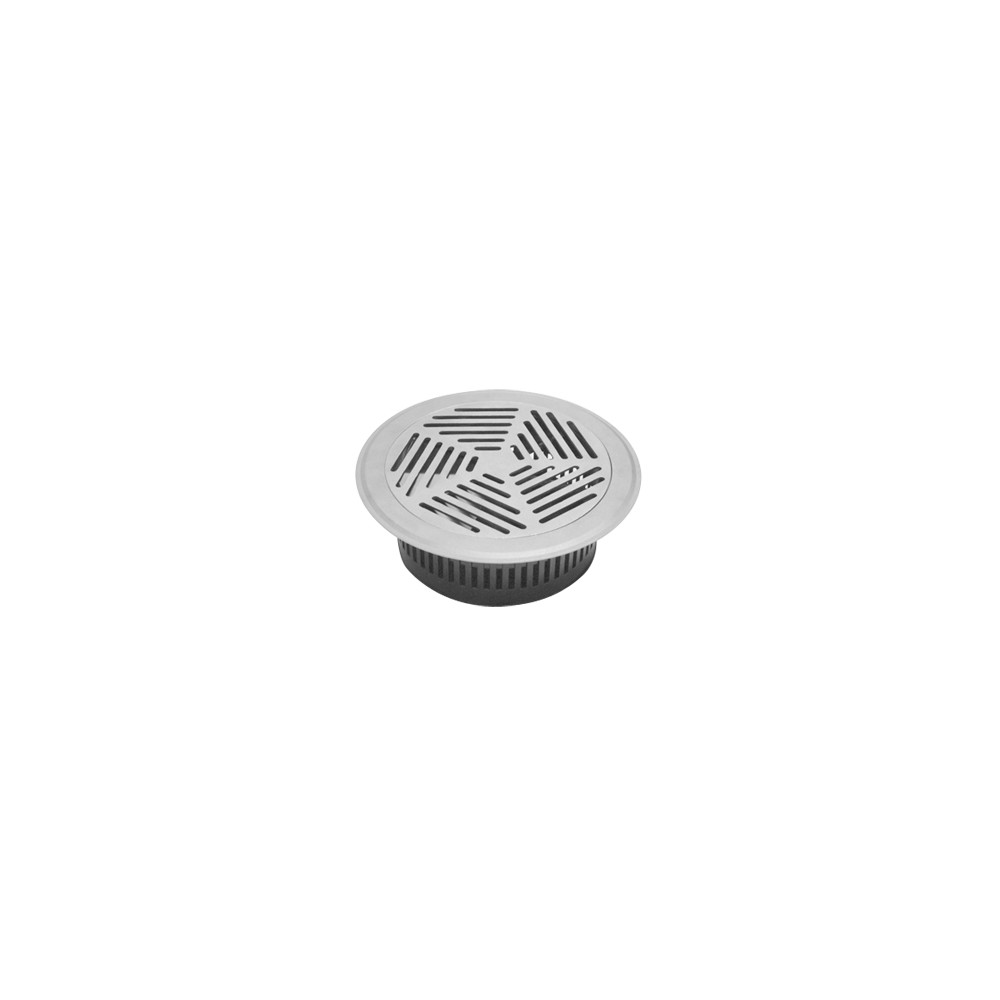

Floor twist diffuser.
CONSTRUCTION:
Die-cast and deburred aluminium. Dirt trap and adjustable swirl element are made of galvanized steel.
UTILIZATION:
For false floor installation and for air delivery.
FIXING:
By fixing plate and screws for false floors with tickness less than 50 mm.
Dimensions
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25) [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

FTD150

0,00446

40

80

41

58

0,47

0,72

10

50

FTD200

0,01600

50

100

34

50

0,38

0,55

10

50

Specifications text

ALUMINIUM FLOOR TWIST DIFFUSER WITH HELICAL EFFECT

CONSTRUCTION:
Die-cast and deburred aluminium. Dust collection basket and adjustable helicoid in galvanised steel
USE:
On raised floor, for air delivery.
INSTALLATION:
By means of fixing plate and screws for floors up to 50 mm thick.
MODEL: FTD * (Model)
