DIFFUSERS
GURG
CHARACTERISTICS:

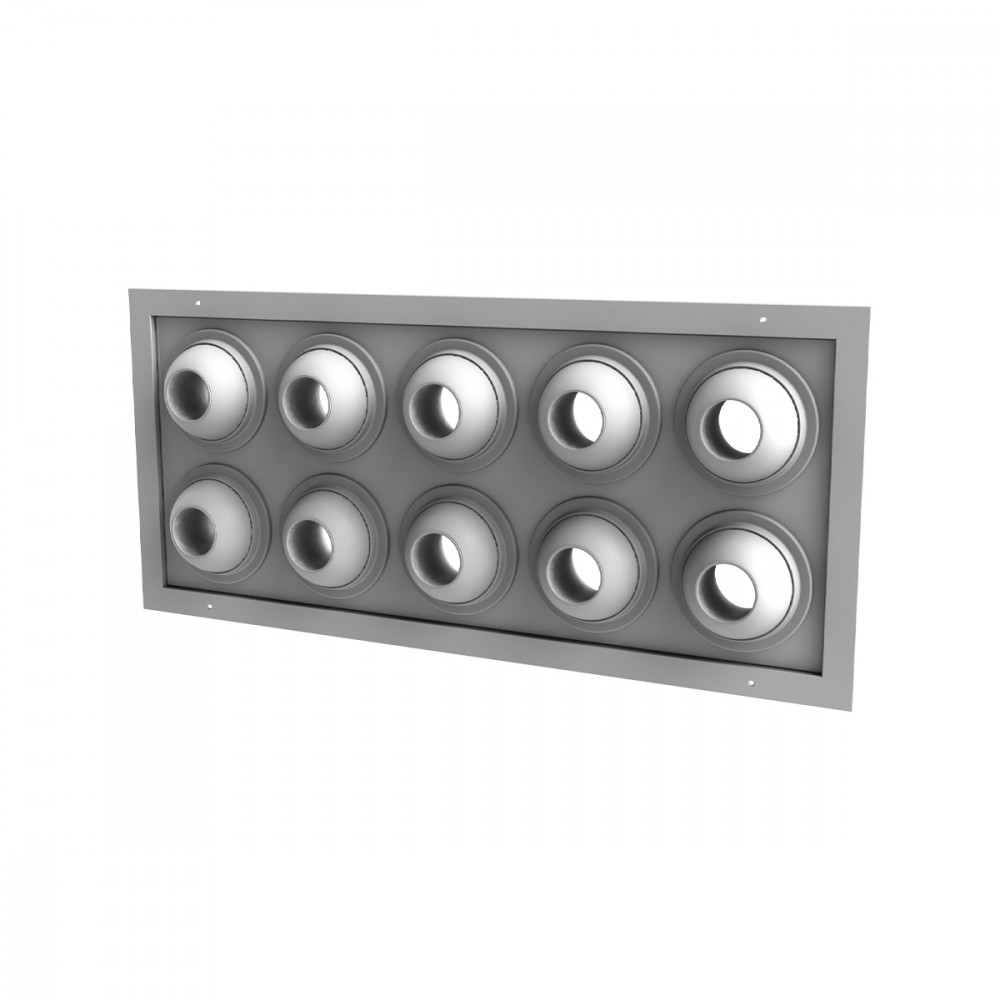

Diffusers with adjustable
nozzles arranged on a
rectangular panel. CONSTRUCTION:
Material: steel plate,
aluminium frame, white nylon
nozzles.
Finish: White RAL 9010. FIXING:
By using screws (Standard),
Clips. ACCESSORIES:
• Galvanized steel plenum,
standard or insulated.
• Calibration damper made
of galvanized steel and fins
with opposite movement.
• Mounting counterframes
made of galvanized steel
sheet. Dimensions
1= Ø 3,5 flared 90° “B”= (Hole dimension) “H” = (Hole dimension) 2= (nteraxis nozzles) Section B-B
CHOICE AND SIZING
|
Mod. |
N. nozzles |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) -Y(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
275x150 |
2 |
30 |
110 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
275x275 |
4 |
60 |
230 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
275x400 |
6 |
90 |
340 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
400x150 |
3 |
40 |
170 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
400x275 |
6 |
90 |
340 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
400x400 |
9 |
130 |
510 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
525x150 |
4 |
60 |
230 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
525x275 |
8 |
110 |
460 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
525x400 |
12 |
170 |
690 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
650x150 |
5 |
70 |
230 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
650x275 |
10 |
140 |
570 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
650x400 |
15 |
210 |
860 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
775x150 |
6 |
90 |
340 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
775x275 |
12 |
170 |
690 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
775x400 |
18 |
260 |
1030 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
900x150 |
7 |
100 |
400 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
900x275 |
14 |
200 |
800 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
900x400 |
21 |
300 |
1200 |
33 |
54 |
6 |
22,5 |
10 |
65 |
|
1025x150 |
8 |
110 |
460 |
28 |
44 |
4,5 |
10,5 |
10 |
65 |
|
1025x275 |
16 |
230 |
920 |
30 |
47 |
5,4 |
19,6 |
10 |
65 |
|
1025x400 |
24 |
340 |
1370 |
33 |
54 |
6 |
22,5 |
10 |
65 |
Accessories and configurations
PBZ1
PBZ2
PBZI1
Plenum externally insulated thickness 6 mm
PBZI2
Plenum externally insulated thickness 6 mm
Specifications text
DIFFUSER IN ALUMINIUM/GALVANISED STEEL RAL 9010 WITH ADJUSTABLE MICRO NOZZLES.
CONSTRUCTION:
Material: Steel plate, aluminium frame, white nylon nozzles.
FINISH: White RAL 9010.
INSTALLATION:
Installation with screws (standard), clips
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
MODEL: GURG
SIZES: *** x *** mm.
