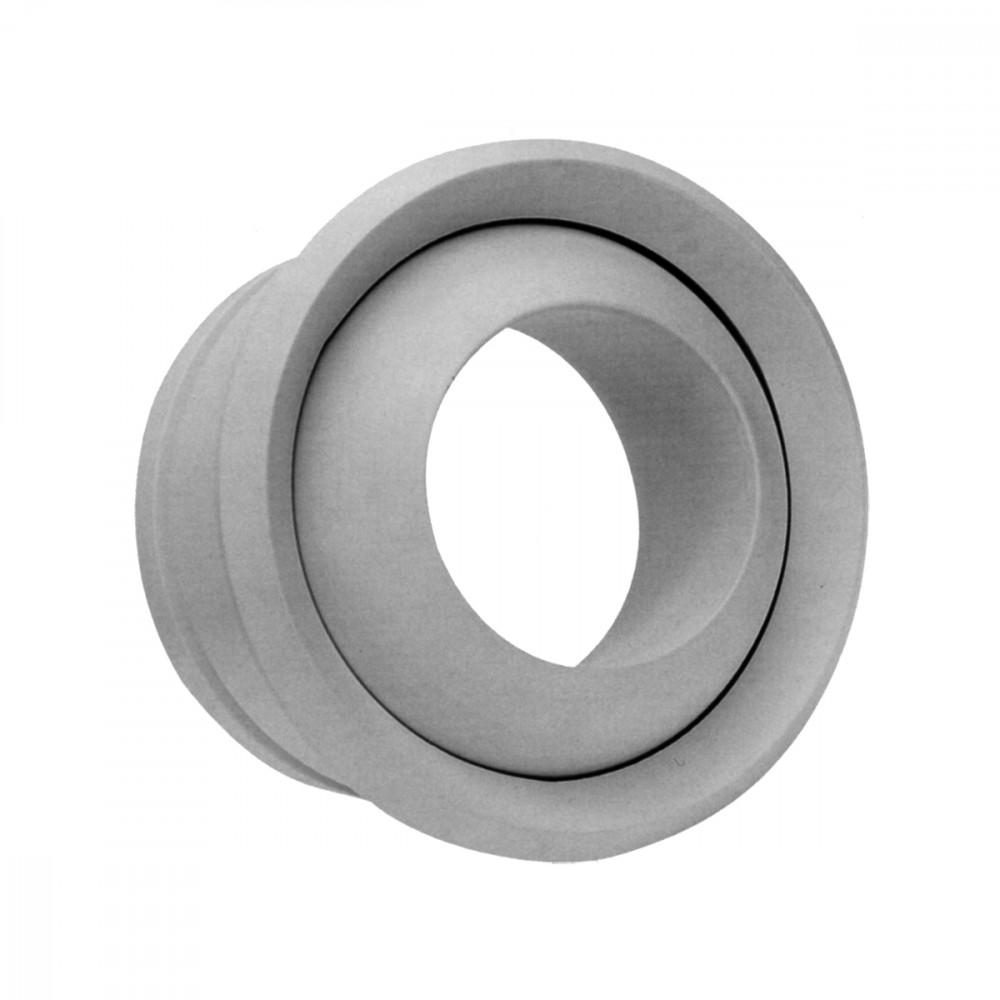

DUC

CHARACTERISTICS:

Jet diffusers for long throw with orientable nozzle for a maximum angle of 30°.

CONSTRUCTION:

Aluminium alloy painted white RAL 9010 on the front with special gasket seal between the spherical element and the outer frame.

UTILIZATION:

For ceiling or wall installation for air delivery
Installation height: 2,4 - 11,5 m.

FIXING:

Fixing by means of hidden screws on the front once removed the visible part.

Dimensions

DUC

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		X(0,25) [m]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max	min	max
DUC 125	0,01227	40	100	<20	27	6	12	10	50
DUC 160	0,02011	80	170	<20	28	7,4	16,2	10	50
DUC 200	0,03142	130	280	<20	29	10,4	17,1	10	50
DUC 250	0,04909	210	470	<20	32	12,3	26,4	10	50
DUC 315	0,07793	350	790	<20	32	15,1	35,1	10	50
DUC 350	0,09621	450	1000	<20	32	18,3	37,4	10	50
DUC 400	0,12566	600	1350	<20	33	20,6	40,7	10	50
DUC 450	0,15904	790	1760	<20	35	22,8	45,2	10	50

Specifications text

ALUMINIUM JET DIFFUSER RAL9010, LONG THROW ADJUSTABLE WITH A MAXIMUM ANGLE OF 30°

CONSTRUCTION:
In aluminium alloy with white RAL 9010 paint on the front and special airtight gasket between the spherical element and the external frame.
USE:
Ceiling or wall for supply. Installation height:2.4 - 11.5 m
INSTALLATION:
Fixing by means of hidden screws on the front once
MODEL: DUC***
