DIC1

CHARACTERISTICS:

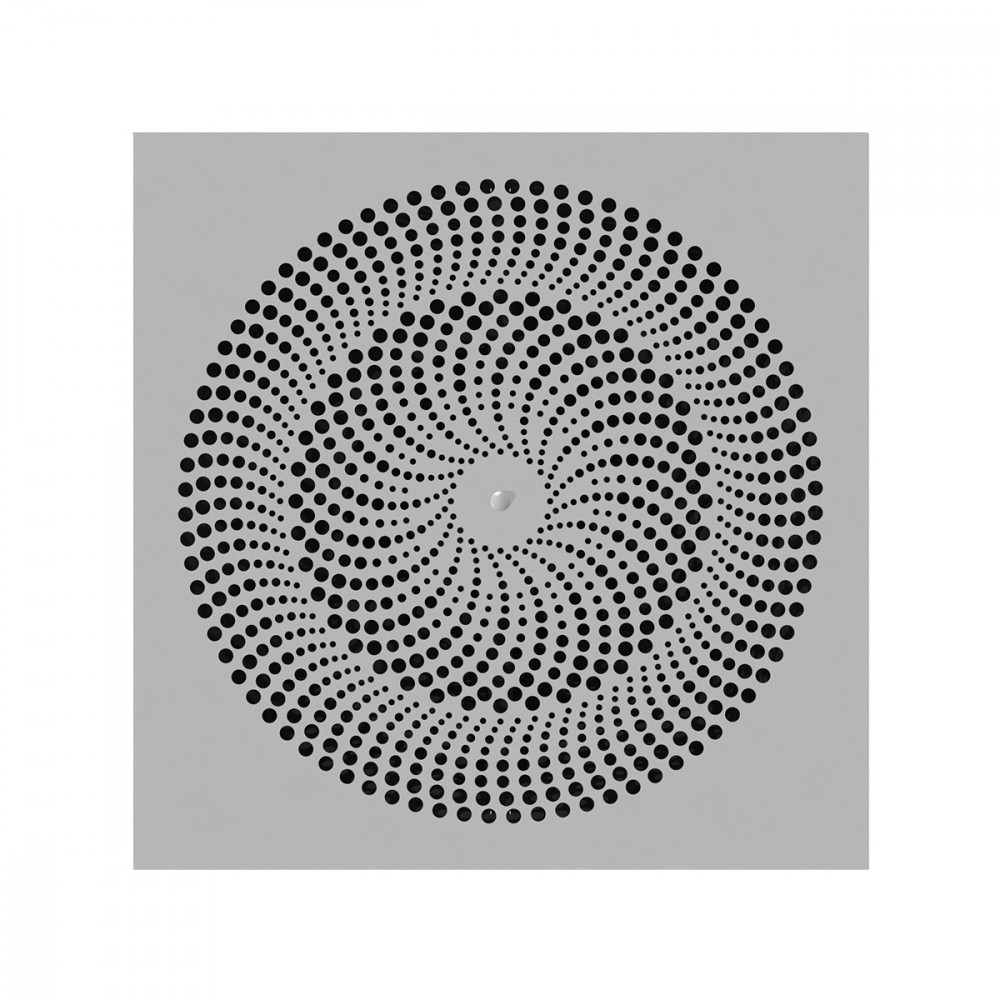

Panel diffuser pulse type with high inductive capacity.

CONSTRUCTION:

RAL 9010 white painted steel.

UTILIZATION:

For ceiling installation supply operation.
Installation height 2,7 - 4,1 m.

FIXING:

Fixing by using lateral screws or central screw on mounting bridge.

ACCESSORIES:

• Galvanized steel plenum, standard or isulated, with or without equalizer sheet, calibration damper and mounting bridge.

Dimensions

DIC1

MISURE

A= Type

CHOICE AND SIZING

Mod.	P [m3/h]		LWA [dB(A)]		X(0,20) [m]		Dpt [Pa]
Mod.	min	max	min	max	min	max	min	max
01/12/0125	60	100	25	40	0,2	0,5	20	40
01/12/0160	110	190	25	40	1,9	2,7	20	40
01/12/0200	230	300	25	40	2,3	3,6	20	40
01/12/0250	300	375	25	40	2,2	2,9	20	40

Accessories and configurations

PQZ2

PQZI2

Specifications text

PULSE TYPE DIFFUSER IN RAL 9010 GALVANISED STEEL WITH HIGH INDUCTIVE CAPACITY.EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
RAL 9010 white painted steel.
USE:
On the ceiling, for air supply. Installation height:2.7 - 4.1 m.
INSTALLATION:
Fixing with lateral screws or by central screw on the mounting bridge.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid, control damper and mounting bridge.
MODEL: DIC1***
SIZES:595 x 595 mm.
