DEESP
DEESPR
1= Removable perforated plate
MEASURES
Ø mm= Nominal dimensions
Products
DIFFUSERS
DEESP
CHARACTERISTICS:

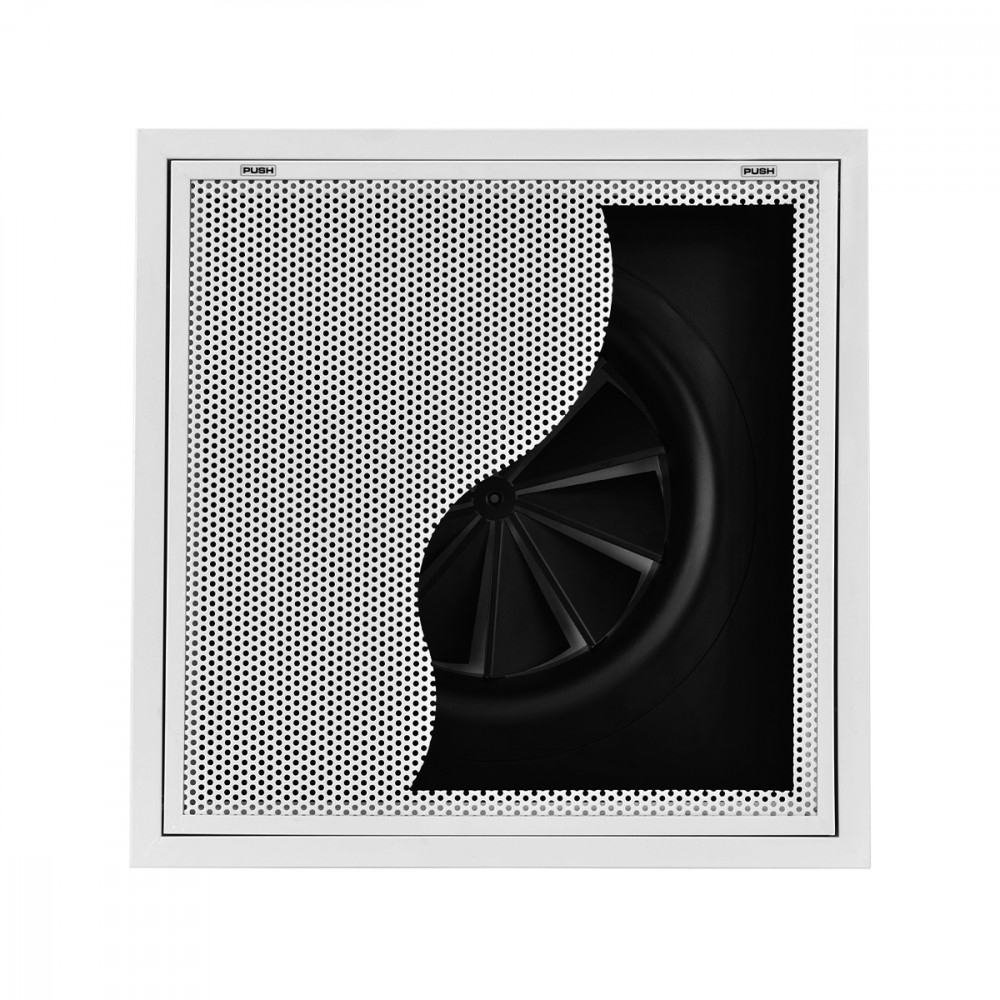

Fixed geometry circular diffuser with helical effect on perforated panel. CONSTRUCTION:
Perforated plate white RAL 9010.
Swirl diffuser black RAL 9005.
UTILIZATION:
Ceiling installation for air supply or return
Installation height: 2,8 – 3,2 m.
FIXING:
Fixing by screws on neck diffuser. ACCESSORIES:
• Galvanized steel connecting plenum with insulation and calibration damper. Dimensions
1= Removable perforated plate
Ø mm= Nominal dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt * [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
DEESP 100 |
0,0155 |
60 |
130 |
36 |
61 |
0,92 |
1,54 |
10 |
50 |
|
DEESP 125 |
0,01978 |
80 |
170 |
31 |
55 |
1,03 |
1,71 |
10 |
50 |
|
DEESP 160 |
0,02737 |
110 |
240 |
27 |
51 |
1,14 |
1,94 |
10 |
50 |
|
DEESP 200 |
0,03833 |
150 |
330 |
23 |
48 |
1,26 |
2,15 |
10 |
50 |
|
DEESP 250 |
0,05545 |
220 |
480 |
23 |
48 |
1,44 |
2,44 |
10 |
50 |
|
DEESP 315 |
0,08341 |
330 |
720 |
25 |
49 |
1,66 |
2,81 |
10 |
50 |
|
DEESP 400 |
0,12966 |
510 |
1110 |
29 |
54 |
1,94 |
3,28 |
10 |
50 |
|
DEESP 500 |
0,19816 |
780 |
1700 |
38 |
63 |
2,28 |
3,86 |
10 |
50 |
* with damper
Accessories and configurations
PDC
1= Optional damper
PDCI
1= Optional damper
2= Insulation
MEASURES
Instructions
DEESP
DEESP
DEESP
Specifications text
CIRCULAR DIFFUSER IN RAL9010 GALVANISED STEEL WITH FIXED GEOMETRY AND HELICAL EFFECT WITH PERFORATED SHEET SCREEN, ON PANEL 595x595 MM.
CONSTRUCTION:
Perforated screen in white painted steel RAL 9010.
Circular diffuser black painted RAL 9005.
USE:
On the ceiling, for air supply and return. Installation height:2.8 - 3.2 m
INSTALLATION:
Fixing by screws on the neck of the diffuser.
ACCESSORIES:
• Connection plenum in galvanised steel with insulation and control damper.
MODEL: DEES**/***
