DIFFUSERS

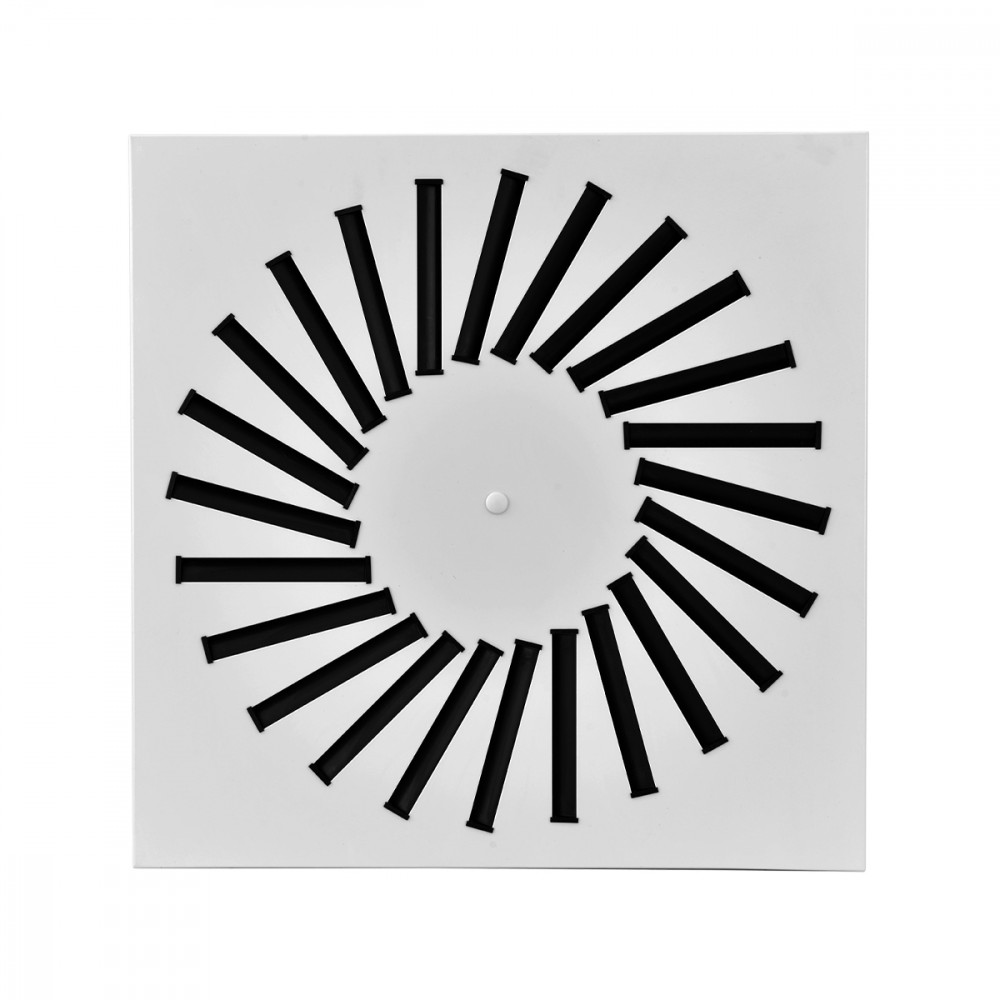

BQE3
CHARACTERISTICS:
Swirl diffusers with adjustable throws. CONSTRUCTION:
RAL 9010 white painted steel, deflection blades are made of polypropylene RAL 9005 black. UTILIZATION:
For ceiling installation and for air intake (without deflectors) and delivery.
Installation height: 2,5 – 4,1 m.
FIXING:
Fixing by using lateral screws or central screw on mounting bridge. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet, calibration damper and mounting bridge. Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
P [m3/h] |
LWA [dB(A)] |
X(0,20) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
||
|
BQE3QR 300x8 |
0,0095 |
150 |
300 |
32 |
54 |
1,8 |
3,5 |
10 |
50 |
|
BQE3QR 400x16 |
0,0189 |
270 |
520 |
30 |
48 |
2,2 |
4,3 |
10 |
50 |
|
BQE3QR 500x16 |
0,0189 |
270 |
520 |
30 |
48 |
2,2 |
4,3 |
10 |
50 |
|
BQE3QR 600x16 |
0,0189 |
270 |
520 |
30 |
48 |
2,2 |
4,3 |
10 |
50 |
|
BQE3QR 625x16 |
0,0189 |
270 |
520 |
30 |
48 |
2,2 |
4,3 |
10 |
50 |
|
BQE3QR 500x24 |
0,0284 |
370 |
720 |
28 |
45 |
2,5 |
4,9 |
10 |
50 |
|
BQE3QR 600x24 |
0,0449 |
530 |
1040 |
26 |
42 |
2,9 |
5,6 |
10 |
50 |
|
BQE3QR 625x24 |
0,0449 |
530 |
1040 |
26 |
42 |
2,9 |
5,6 |
10 |
50 |
|
BQE3QR 600x48 |
0,0568 |
640 |
1260 |
26 |
41 |
3,1 |
6,1 |
10 |
50 |
|
BQE3QR 625x54 |
0,0639 |
710 |
1380 |
25 |
40 |
3,2 |
6,3 |
10 |
50 |
|
BQE3QR 800x72 |
0,1017 |
1030 |
2010 |
24 |
37 |
3,7 |
7,2 |
10 |
50 |
|
BQE3QR 825x72 |
0,1017 |
1030 |
2010 |
24 |
37 |
3,7 |
7,2 |
10 |
50 |
Accessories and configurations
PQZ1
PQZ2
PQZI1
Plenum externally insulated thickness 6 mm
PQZI2
Plenum externally insulated thickness 6 mm
BQE3
Assembly detail
BQE3
Assembly detail
3= Fixing bridge
PLENUMPDC
1= Optional damper
3= Fixing bridge
PLENUMPDCI
1= Optional damper
2= Insulation
3= Fixing bridge
PLENUMBQE3R
Galvanized plenum
Specifications text
DIFFUSER IN RAL 9010 GALVANISED STEEL WITH HELICAL FLOW WITH ADJUSTABLE DEFLECTORS
CONSTRUCTION:
White painted steel RAL 9010 with deflectors in black polypropylene RAL 9005.
USE:
Ceiling, for air supply and return (without deflectors). Installation height:2.5 - 4.1 m
INSTALLATION:
Fixing with lateral screws or by central screw on the mounting bridge.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid, control damper and mounting bridge.
MODEL: *****/***
