AQNP
CHARACTERISTICS:

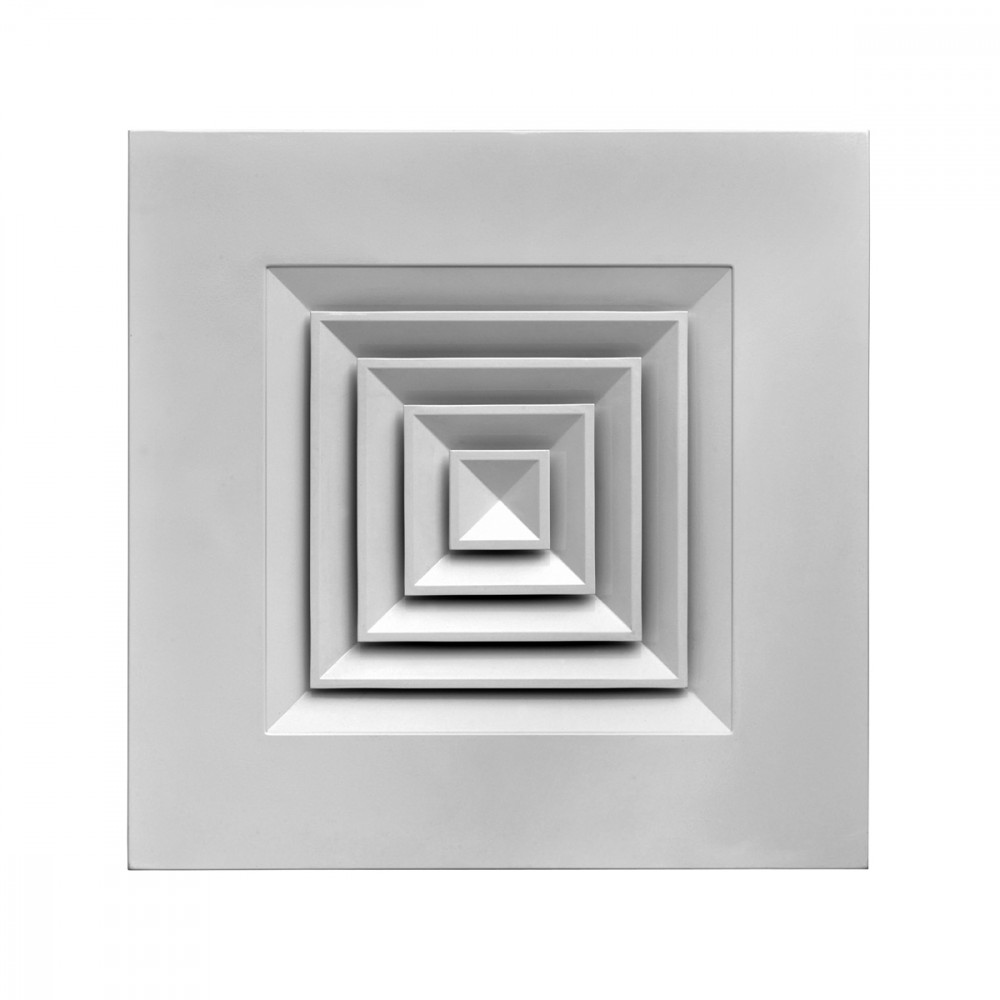

Multidirection diffuser with 4 ways on 595x595 panel and removable central core. CONSTRUCTION:
Aluminium sheet in one piece white painted RAL 9016. UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 3,1 m.
FIXING:
Fixing by using screws on the diffuser neck. ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
CHOICE AND SIZING
|
BxH mm |
Ak [m2] |
N. way |
Q [m3/h] |
LWA [dB(A)] |
X(0,25) [m] |
Dpt [Pa] |
||||
|
min |
max |
min |
max |
min |
max |
min |
max |
|||
|
AQNP 150x150 |
0,0094 |
4 |
100 |
210 |
< 20 |
29 |
0,8 |
3,99 |
10 |
50 |
|
AQNP 225x225 |
0,0194 |
4 |
200 |
460 |
< 20 |
34 |
0,92 |
4,61 |
10 |
50 |
|
AQNP 300x300 |
0,0332 |
4 |
360 |
810 |
< 20 |
39 |
1,03 |
5,14 |
10 |
50 |
|
AQNP 375x375 |
0,0511 |
4 |
570 |
1270 |
< 20 |
42 |
1,12 |
5,6 |
10 |
50 |
Accessories and configurations
ACCESORIES
Spigot plenum PDZ1 PDZ2
Instructions
CONNECTING TO SQUARE DUCT
Insert the diffuser into the duct.
Fix the diffuser by screws.
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
CONNECTING TO FLEXIBLE DUCT BY PLENUM
Insert the diffuser into the plenum PDZ1/PDZ2
Fix the diffuser by screws.
1= Flexible
REFISTERING
It is possible to install a damper for any configuration. Fix the damper by clips on the diffuser.
Specifications text
MULTIDIRECTIONAL 4-WAY ALUMINIUM DIFFUSER RAL 9016 ON PANEL WITH REMOVABLE CENTRAL PART.EXTERNAL DIMENSION 595X595 MM
CONSTRUCTION:
One piece aluminium sheet, white painted RAL 9016.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.1 m
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL: AQNP
SIZES: *** x *** mm.
