DIFFUSERS

AQ

CHARACTERISTICS:

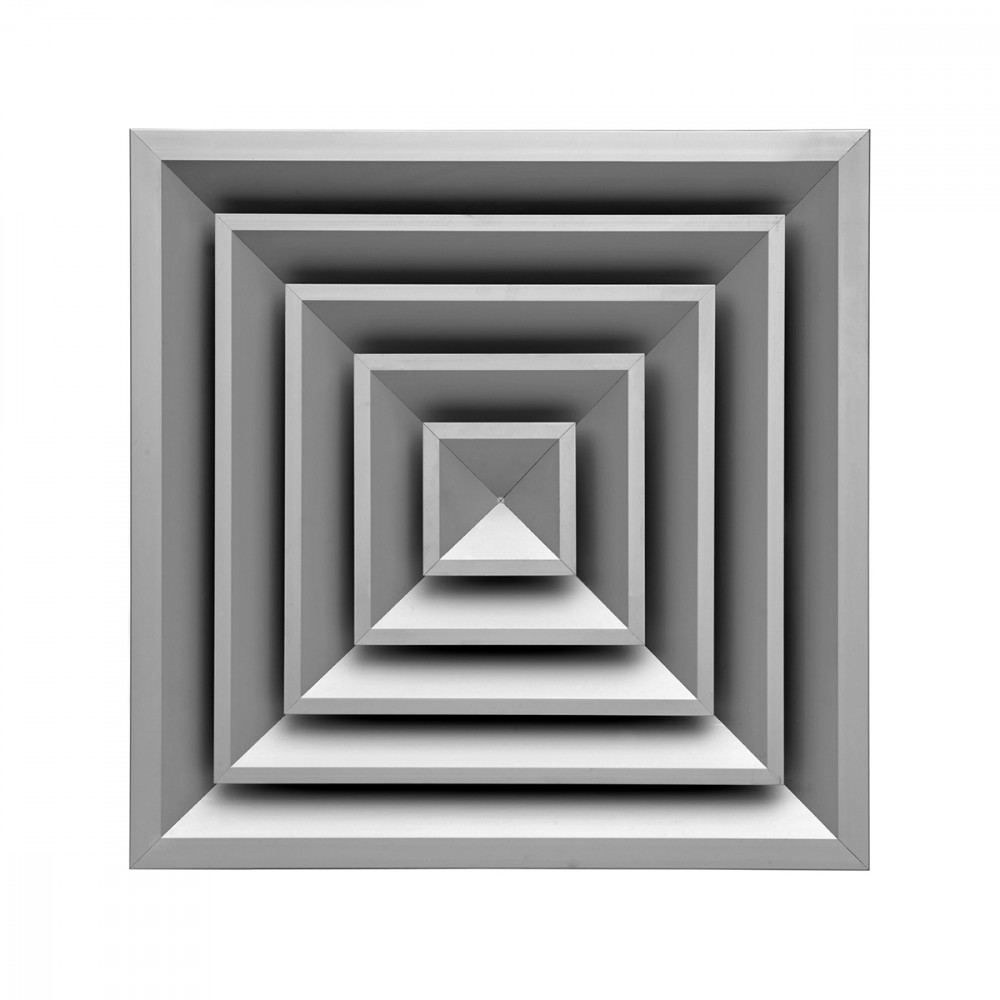

Multidirection diffuser with 1, 2, 3 and 4 ways and removable central core.
CONSTRUCTION:
Anodized aluminium.
UTILIZATION:
For ceiling installation and for air intake and delivery.
Installation height: 2,5 – 3,2 m.
FIXING:
Fixing by using screws on the diffuser neck.
ACCESSORIES:
• Galvanized steel plenum, standard or insulated, with or without equalizer sheet.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
CHOICE AND SIZING

Mod.

Ak* [m2]

Q [m3/h]

LWA [dB(A)]

X(0,25)** [m]

Dpt [Pa]

min

max

min

max

min

max

min

max

min

max

AQ 150x150

0,0080

0,0099

130

290

35

53

1,7

3,4

10

50

AQ 225x225

0,0179

0,0214

290

620

35

53

2,5

5

10

50

AQ 300x300

0,0317

0,0379

510

1100

35

53

3,2

6,6

10

50

AQ 375x375

0,0494

0,0592

790

1700

35

53

4

8,3

10

50

AQ 450x450

0,0711

0,0853

1140

2450

35

53

4,8

10

10

50

AQ 525x525

0,0967

0,1161

1550

3320

35

53

5,6

11,6

10

50

AQ 600x600

0,1262

0,1517

2020

4340

35

53

6,4

13,4

10

50

AQ 225x150

0,0120

0,0145

200

420

35

53

2,5

5,2

10

50

AQ 300x150

0,0160

0,0191

260

560

35

53

2,8

5,8

10

50

AQ 375x150

0,0199

0,0237

320

690

35

53

3,1

6,4

10

50

AQ 300x225

0,0238

0,0284

380

830

35

53

3,3

6,9

10

50

AQ 375x225

0,0297

0,0355

480

1030

35

53

3,6

7,6

10

50

AQ 450x225

0,0356

0,0426

570

1230

35

53

3,9

8,3

10

50

AQ 525x225

0,0416

0,0498

670

1430

35

53

4,2

8,8

10

50

AQ 375x300

0,0396

0,0474

640

1370

35

53

4,1

8,7

10

50

AQ 450x300

0,0475

0,0569

760

1640

35

53

4,4

9,4

10

50

AQ 525x300

0,0553

0,0663

890

1910

35

53

4,7

10

10

50

AQ 600x300

0,0632

0,0758

1010

2180

35

53

5

10,6

10

50

AQ 450x375

0,0593

0,0711

950

2040

35

53

4,9

10,3

10

50

AQ 600x375

0,0790

0,0948

1270

2720

35

53

5,5

11,7

10

50

AQ 600x450

0,0947

0,1137

1520

3260

35

53

6

12,7

10

50

* Depending on kind and ways number of AQ diffuser. ** Indicative value for 4 ways model.

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm



PDZI2

Plenum externally insulated thickness 6 mm



ACCESORIES

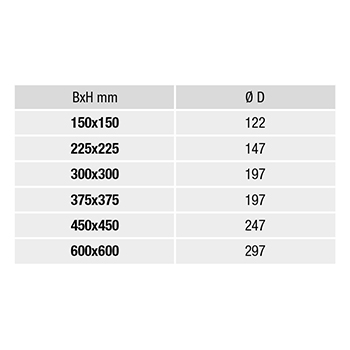

Spigot plenum PDZ1 PDZ2



AQ1

AQ2

AQ3

AQ4

AQ5

AQ6

AQ7

AQ8

AQ9

AQ10

AQ11

AQ12

AQ13

Instructions

CONNECTING TO SQUARE DUCT

Insert the diffuser into the duct.

Fix the diffuser by screws.



CONNECTING TO FLEXIBLE DUCT BY PLENUM

Insert the diffuser into the plenum PDZ1/PDZ2

Fix the diffuser by screws.

1= Flexible





CONNECTING TO FLEXIBLE DUCT BY PLENUM

Insert the diffuser into the plenum PDZ1/PDZ2

Fix the diffuser by screws.

1= Flexible



REFISTERING

It is possible to install a damper for any configuration.

Fix the damper by clips on the diffuser.


Specifications text

MULTIDIRECTIONAL 1, 2, 3 AND 4-WAY ALUMINIUM DIFFUSER WITH REMOVABLE CENTRAL PART

CONSTRUCTION:
Anodised aluminium.
USE:
On the ceiling, for air supply and return. Installation height:2.5 - 3.2 m.
INSTALLATION:
Fixing with hidden screws positioned on the neck of the diffuser.
ACCESSORIES:
• Standard or insulated galvanised steel plenum, with or without equalising grid.
• Volume control damper in galvanised steel with opposed blades.
MODEL:AQ
SIZES: *** x *** mm.



Documents download
Information request

Write us a message
