SRC150

Dimensions

SRC150

Hole Ø 9 mm / Pitch 300 mm

SRC150

1= Pitch 150

CHOICE AND SIZING

Mod.	A1 [m2]	v [m/s]		Q [m3/h]		Dp (ꭤ=40°) [Pa]		LWA (ꭤ=40°) [dB(A)]
Mod.	A1 [m2]	min	max	min	max	min	max	min	max
SRC150 300x310	0,0930	3	6	1000	2010	62	248	50	67
SRC150 600x310 - 300x610	0,1860	3	6	2010	4020	62	248	53	70
SRC150 900x310 - 300x910	0,2790	3	6	3010	6030	62	248	55	72
SRC150 1200x310 - 300x1210	0,3720	3	6	4020	8040	62	248	56	73
SRC150 1500x310 - 300x1510	0,4650	3	6	5020	10040	62	248	57	74
SRC150 1800x310 - 300x1810	0,5580	3	6	6030	12050	62	248	58	75
SRC150 2000x310	0,6200	3	6	6700	13390	62	248	58	76
SRC150 600x610	0,3660	3	6	3950	7910	62	248	56	73
SRC150 900x610 - 600x910	0,5490	3	6	5930	11860	62	248	58	75
SRC150 1200x610 - 600x1210	0,7320	3	6	7910	15810	62	248	59	76
SRC150 1500x610 - 600x1210	0,9150	3	6	9880	19760	62	248	60	77
SRC150 1800x610 - 600x1810	1,0980	3	6	11860	23720	62	248	61	78
SRC-150 2000x610	1,2200	3	6	13180	26350	62	248	61	79
SRC-150 900x910	0,8190	3	6	8850	17690	62	248	60	77
SRC150 1200x910 - 900x1210	1,0920	3	6	11790	23590	62	248	61	78
SRC150 1500x910 - 900x1510	1,3650	3	6	14740	29480	62	248	62	79
SRC150 1800x910 - 900x1810	1,6380	3	6	17690	35380	62	248	63	80
SRC150 2000x910	1,8200	3	6	19660	39310	62	248	63	80
SRC150 1200x1210	1,4520	3	6	15680	31360	62	248	62	79
SRC150 1500x1210 - 1200x1510	1,8150	3	6	19600	39200	62	248	63	80
SRC150 1800x1210 - 1200x1810	2,1780	3	6	23520	47040	62	248	64	81
SRC150 2000x1210	2,4200	3	6	26140	52270	62	248	64	82
SRC150 1500x1510	2,2650	3	6	24460	48920	62	248	64	81
SRC150 1800x1510 - 1500x1810	2,7180	3	6	29350	58710	62	248	65	82
SRC150 2000x1510	3,0200	3	6	32620	65230	62	248	65	82
SRC150 1800x1810	3,2580	3	6	35190	70370	62	248	66	83
SRC150 2000x1810	3,6200	3	6	39100	78190	62	248	66	83
SRC150 2000x1960	3,92	3	6	42340	84670	62	248	66	84

Accessories and configurations

SRC150

Configuration

Standard blades

T10

Configuration

Veneered blades

SRC150

Configuration

Opposed blades

SRC150P

Configuration

Parallel blades

Instructions

SRC150 (standard)

1) Flanged frame

2) Universal plate

3) Fixing slots

4) Calibration blades

5) Levers and pins nylon PA6

6) Control pin

MANUAL CONTROL

Code: CM10

UNIVERSAL PLATE (STANDARD)

MANUAL CONTROL

SERVOMOTOR

Specifications text

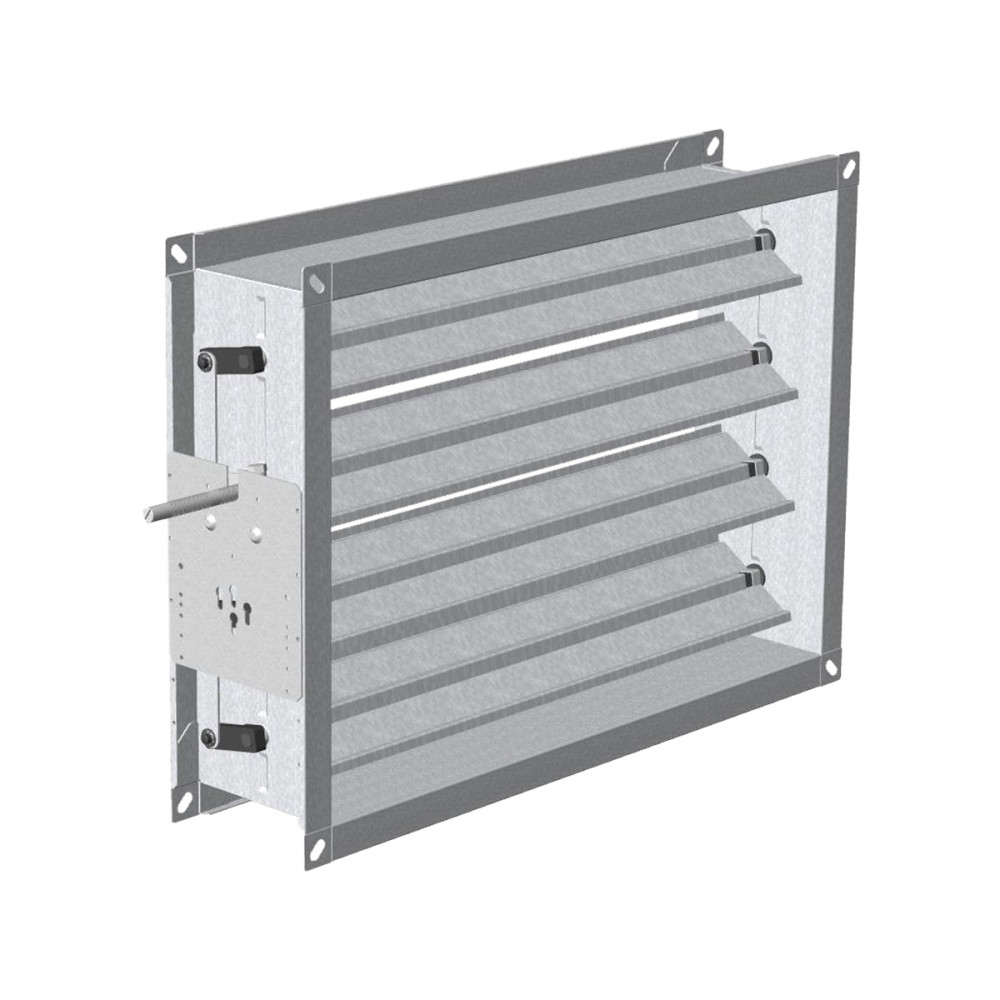

VOLUME CONTROL DAMPER WITH GALVANISED STEEL FRAME AND BLADES, NYLON ROTATION PINS, 150 MM PITCH

OPERATION:
Opposed or parallel movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:

• SRC150-P: opposed blade damper with pin for servomotor (standard).
• SRC150-C: opposed blade damper with manual control (CM10).
• SRC150-PP: parallel blade dampers with pin for servomotor.
• SRC150-PPC: parallel blade damper with manual control (CM10).
• T10: veneered blades for greater air pressure sealing. (price increase + 30%)
