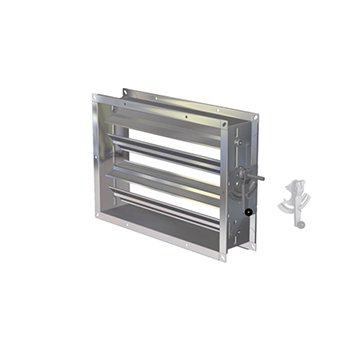

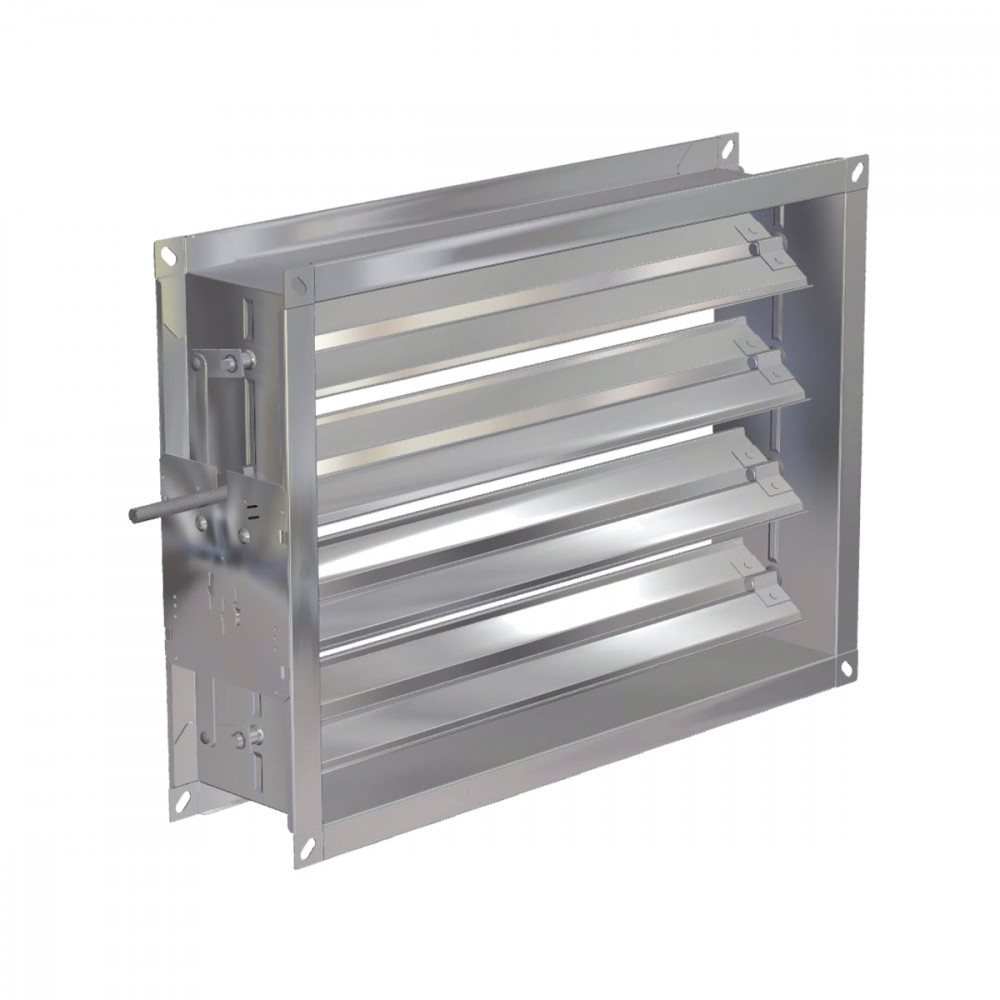

SRC100SS

Dimensions

SRC100SS

Hole Ø 9 mm / Pitch 300 mm

SRC100SS

1= Pitch 100

CHOICE AND SIZING

Mod.	A1 [m2]	v [m/s]		Q [m3/h]		Dp (ꭤ=40°) [Pa]		LWA (ꭤ=40°) [dB(A)]
Mod.	A1 [m2]	min	max	min	max	min	max	min	max
SRC100SS 200x210	0,0420	3	6	450	910	64	255	47	64
SRC100SS 400x210 - 200x410	0,0840	3	6	910	1810	64	255	50	67
SRC100SS 600x210 - 200x610	0,1260	3	6	1360	2720	64	255	52	69
SRC100SS 800x210 - 200x810	0,1680	3	6	1810	3630	64	255	53	70
SRC100SS 1000x210 - 200x1010	0,2100	3	6	2270	4540	64	255	54	71
SRC100SS 1200x210 - 200x1210	0,2520	3	6	2720	5440	64	255	55	72
SRC100SS 1400x210 - 200x1410	0,2940	3	6	3180	6350	64	255	55	73
SRC100SS 400x410	0,1640	3	6	1770	3540	64	255	53	70
SRC100SS 600x410 - 400x610	0,2460	3	6	2660	5310	64	255	55	72
SRC100SS 800x410 - 400x810	0,3280	3	6	3540	7080	64	255	56	73
SRC100SS 1000x410 - 400x1010	0,4100	3	6	4430	8860	64	255	57	74
SRC100SS 1200x410 - 400x1210	0,4920	3	6	5310	10630	64	255	58	75
SRC100SS 1400x410 - 400x1410	0,5740	3	6	6200	12400	64	255	58	76
SRC100SS 600x610	0,3660	3	6	3950	7910	64	255	56	74
SRC100SS 800x610 - 600x810	0,4880	3	6	5270	10540	64	255	58	75
SRC100SS 1000x610 - 600x1010	0,6100	3	6	6590	13180	64	255	59	76
SRC100SS 1200x610 - 600x1210	0,7320	3	6	7910	15810	64	255	59	77
SRC100SS 1400x610 - 600x1410	0,8540	3	6	9220	18450	64	255	60	77
SRC100SS 800x810	0,6480	3	6	7000	14000	64	255	59	76
SRC100SS 1000x810 - 800x1010	0,8100	3	6	8750	17500	64	255	60	77
SRC100SS 1200x810 - 800x1210	0,9720	3	6	10500	21000	64	255	61	78
SRC100SS 1400x810 - 800x1410	1,1340	3	6	12250	24490	64	255	61	78
SRC100SS 1000x1010	1,0100	3	6	10910	21820	64	255	61	78
SRC100SS 1200x1010 - 1000x1210	1,2120	3	6	13090	26180	64	255	62	79
SRC100SS 1400x1010 - 1000x1410	1,4140	3	6	15270	30540	64	255	62	79
SRC100SS 1200x1210	1,4520	3	6	15680	31360	64	255	62	80
SRC100SS 1400x1210 - 1200x1410	1,6940	3	6	18300	36590	64	255	63	80
SRC100SS 1400x1410	1,9740	3	6	21320	42640	64	255	64	81

Accessories and configurations

SRC100SS

Configuration

Standard blades

T10

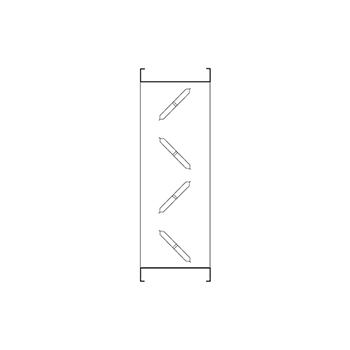

Configuration

Veneered blades

SRC100SS

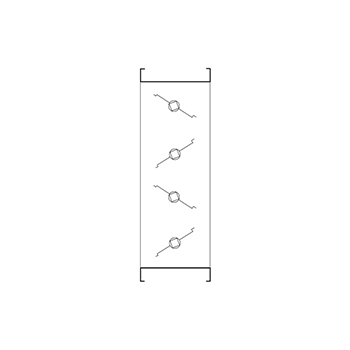

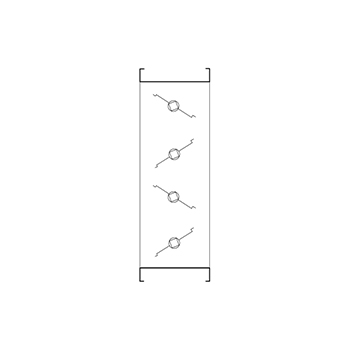

Configuration

Opposed blades

SRC100SSP

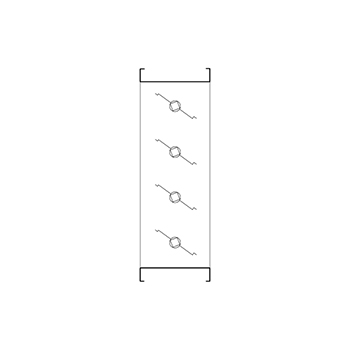

Configuration

Parallel blades

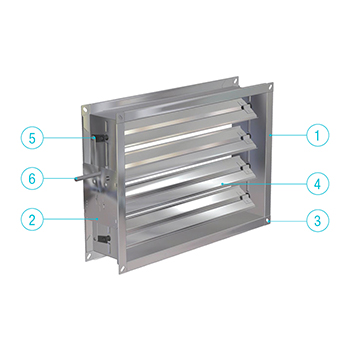

Instructions

SRC100SS (standard)

1) Flanged frame

2) Universal plate

3) Fixing slots

4) Calibration blades

5) Levers and pins nylon PA6

6) Control pin

Stainless stell spindles and bruss bushingson request: +40%

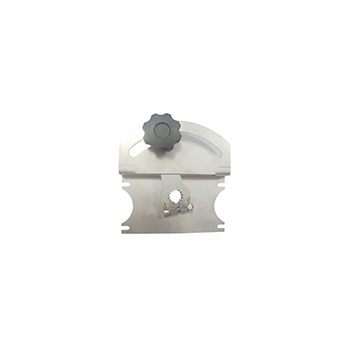

MANUAL CONTROLMANUAL CONTROL

Code: CM30SS

UNIVERSAL PLATE (STANDARD)

MANUAL CONTROL

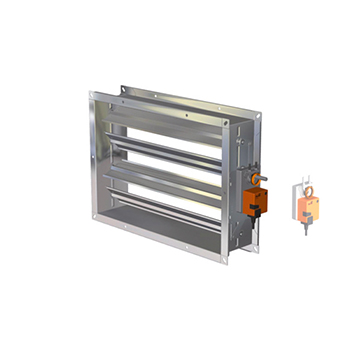

SERVOMOTOR

Specifications text

VOLUME CONTROL DAMPER WITH AISI 304 STAINLESS STEEL FRAME AND BLADES, NYLON ROTATION PINS, 100 MM PITCH

OPERATION:

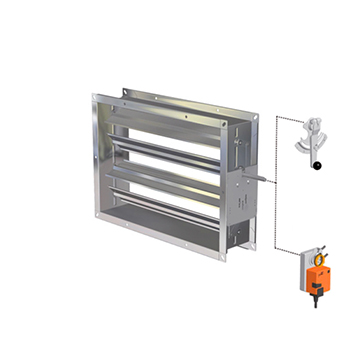

Opposed or parallel movement operated manually or with servomotor.
INSTALLATION:
By means of bolts at the corners of the flanges.
MODELS:
• SRC-100 SS-P: opposed blade damper with pin for servomotor (standard).
• SRC-100 SS-C: opposed blade damper with manual control (CM30).
• SRC-100 SS-PP: parallel blade dampers with pin for servomotor.
• SRC-100 SS-PPC: parallel blade damper with manual control (CM30).
• T10: veneered blades for greater air pressure sealing (price increase + 30%)
