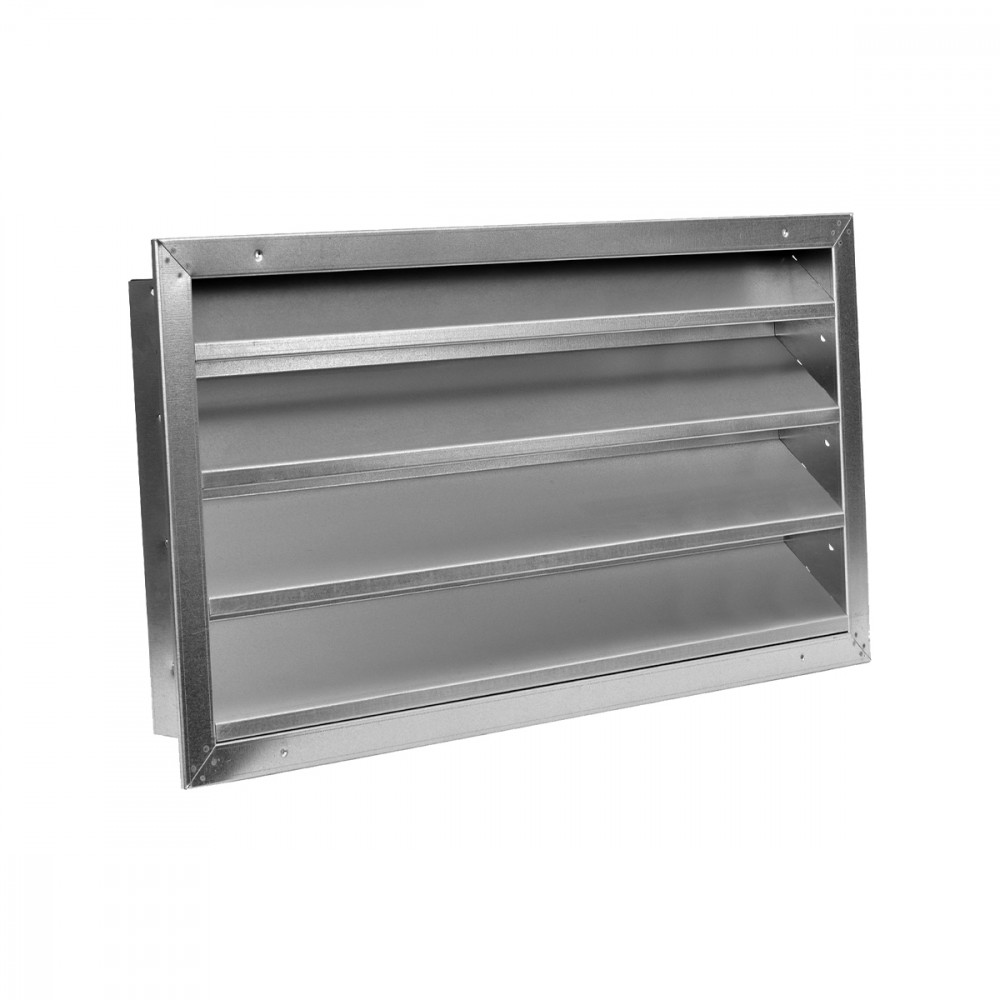

GRI100

CHARACTERISTICS:
Industrial return grilles with fixed and 45° inclined bars 100 mm pitch.
CONSTRUCTION:
Galvanized steel. Models made of copper, stainless steel AISI 304, 2B or BA finish, are available on demand.
UTILIZATION:
For wall installation and for external air intake or exhaust air flow.
FIXING:
Fixing by using frontal screws.
ACCESSORIES:
• Calibration damper made of galvanized steel and fins with opposite movement.
• Mounting counterframes made of galvanized steel sheet.
• Bird screen.
• Overpressure damper.
Dimensions

GRI100


1= Hole dimension

GRI100R


1= Hole dimension 2= Bird mesh

GRI100RZ


1= Hole dimension 2= Insect screen

GRI100RSSA


GRI100RSSE


CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

GRI100 600x600

0,1980

1240

2480

25

45

5

20

GRI100 800x600

0,2744

1710

3440

25

45

5

20

GRI100 1000x600

0,3509

2190

4400

25

45

5

20

GRI100 1200x600

0,4273

2670

5360

25

45

5

20

GRI100 1400x600

0,5037

3140

6320

25

45

5

20

GRI100 1600x600

0,5801

3620

7280

25

45

5

20

GRI100 1800x600

0,6565

4100

8240

25

45

5

20

GRI100 2000x600

0,7330

4570

9200

25

45

5

20

GRI100 600x800

0,2793

1740

3500

25

45

5

20

GRI100 800x800

0,3857

2410

4840

25

45

5

20

GRI100 1000x800

0,4921

3070

6170

25

45

5

20

GRI100 1200x800

0,5985

3740

7510

25

45

5

20

GRI100 1400x800

0,7049

4400

8840

25

45

5

20

GRI100 1600x800

0,8113

5060

10180

25

45

5

20

GRI100 1800x800

0,9177

5730

11510

25

45

5

20

GRI100 2000x800

1,0241

6390

12850

25

45

5

20

GRI100 600x1000

0,3605

2250

4520

25

45

5

20

GRI100 800x1000

0,4969

3100

6230

25

45

5

20

GRI100 1000x1000

0,6333

3950

7950

25

45

5

20

GRI100 1200x1000

0,7697

4800

9660

25

45

5

20

GRI100 1400x1000

0,9061

5660

11370

25

45

5

20

GRI100 1600x1000

1,0424

6510

13080

25

45

5

20

GRI100 1800x1000

1,1788

7360

14790

25

45

5

20

GRI100 2000x1000

1,3152

8210

16500

25

45

5

20

GRI100 600x1200

0,4418

2760

5540

25

45

5

20

GRI100 800x1200

0,6082

3800

7630

25

45

5

20

GRI100 1000x1200

0,7745

4830

9720

25

45

5

20

GRI100 1200x1200

0,9409

5870

11810

25

45

5

20

GRI100 1400x1200

1,1072

6910

13890

25

45

5

20

GRI100 1600x1200

1,2736

7950

15980

25

45

5

20

GRI100 1800x1200

1,4400

8990

18070

25

45

5

20

GRI100 2000x1200

1,6063

10030

20150

25

45

5

20

GRI100 600x1400

0,5231

3260

6560

25

45

5

20

GRI100 800x1400

0,7194

4490

9030

25

45

5

20

GRI100 1000x1400

0,9157

5720

11490

25

45

5

20

GRI100 1200x1400

1,1121

6940

13950

25

45

5

20

GRI100 1400x1400

1,3084

8170

16420

25

45

5

20

GRI100 1600x1400

1,5048

9390

18880

25

45

5

20

GRI100 1800x1400

1,7011

10620

21340

25

45

5

20

GRI100 2000x1400

1,8974

11840

23810

25

45

5

20

GRI100 600x1600

0,6043

3770

7580

25

45

5

20

GRI100 800x1600

0,8306

5180

10420

25

45

5

20

GRI100 1000x1600

1,0570

6600

13260

25

45

5

20

GRI100 1200x1600

1,2833

8010

16100

25

45

5

20

GRI100 1400x1600

1,5096

9420

18940

25

45

5

20

GRI100 1600x1600

1,7359

10830

21780

25

45

5

20

GRI100 1800x1600

1,9622

12250

24620

25

45

5

20

GRI100 2000x1600

2,1886

13660

27460

25

45

5

20

GRI100 600x1800

0,6856

4280

8600

25

45

5

20

GRI100 800x1800

0,9419

5880

11820

25

45

5

20

GRI100 1000x1800

1,1982

7480

15030

25

45

5

20

GRI100 1200x1800

1,4545

9080

18250

25

45

5

20

GRI100 1400x1800

1,7108

10680

21460

25

45

5

20

GRI100 1600x1800

1,9671

12280

24680

25

45

5

20

GRI100 1800x1800

2,2234

13880

27900

25

45

5

20

GRI100 2000x1800

2,4797

15480

31110

25

45

5

20

GRI100 2000x2000

2,7708

17290

34760

25

45

5

20
Accessories and configurations

GRI100SC

GRI100TEG

CTPGRI100

1= Fixing coupling

2= Frame with mounting brackets



GRI100

Type of fixing

Fixing with clips



GRI100

Type of fixing

Fixing with screws

Standard



GRI100

4 Holes

1= Ø 3,5 Countersunk hole


Specifications text

INDUSTRIAL RETURN GALVANIZED STEEL GRILLE WITH FIXED BLADES INCLINED AT 45° 100 MM PITCH

CONSTRUCTION:
Galvanised steel. Constructions in AISI 304 stainless steel in 2B or BA finishes are available on request.
USE:
Wall mounted, for external air intake or exhaust.
INSTALLATION:
Fixing with front screws.
ACCESSORIES:
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
• Bird-proof mesh.
• Gravity overpressure damper.
MODEL: GRI100*/*** x *** (Width x Height mm)
