GMAI60

CHARACTERISTICS:

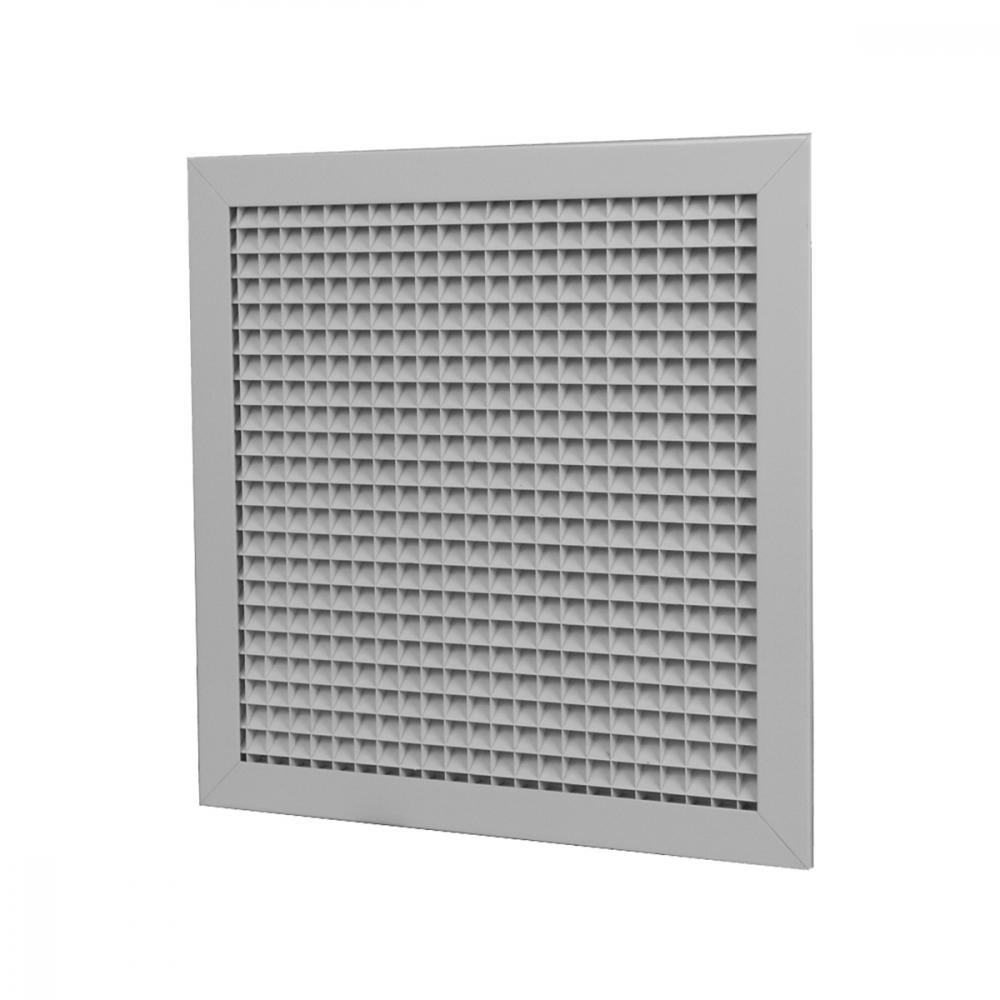

Eff crate grilles 13x13 mm pitch, inclined of 45° for false ceilings 595x595 overall size.

CONSTRUCTION:

Anodized aluminium.

UTILIZATION:

For false ceilings installation and for air intake.

FIXING:

• Fixing by using clips or frontal screws on demand.

ACCESSORIES:

• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.

Dimensions

GMAI60

GMAI60P

GMAI

CHOICE AND SIZING

Mod.	Ak [m2]	Q [m3/h]		LWA [dB(A)]		Dpt [Pa]
Mod.	Ak [m2]	min	max	min	max	min	max
GMAI60 GMAI60P	0,2375	2640	5210	41	60	5	20

Accessories and configurations

PDZ1

PDZ2

PDZI1

Plenum externally insulated thickness 6 mm

PDZI2

Plenum externally insulated thickness 6 mm

Specifications text

SQUARE MESH ALUMINIUM GRILLE INCLINED 45° 13X13 MM. EXTERNAL DIMENSION 595X595 MM

CONSTRUCTION:
Aluminium.
USE:
False ceiling installation, for air intake.
INSTALLATION:
• Fixing with clips or on request with front screws.
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
MODEL: GMAI60 595 x 595 (Width x Height mm)

Documents download

GMAI60
