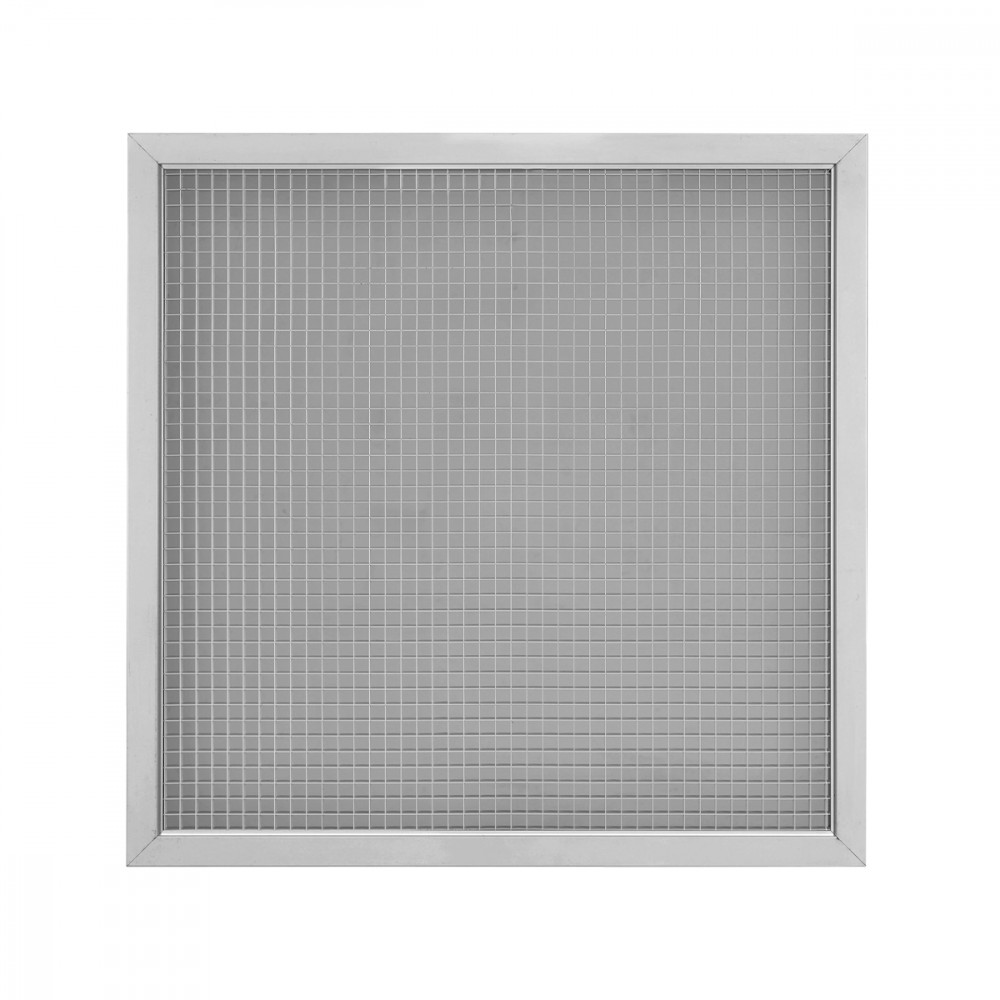

GMA60
CHARACTERISTICS:
Egg crate grilles 13x13 mm pitch for false ceilings 595x595 overall size. CONSTRUCTION:
Anodized aluminium. UTILIZATION:
For false ceilings installation and for air intake. FIXING:
• Fixing by using clips or frontal screws on demand. ACCESSORIES:
• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.
Dimensions
CHOICE AND SIZING
|
Mod. |
Ak [m2] |
Q [m3/h] |
LWA [dB(A)] |
Dpt [Pa] |
|||
|
min |
max |
min |
max |
min |
max |
||
|
GMA60 GMA60P |
0,2639 |
3140 |
6190 |
33 |
53 |
5 |
20 |
Accessories and configurations
PDZ1
PDZ2
PDZI1
Plenum externally insulated thickness 6 mm
PDZI2
Plenum externally insulated thickness 6 mm
Specifications text
SQUARE MESH ALUMINIUM GRILLE 13X13 MMEXTERNAL DIMENSION 595X595 MM
CONSTRUCTION:
Anodised aluminium.
USE:
False ceiling installation, for air intake.
INSTALLATION:
• Fixing with clips or on request with front screws.
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
MODEL: GMA60 595 x 595 (Width x Height mm)
