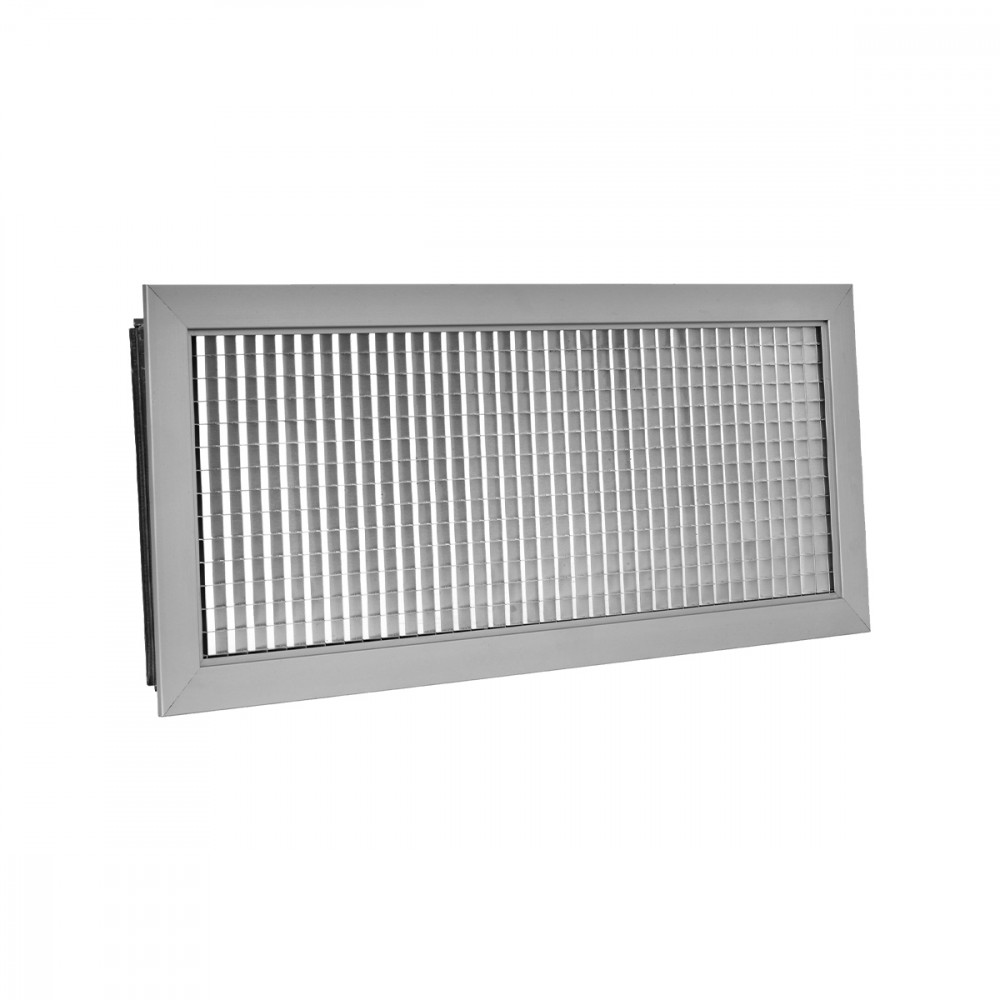

GRILLES

GMA

CHARACTERISTICS:
Egg crate grilles 13x13 mm pitch.
CONSTRUCTION:
Anodized aluminium. Square-grid inclined of 45° on model GMA-I.
UTILIZATION:
For wall installation and for air intake.
FIXING:
• Standard fixing by clips.
• Holes for screws upon request.
• Magnets on request (CL).
• Lock upon request (KC).
ACCESSORIES:
• Galvanized steel plenum, standard or insulated.
• Calibration damper made of galvanized steel and fins with opposite movement.
• Mounting counterframes made of galvanized steel sheet.
CHOICE AND SIZING

Mod.

Ak [m2]

Q [m3/h]

LWA [dB(A)]

Dpt [Pa]

min

max

min

max

min

max

GMA 200x100

0,0111

140

270

-

38

5

20

GMA 300x100

0,0176

220

430

22

41

5

20

GMA 400x100

0,0245

300

590

23

42

5

20

GMA 500x100

0,0316

390

760

24

43

5

20

GMA 600x100

0,0390

480

940

25

44

5

20

GMA 800x100

0,0542

660

1300

26

46

5

20

GMA 1000x100

0,0700

850

1670

27

47

5

20

GMA 1200x100

0,0863

1040

2060

28

48

5

20

GMA 200x150

0,0176

220

430

22

41

5

20

GMA 300x150

0,0280

340

680

23

43

5

20

GMA 400x150

0,0390

480

940

25

44

5

20

GMA 500x150

0,0504

610

1210

26

45

5

20

GMA 600x150

0,0621

750

1490

27

46

5

20

GMA 800x150

0,0863

1040

2060

28

48

5

20

GMA 1000x150

0,1115

1340

2650

29

49

5

20

GMA 1200x150

0,1374

1650

3250

30

50

5

20

GMA 200x200

0,0245

300

590

23

42

5

20

GMA 300x200

0,0390

480

940

25

44

5

20

GMA 400x200

0,0542

660

1300

26

46

5

20

GMA 500x200

0,0700

850

1670

27

47

5

20

GMA 600x200

0,0863

1040

2060

28

48

5

20

GMA 800x200

0,1201

1440

2850

30

49

5

20

GMA 1000x200

0,1550

1860

3660

31

50

5

20

GMA 1200x200

0,1911

2280

4500

32

51

5

20

GMA 200x300

0,0390

480

940

25

44

5

20

GMA 300x300

0,0621

750

1490

27

46

5

20

GMA 400x300

0,0863

1040

2060

28

48

5

20

GMA 500x300

0,1115

1340

2650

29

49

5

20

GMA 600x300

0,1374

1650

3250

30

50

5

20

GMA 800x300

0,1911

2280

4500

32

51

5

20

GMA 1000x300

0,2468

2940

5790

33

52

5

20

GMA 1200x300

0,3042

3610

7110

34

53

5

20

GMA 200x400

0,0542

660

1300

26

46

5

20

GMA 300x400

0,0863

1040

2060

28

48

5

20

GMA 400x400

0,1201

1440

2850

30

49

5

20

GMA 500x400

0,1550

1860

3660

31

50

5

20

GMA 600x400

0,1911

2280

4500

32

51

5

20

GMA 800x400

0,2657

3160

6230

33

53

5

20

GMA 1000x400

0,3432

4070

8010

34

54

5

20

GMA 1200x400

0,4230

5000

9850

35

55

5

20

GMA 200x500

0,0700

850

1670

27

47

5

20

GMA 300x500

0,1115

1340

2650

29

49

5

20

GMA 400x500

0,1550

1860

3660

31

50

5

20

GMA 500x500

0,2002

2390

4710

32

51

5

20

GMA 600x500

0,2468

2940

5790

33

52

5

20

GMA 800x500

0,3432

4070

8010

34

54

5

20

GMA 1000x500

0,4433

5240

10310

35

55

5

20

GMA 1200x500

0,5463

6430

12670

36

56

5

20

GMA 200x600

0,0863

1040

2060

28

48

5

20

GMA 300x600

0,1374

1650

3250

30

50

5

20

GMA 400x600

0,1911

2280

4500

32

51

5

20

GMA 500x600

0,2468

2940

5790

33

52

5

20

GMA 600x600

0,3042

3610

7110

34

53

5

20

GMA 800x600

0,4230

5000

9850

35

55

5

20

GMA 1000x600

0,5463

6430

12670

36

56

5

20

GMA 1200x600

0,6733

7910

15570

37

57

5

20

GMA 200x800

0,1201

1440

2850

30

49

5

20

GMA 300x800

0,1911

2280

4500

32

51

5

20

GMA 400x800

0,2657

3160

6230

33

53

5

20

GMA 500x800

0,3432

4070

8010

34

54

5

20

GMA 600x800

0,4230

5000

9850

35

55

5

20

GMA 800x800

0,5883

6920

13630

37

56

5

20

GMA 1000x800

0,7597

8910

17540

38

57

5

20

GMA 1200x800

0,9363

10940

21550

39

58

5

20

GMA 595x595EC

0,2639

3140

6190

33

53

5

20

Accessories and configurations

PBZ1

PBZ2

PBZI1

Plenum externally insulated thickness 6 mm



PBZI2

Plenum externally insulated thickness 6 mm


Specifications text

SQUARE MESH ALUMINIUM GRILLE 13X13 MM

CONSTRUCTION:
Aluminium. Square mesh inclined at 45° for the GMA-I model.
USE:
On the wall, for intake.
INSTALLATION:
• Standard fixing with clips.
• Holes for screws on request.
• Magnets on request (CL).
• Clamps on request (KC).
ACCESSORIES:
• Standard or insulated galvanised steel plenum.
• Volume control damper in galvanised steel with opposed blades.
• Mounting counter-frame in galvanised steel sheet.
MODEL: GMA*/*** x *** (Width x Height mm)
